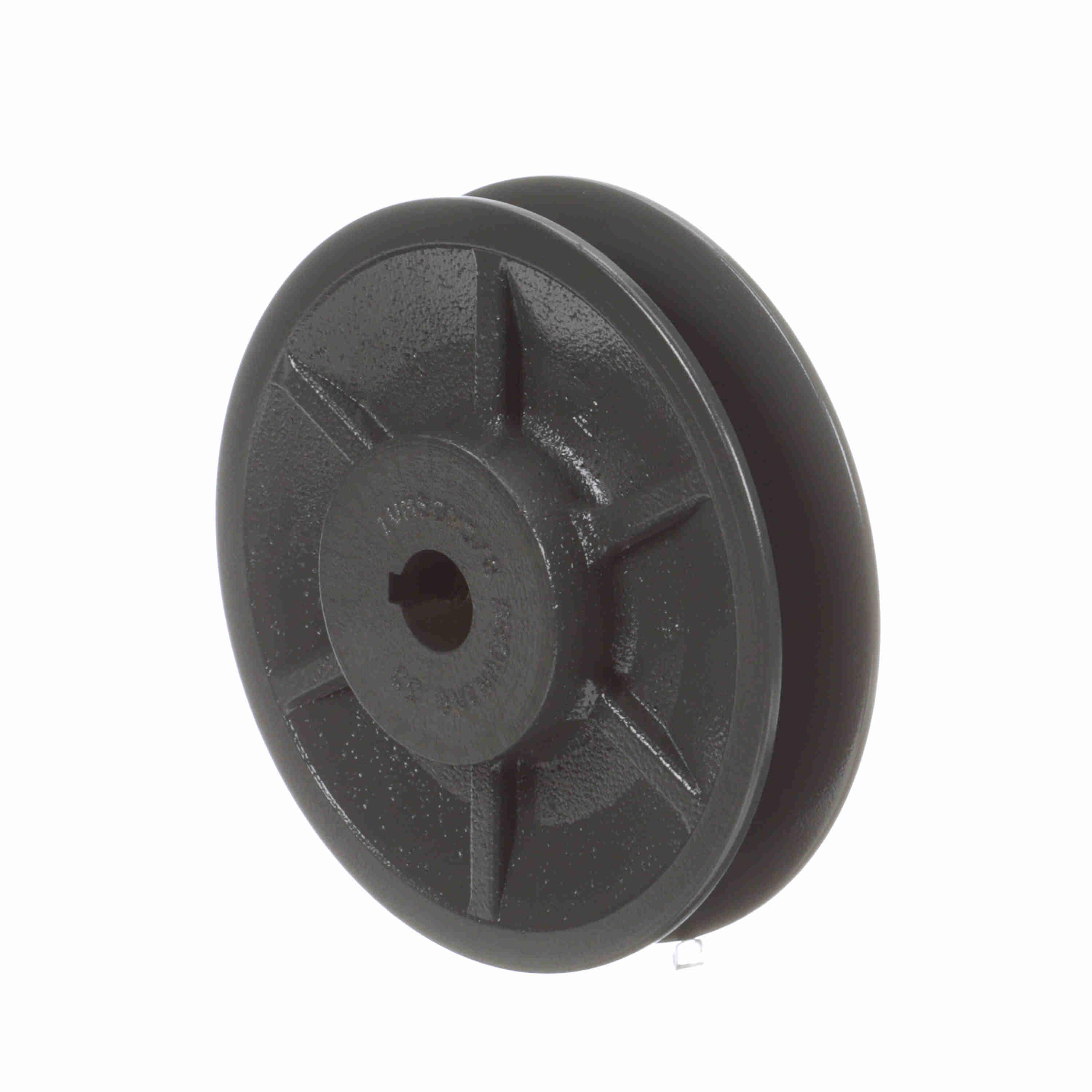

BROWNING 1046473 1VM50X5/8 V-Belt Sheave, Variable Pitch, Finish Bore, 1 Groove, Cast Iron
Item: BA6JVNModel: 1046473Cross Ref: 1VM50X5/8
7 In Stock
Ships within 2 days via
€95.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | 3L, 4L, A, 5L, B Series |
| Bore Dia. | 5/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 11/16" to 1 1/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 1.063" |
| Max. Pitch Dia. | 4.7" |
| Min. Belt Width | 3/8" |
| Min. Face Width | 0.688" |
| Min. Pitch Dia. | 3.3" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 4 3/4" |
| Overall Length | 1 15/16" |
| Pitch Dia. (3l) | 3.3" to 4.1" |
| Pitch Dia. (4l/a) | 3 3/5" to 4 3/5" |
| Pitch Dia. (5l/b) | 3 4/5" to 4 4/5" |
| Series | VM Series |
| Suitable For Use With | Gripbelt 3L, 4L/A And 5L/B Cross Section FHP V-Belt |
| System Of Measurement | Imperial |
| Weight | 0.86 Kg |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 4.93 |
| Ship width (cm) | 12.07 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Face Width | Bore Type | Material | Outside Dia. | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |

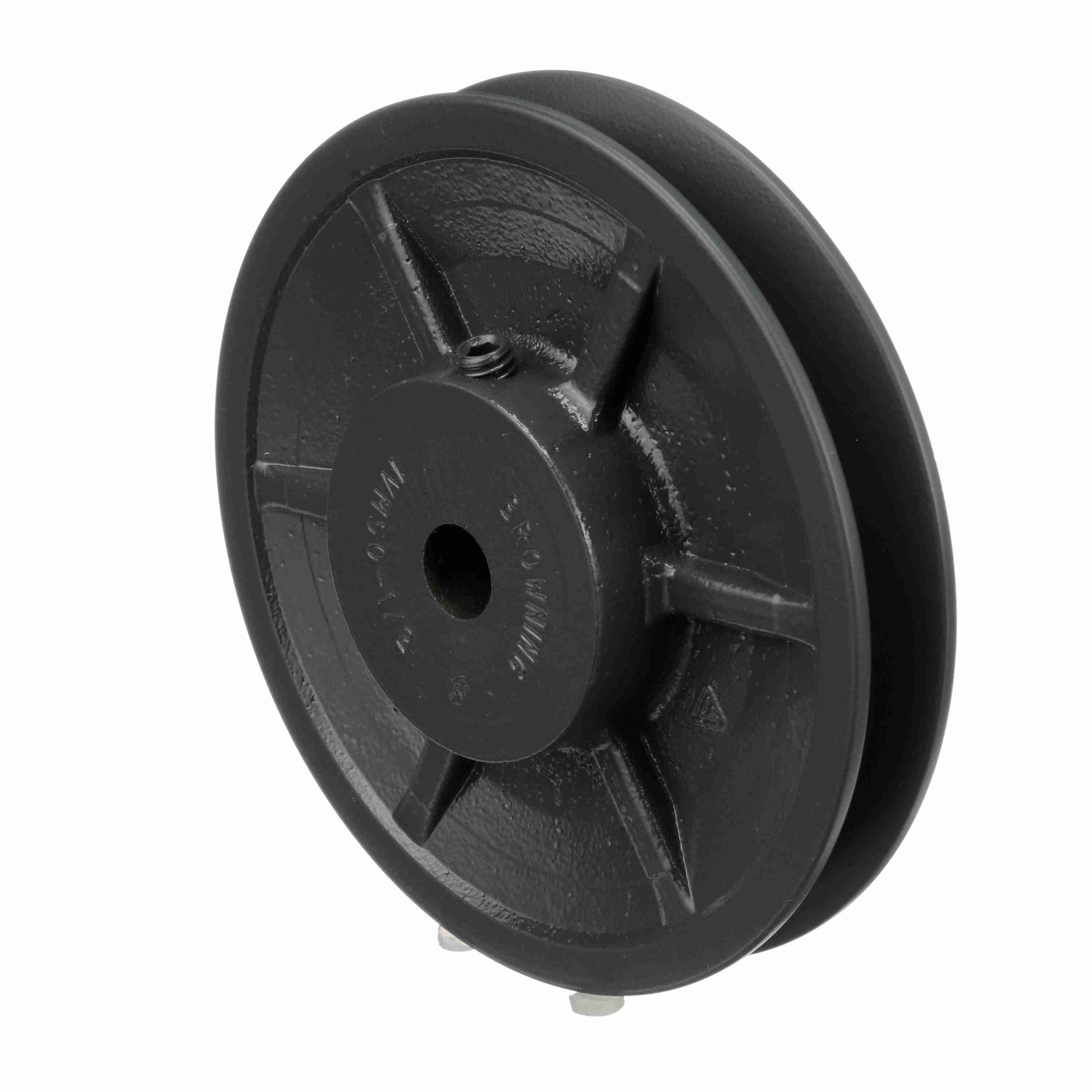

1046465 | 1/2" | 11/16" to 1 1/16" | Finished | Cast Iron | 4 3/4" | 1 15/16" | €106.58 | |
 |

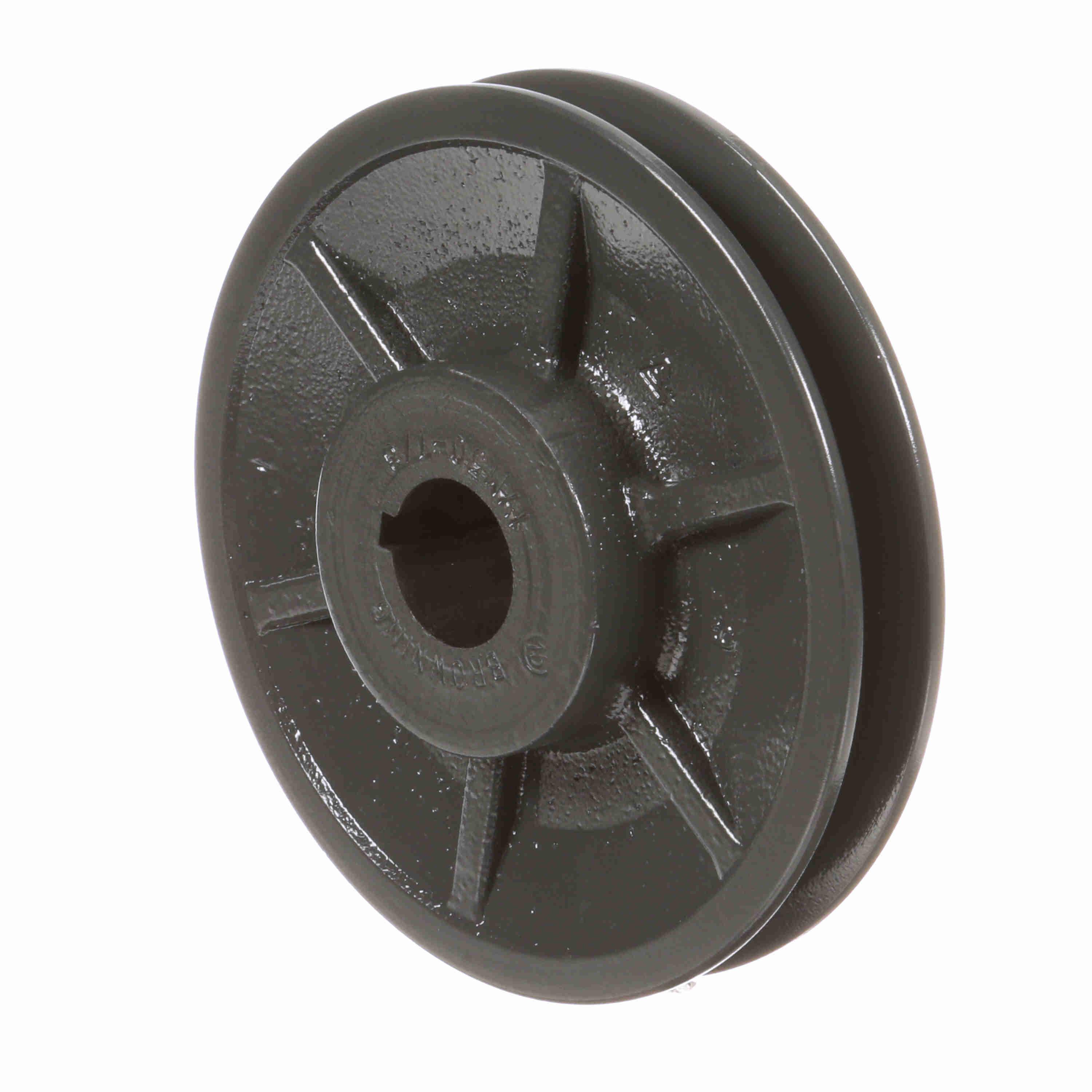

1046499 | 7/8" | 11/16" to 1 1/16" | Finished | Cast Iron | 4 3/4" | 1 15/16" | €136.57 | |
 |
1VM50X7/8 BULK | 7/8" | 0.688" to 1.063" | Finished | Cast Iron | 4 3/4" | - | €85.86 | |
 |

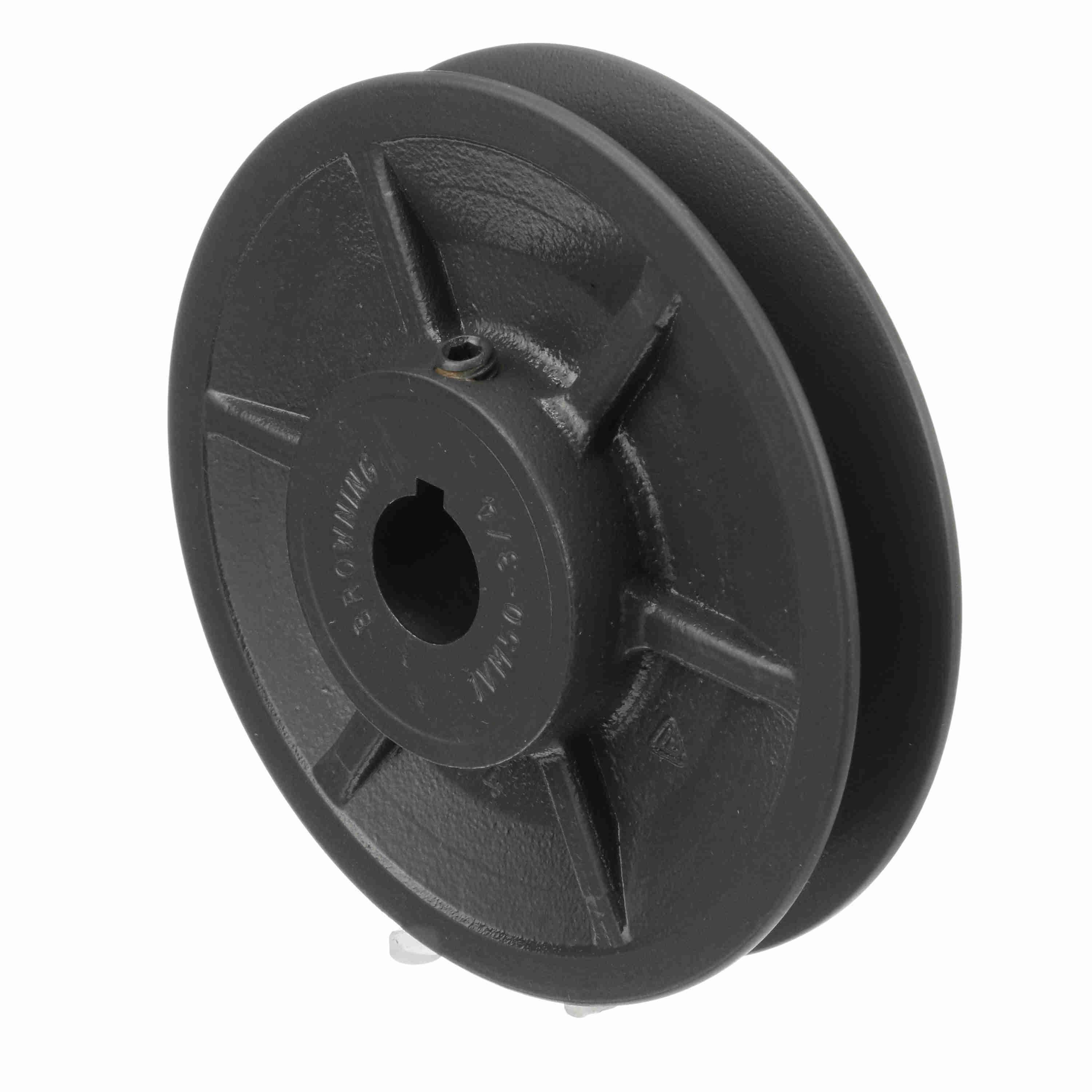

1046481 | 3/4" | 11/16" to 1 1/16" | Finished | Cast Iron | 4 3/4" | 1 15/16" | €144.71 | |
|
1VM50X5/8 BULK | 5/8" | 0.688" to 1.063" | Finished | Cast Iron | 4 3/4" | - | €85.86 | |
|
1VM50X3/4 BULK | 3/4" | 0.688" to 1.063" | Finished | Cast Iron | 4 3/4" | - | €131.19 | |
|
1VM50X1/2 BULK | 1/2" | 0.688" to 1.063" | Finished | Cast Iron | 4 3/4" | - | €139.08 |
