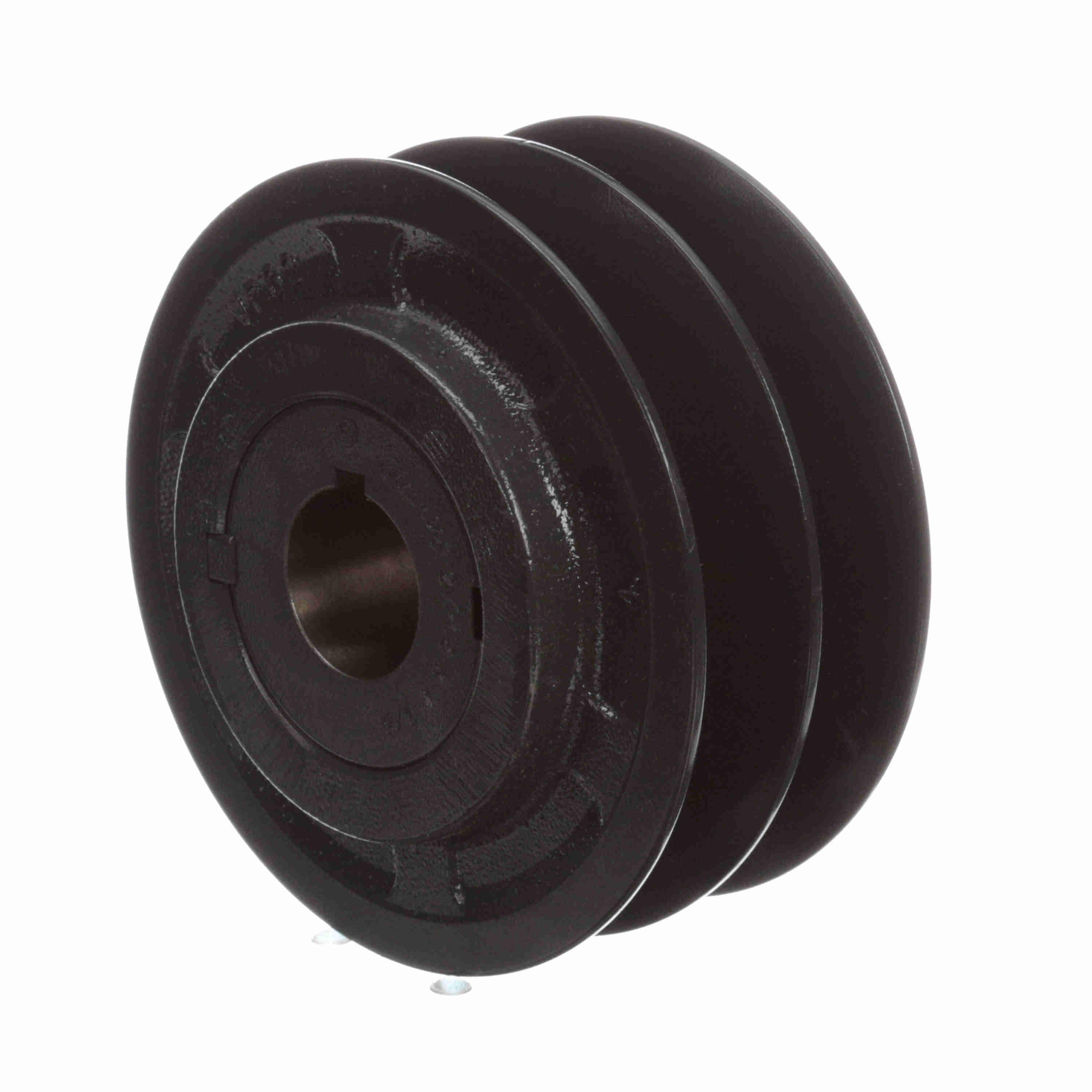

BROWNING 1046093 2VP62X 1 3/8 V-Belt Sheave, Variable Pitch, Finish Bore, 2 Groove, Cast Iron, 5.95 in OD, 1-3/8 in Bore Dia, 4.4 to 5.4 in 4L/A/4.7 to 5.9 in 5L/B/5V Pitch Dia
Item: BA2XAWModel: 1046093Cross Ref: 2VP62X 1 3/8
7 In Stock
Ships within 2 days via
€354.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | 3L, 4L, A, 5L, B, 5V Series |
| Bore Dia. | 1 3/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 5/8" to 2 3/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 2 1/8" |
| Max. Pitch Dia. | 6.3" |
| Min. Belt Width | 3/8" |
| Min. Face Width | 1 3/8" |
| Min. Pitch Dia. | 4 1/2" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 5.95" |
| Overall Length | 3 1/4" |
| Pitch Dia. (4l/a) | 4 2/5" to 5 2/5" |
| Pitch Dia. (5l/b/5v) | 4.7" to 5.9" |
| Product Datasheet | browning-1046317.pdf |
| Series | VP Series |
| Suitable For Use With | Gripbelt 4L/A, 5L/B And 5V Cross Section FHP V-Belt |
| System Of Measurement | Imperial |
| Type | Type 5 |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 15.11 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 15.11 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Bore Type | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1045822 | Finished | 3.35" | 3/4" | 1 3/8" to 2" | 3" | Type 4 | Cast Iron | €458.22 | |
 |
1045905 | Finished | 4 3/4" | 5/8" | 1 3/8" to 2 1/8" | 3" | Type 5 | Cast Iron | €357.17 | |
 |
1046176 | Finished | 6.55" | 1 1/4" | 1 5/8" to 2 3/8" | 3 1/4" | Type 5 | Cast Iron | €956.49 | |
 |
2777647 | Finished | 8 1/2" | 1 7/8" | 1 5/8" to 2 3/8" | 3.3" | - | Cast Iron | €773.97 | |
 |
1046036 | Finished | 6" | 1 3/8" | 1 5/8" to 2 3/8" | 3 1/4" | Type 5 | Cast Iron | €353.99 | |
 |
1046135 | Finished | 6 1/2" | 1 3/8" | 1 5/8" to 2 3/8" | 3 1/4" | Type 5 | Cast Iron | €325.48 | |
 |
1045947 | Finished | 4 3/4" | 1 1/8" | 1 3/8" to 2 1/8" | 3" | Type 5 | Cast Iron | €235.49 |
