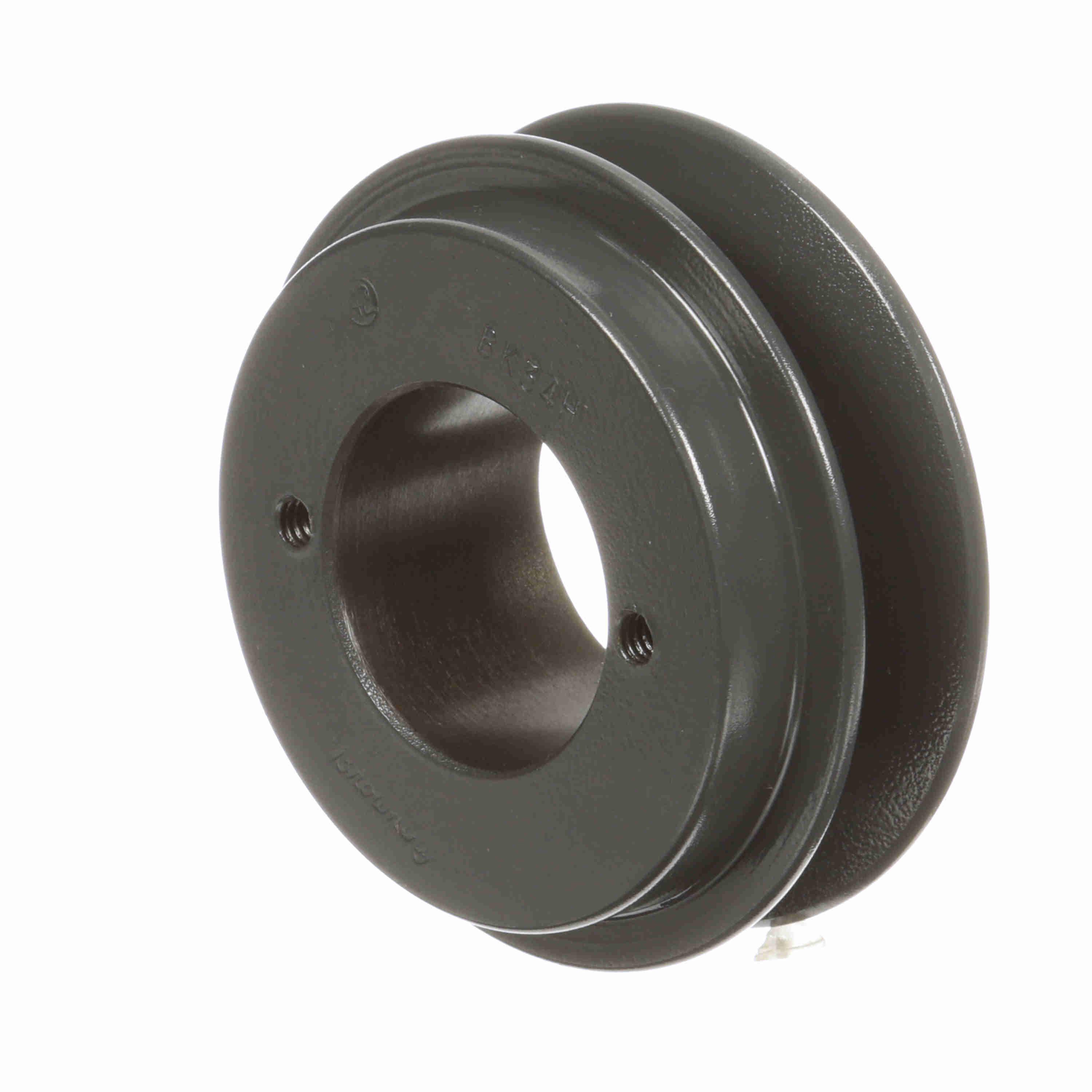

BROWNING 1042407 BK34H V-Belt Sheave, Bushed, 1 Groove, Cast Iron
Item: BA3DBVModel: 1042407Cross Ref: BK34H
7 In Stock
3.55"
3/8" to 1 1/2"
Ships within 2 days via
€88.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 4L, A, 5L, B Series |
| Bore Dia. | 3/8" to 1 1/2" |
| Bore Type | Split Taper |
| Bushing Type | H |
| Color | Gray |
| Face Width | 7/8" |
| Finish | Painted |
| Hub Projection | 29/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 3 1/5" |
| Min. Pitch Dia. | 2 4/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 3.55" |
| Overall Length | 1 15/16" |
| Pitch Dia. (a) | 3" |
| Pitch Dia. (b) | 3 1/2" |
| Series | BK Series |
| Suitable For Use With | 4L/A And 5L/B Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Type 1 |
Shipping Info:
| Ship weight (kg) | 0.76 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 9.65 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Bore Type | Overall Length | Face Width | Type | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1028026 | 3.15" | 7/8" | Finished | 1 7/32" | 13/16" | Type 2 | Cast Iron | - | €56.01 | |
 |
1028000 | 3.15" | 5/8" | Finished | 1 7/32" | 13/16" | Type 2 | Cast Iron | - | €56.01 | |
 |
1027853 | 2 1/2" | 7/8" | Finished | 1 7/32" | 13/16" | Type 1 | Cast Iron | - | €57.02 | |
 |
1027838 | 2 1/2" | 5/8" | Finished | 1 7/32" | 13/16" | Type 1 | Cast Iron | - | €57.02 | |
 |
1027796 | 2 2/5" | 1/2" | Finished | 1 7/32" | 13/16" | Type 1 | Cast Iron | - | €70.41 | |
 |
1027820 | 2 1/2" | 1/2" | Finished | 1 7/32" | 13/16" | Type 1 | Cast Iron | - | €67.22 | |
 |
1027960 | 2.95" | 5/8" | Finished | 1 7/32" | 13/16" | Type 2 | Cast Iron | - | €62.74 |
