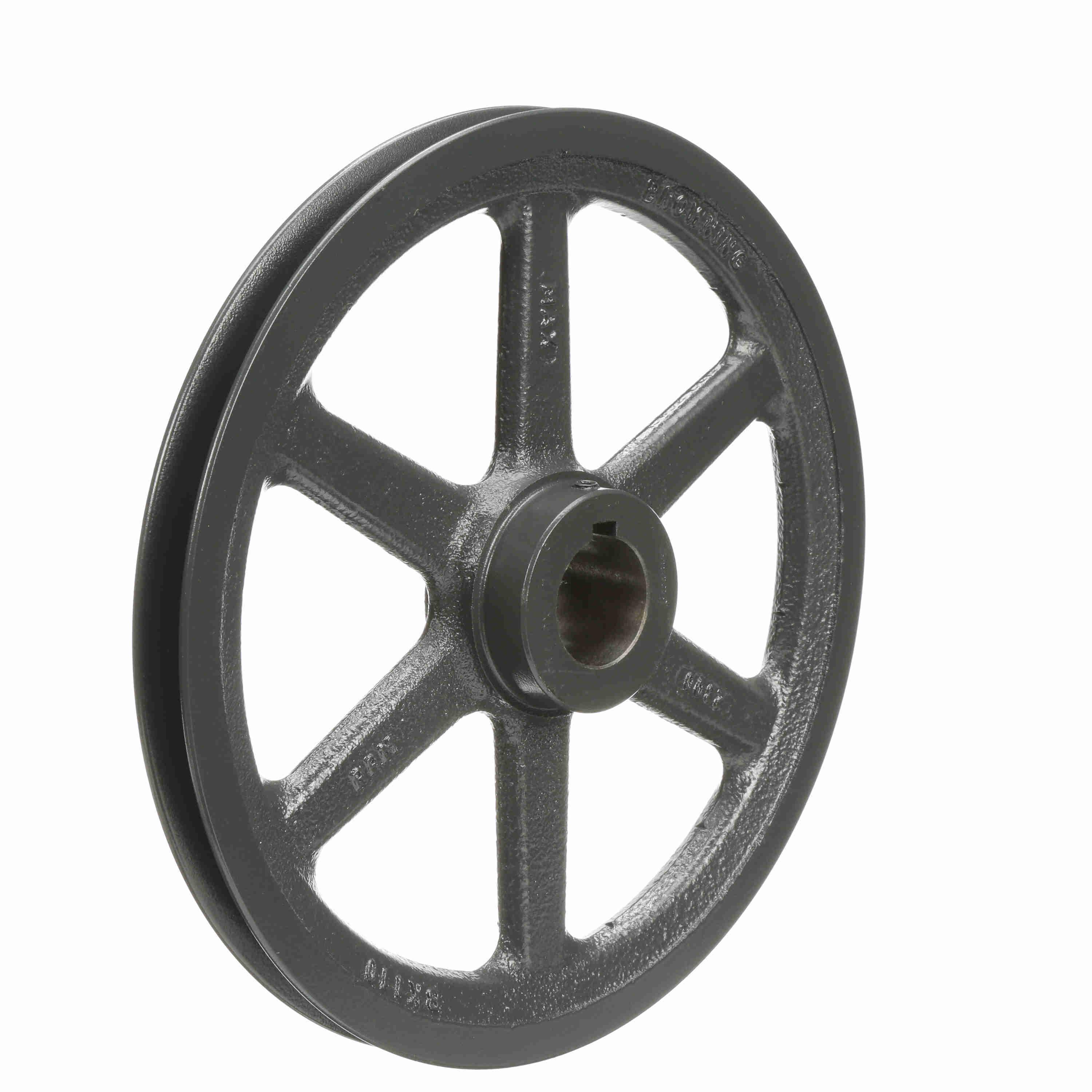

BROWNING 1029396 BK110X 1 7/16 V-Belt Sheave, Finish Bore, 1 Groove, Cast Iron
Item: BA2GMYModel: 1029396Cross Ref: BK110X 1 7/16
7 In Stock
10 3/4"
1 7/16"
Ships within 2 days via
€270.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 4L, A, 5L, B Series |
| Bore Dia. | 1 7/16" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 7/8" |
| Hub Projection | 21/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 10 2/5" |
| Min. Pitch Dia. | 10" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 10 3/4" |
| Overall Length | 1 17/32" |
| Pitch Dia. (a) | 10 1/5" |
| Pitch Dia. (b) | 10.7" |
| Series | BK Series |
| Suitable For Use With | 4L/A And 5L/B Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Type 3 |
| Weight | 2.91 Kg |
Shipping Info:
| Ship weight (kg) | 3.26 |
| Ship height (cm) | 27.31 |
| Ship length (cm) | 3.89 |
| Ship width (cm) | 27.31 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Bore Type | Overall Length | Face Width | Type | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1028869 | 6.45" | 1" | Finished | 1 9/32" | 7/8" | Type 3 | Cast Iron | - | €146.17 | |
 |
1029156 | 8 3/4" | 15/16" | Finished | 1 17/32" | - | Type 3 | Cast Iron | - | €377.27 | |
 |
2713824 | 3.35" | - | - | - | - | - | - | - | €135.20 | |
 |
1042423 | 3.95" | 3/8" to 1 1/2" | Split Taper | 1 1/2" | 7/8" | Type 1 | Cast Iron | Gray | €71.94 | |
 |
2713840 | 4 1/4" | - | - | - | - | - | - | - | €81.30 | |
 |
2739027 | 5 3/4" | - | - | - | - | - | - | - | €104.10 | |
 |
1042472 | 5 1/4" | 3/8" to 1 1/2" | Split Taper | 1 1/2" | 7/8" | Type 2 | Cast Iron | Gray | €86.30 |
