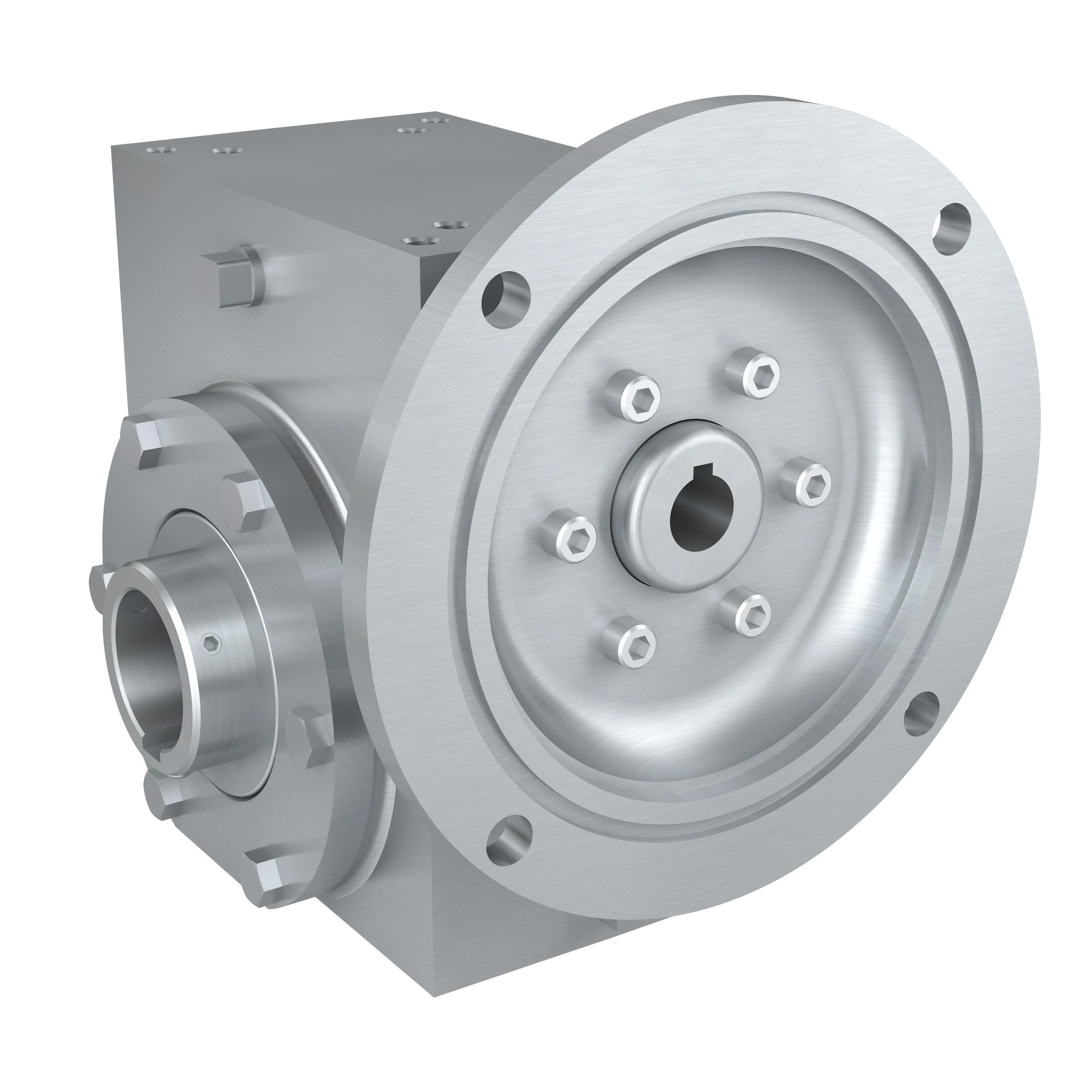

HUB CITY 0270-08321 Worm Reducer, 0.916 Hp, 1.125 Inch I.D, 0.875 Inch O.D, Stainless Steel
Get it by Thursday, Jul 2
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" Thru 3.25" , 2.1" |
| Frame Size | 140TC |
| Gear Type | Worm Right Angle |
| Height | 11 |
| Hp | 1/2 hp to 3/4 hp (Less Than 1 hp) |
| Input Dia. | 7/8" |
| Input Flange | 140TC |
| Input Hp | 0.916 hp |
| Input Style | Quill |
| Input Type | Motor Frame |
| Key Way Size | 3/16" x 3/32" |
| Length | 11 |
| Output | Hollow |
| Output Dia. | 1 1/8" |
| Output Shaft Direction | Left, Right |
| Output Speed | 43.75 RPM |
| Output Torque | 500 lbs.-in. to 1000 lbs.-in. |
| Output Torque Rating | 971 lbs.-in. |
| Output Type | Hollow Bore |
| Paint/coating | Stainless Steel |
| Ratio | 40:01:00 |
| Series | SSW210 Series |
| Service Factor | 1 |
| Style | A |
| Width | 9 |
Shipping Info:
| Ship weight (kg) | 13.5 |
Product Variants
| Product | Model | output torque | max. input hp | center distance | input style | ratio | frame size | output shaft | output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

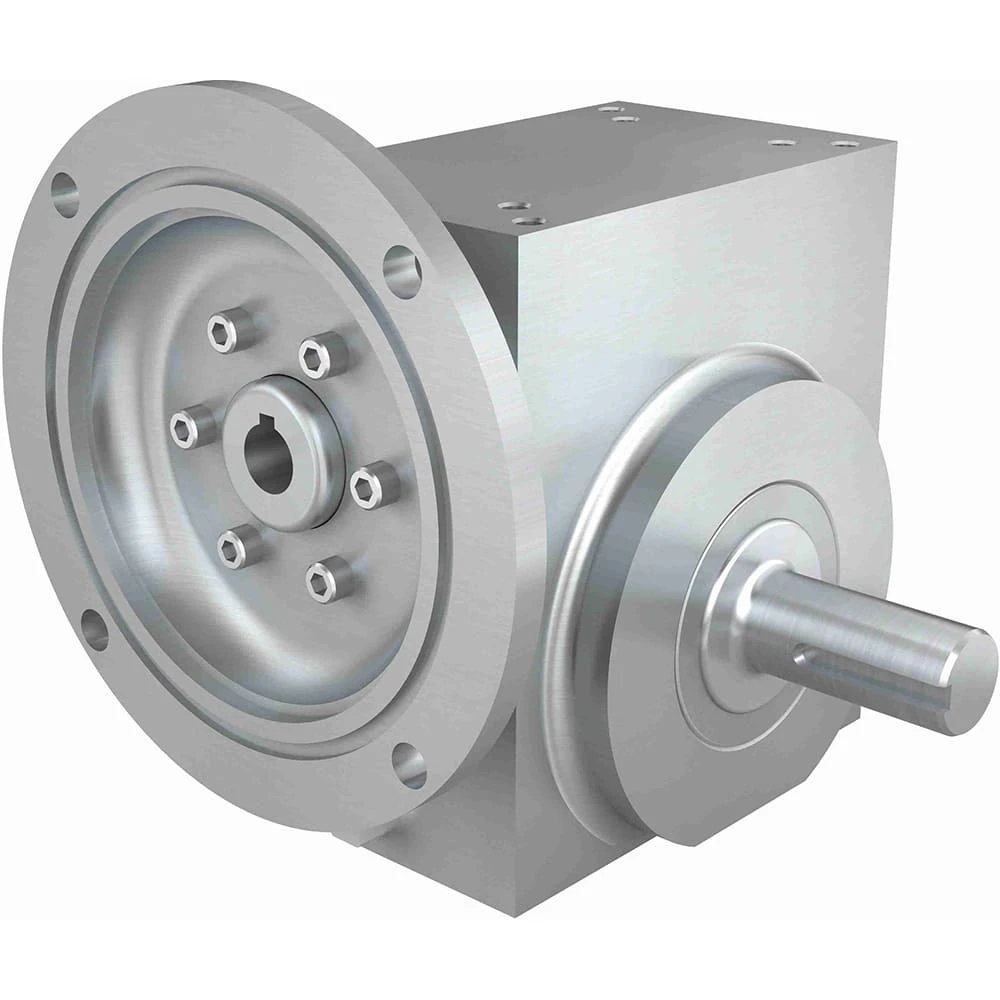

0270-08115 | 500 lbs.-in. to 1000 lbs.-in. | 1.333 hp | 2.06" | C Face Quill | 25:1 | 56C | Shaft | - | €1,856.46 | |
 |
0270-08119 | 500 lbs.-in. to 1000 lbs.-in. | 0.674 hp | 2.06" | C Face Quill | 60:1 | 56C | Shaft | - | €1,856.46 | |
 |

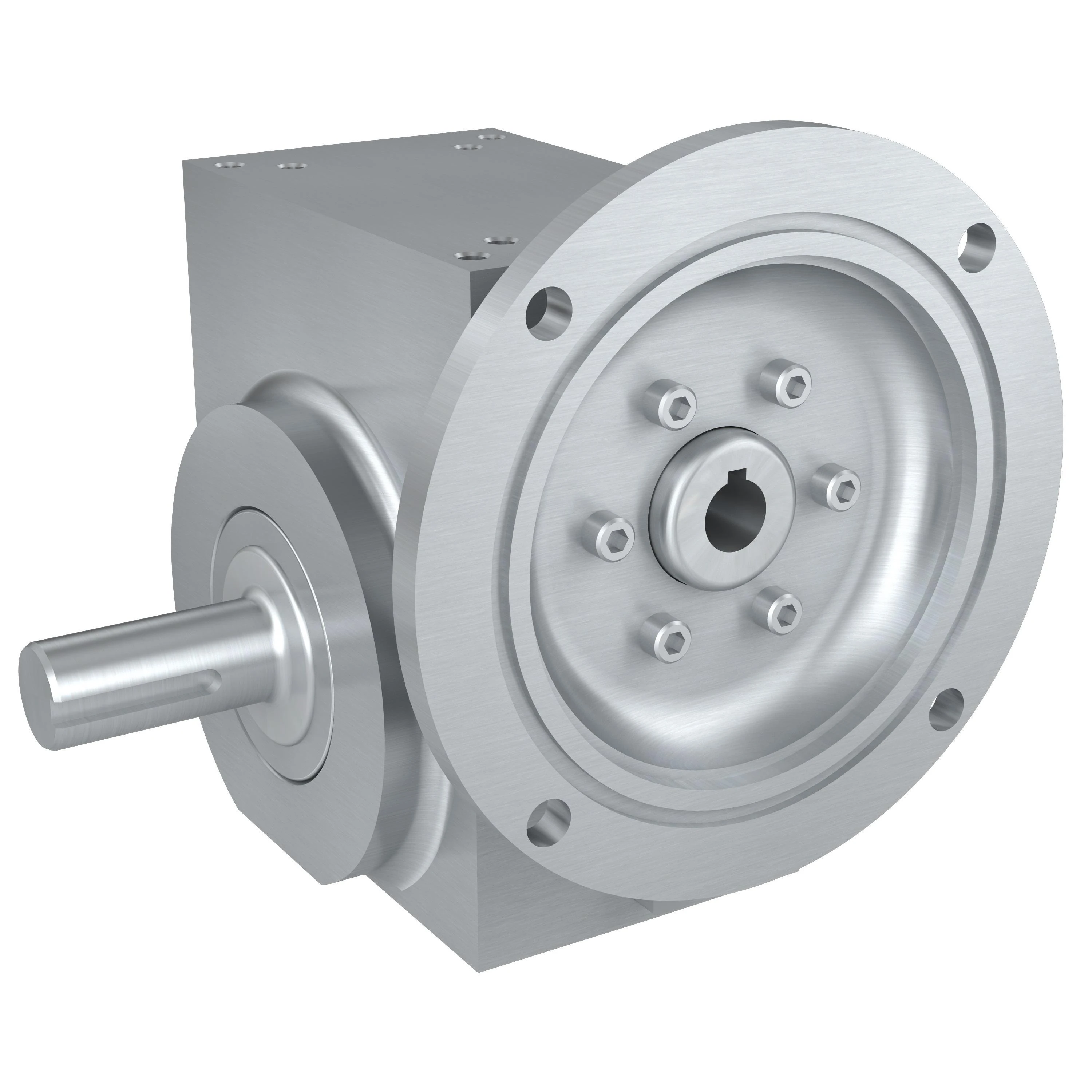

0270-08100 | 500 lbs.-in. to 1000 lbs.-in. | 2.464 hp | 2.06" | C Face Quill | 10:1 | 56C | Shaft | - | €1,856.46 | |
 |

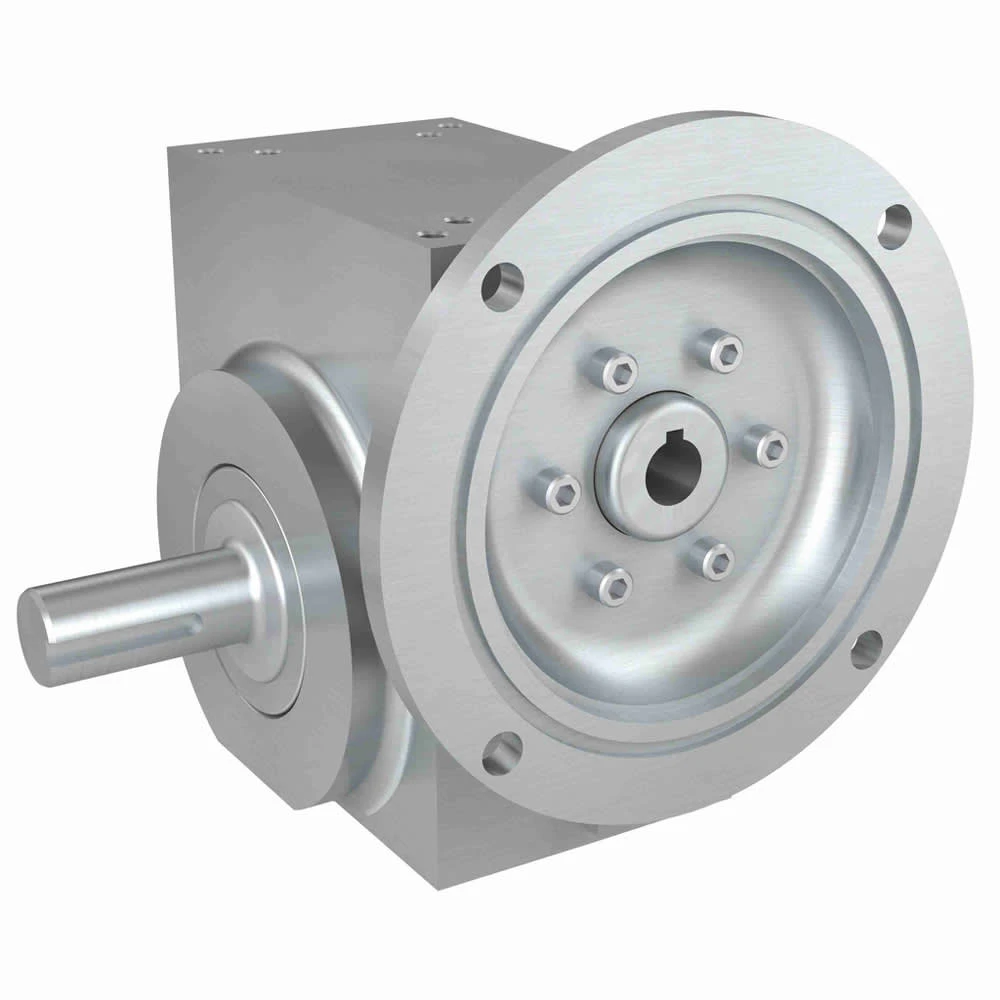

0270-08101 | 500 lbs.-in. to 1000 lbs.-in. | 1.887 hp | 2.06" | C Face Quill | 15:1 | 56C | Shaft | - | €1,856.46 | |
 |

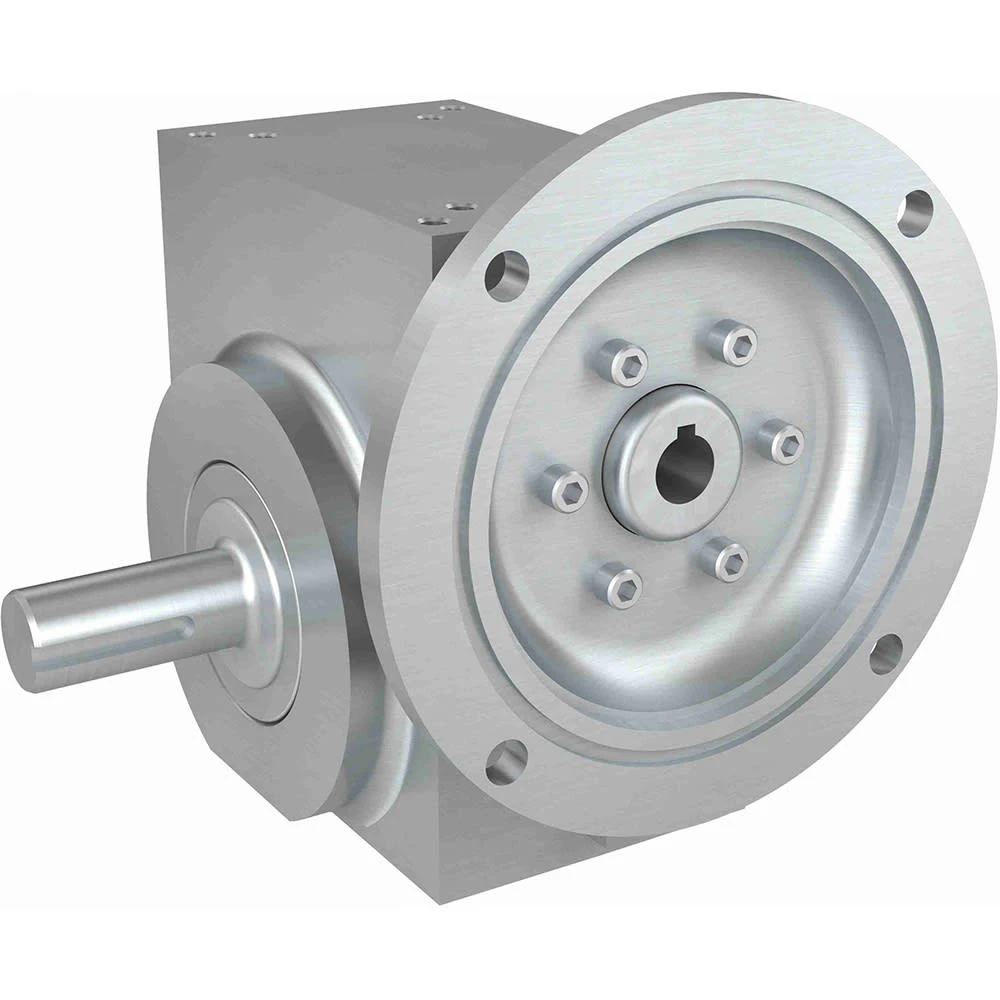

0270-08105 | 500 lbs.-in. to 1000 lbs.-in. | 0.916 hp | 2.06" | C Face Quill | 40:1 | 56C | Shaft | - | €1,856.46 | |
 |
0270-08106 | 500 lbs.-in. to 1000 lbs.-in. | 0.769 hp | 2.06" | C Face Quill | 50:1 | 56C | Shaft | - | €1,856.46 | |
 |
0270-08107 | 500 lbs.-in. to 1000 lbs.-in. | 0.674 hp | 2.06" | C Face Quill | 60:1 | 56C | Shaft | - | €1,856.46 |
