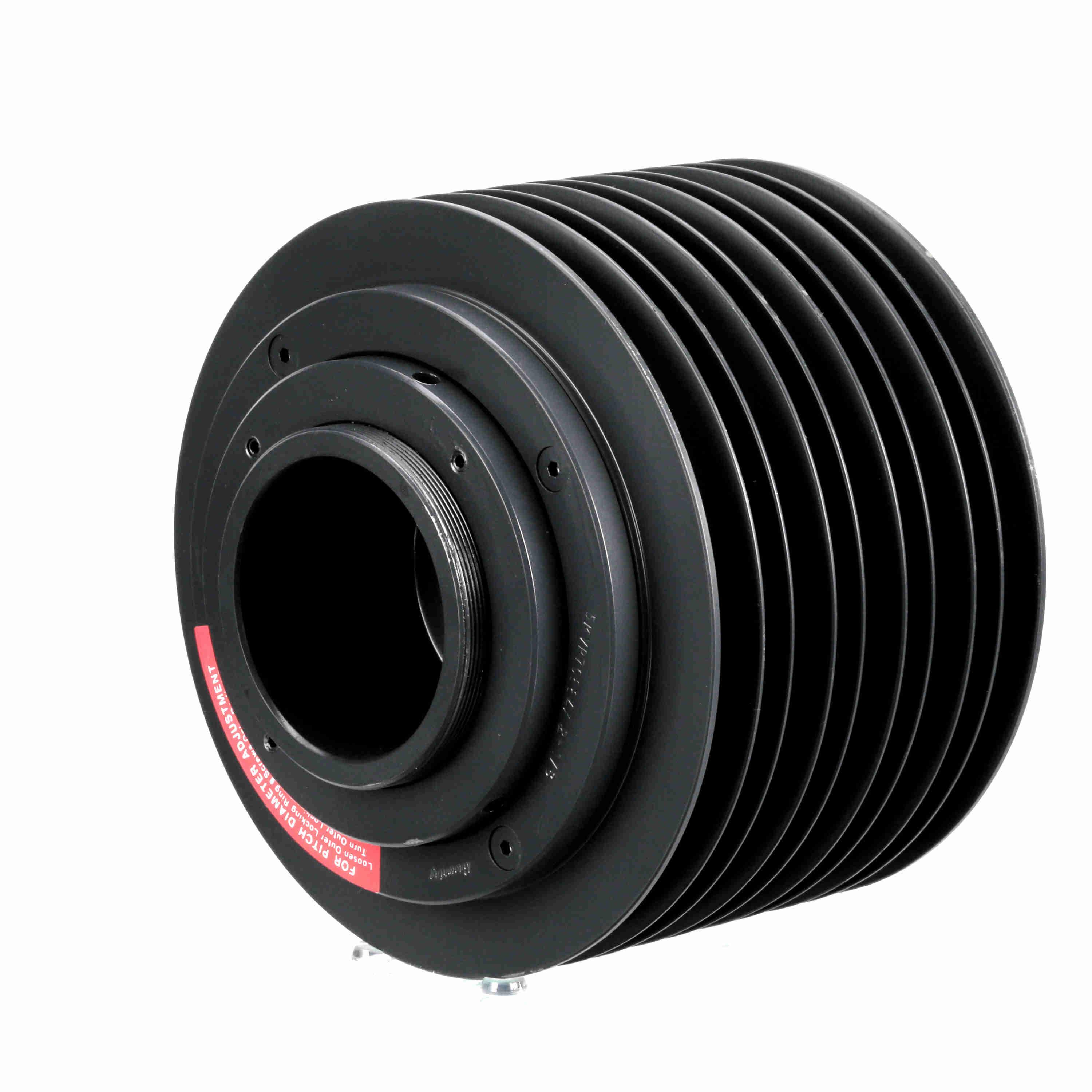

BROWNING 1020627 5MVP70B84X 2 1/8 V-Belt Sheave, Multiple, Variable Pitch, Finish Bore, 5 Groove, Cast Iron
8 17/25"
2 1/8"
Get it by Tuesday, Dec 23
€3,506.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | A, B Series |
| Bore Dia. | 2 1/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 5 5/16" to 5 11/16" |
| Hub Projection | 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 5.688" |
| Max. Pitch Dia. | 8 2/5" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 5.313" |
| Min. Pitch Dia. | 6.9" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 8 17/25" |
| Overall Length | 7" |
| Pitch Dia. (a) | 7.1" to 8.2" |
| Pitch Dia. (b) | 7.3" to 8.7" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Weight | 24.458 Kg |
Shipping Info:
| Ship weight (kg) | 23.88 |
| Ship height (cm) | 22.05 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 22.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Type | Outside Dia. | Bore Dia. | Face Width | Overall Length | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
1019967 | Finished | 5 17/25" | 1 7/8" | 5 5/16" to 5 11/16" | 7" | Cast Iron | €4,978.78 | |
|
1020403 | Finished | 7.18" | 2 1/8" | 5 5/16" to 5 11/16" | 7" | Cast Iron | €2,995.58 | |
|
1020494 | Finished | 7 17/25" | 1 7/8" | 5 5/16" to 5 11/16" | 7" | Cast Iron | €3,269.98 | |
 |
1020502 | Finished | 7 17/25" | 2 1/8" | 5 5/16" to 5 11/16" | 7" | Cast Iron | €2,994.49 | |
 |
1020601 | Bushed | 8 17/25" | 1 1/8" to 1 5/8" | 5 5/16" to 5 11/16" | 7" | Cast Iron | €6,415.69 | |
|
1020718 | Finished | 10.06" | 2 1/8" | 7 3/4" to 8 11/32" | 7" | Cast Iron | €8,505.13 | |
 |
1020106 | Finished | 6.18" | 1 5/8" | 5 5/16" to 5 11/16" | 7" | Cast Iron | €2,709.87 |
