BROWNING 1020577 4MVP70B84P V-Belt Sheave, Multiple, Variable Pitch, Bushed Bore, 4 Groove, Cast Iron
8 17/25"
Get it by Tuesday, Dec 23
€2,641.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | A, B Series |
| Bore Dia. | 1 1/8" to 1 5/8" |
| Bore Type | Bushed |
| Bushing Type | P3 |
| Face Width | 4 3/16" to 4 9/16" |
| Hub Projection | 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 4.563" |
| Max. Pitch Dia. | 8 2/5" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 4.188" |
| Min. Pitch Dia. | 6.9" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 8 17/25" |
| Overall Length | 5 7/8" |
| Pitch Dia. (a) | 7.1" to 8.2" |
| Pitch Dia. (b) | 7.3" to 8.7" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Weight | 20.904 Kg |
Shipping Info:
| Ship weight (kg) | 20.37 |
| Ship height (cm) | 22.05 |
| Ship length (cm) | 14.94 |
| Ship width (cm) | 22.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Bore Type | Face Width | Overall Length | Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1021047 | 12.03" | 1 3/8" to 2 1/2" | Bushed | 6 3/32" to 6 11/16" | 7 15/16" | - | Cast Iron | €3,919.16 | |
 |
1021179 | 13.06" | 1 3/8" to 2 1/2" | Bushed | 6 3/32" to 6 11/16" | 7 15/16" | - | Cast Iron | €9,791.60 | |
 |
1022094 | 9" | 1" to 2 5/8" | Bushed | 6 7/32" | 6 7/32" | Type 15 Web | Cast Iron | €1,786.63 | |
 |
1022128 | 9 2/5" | 1" to 2 5/8" | Bushed | 6 7/32" | 6 7/32" | Type 15 Web | Cast Iron | €4,596.74 | |
 |
1022441 | 18 2/5" | 1 3/8" to 3 5/8" | Bushed | 6 7/32" | 6 17/64" | Type 15 Arm | Cast Iron | €3,157.14 | |
|
1022292 | 12 2/5" | 1 3/8" to 3 5/8" | Bushed | 6 7/32" | 6 17/64" | Type 15 Arm | Cast Iron | €1,804.97 | |
 |

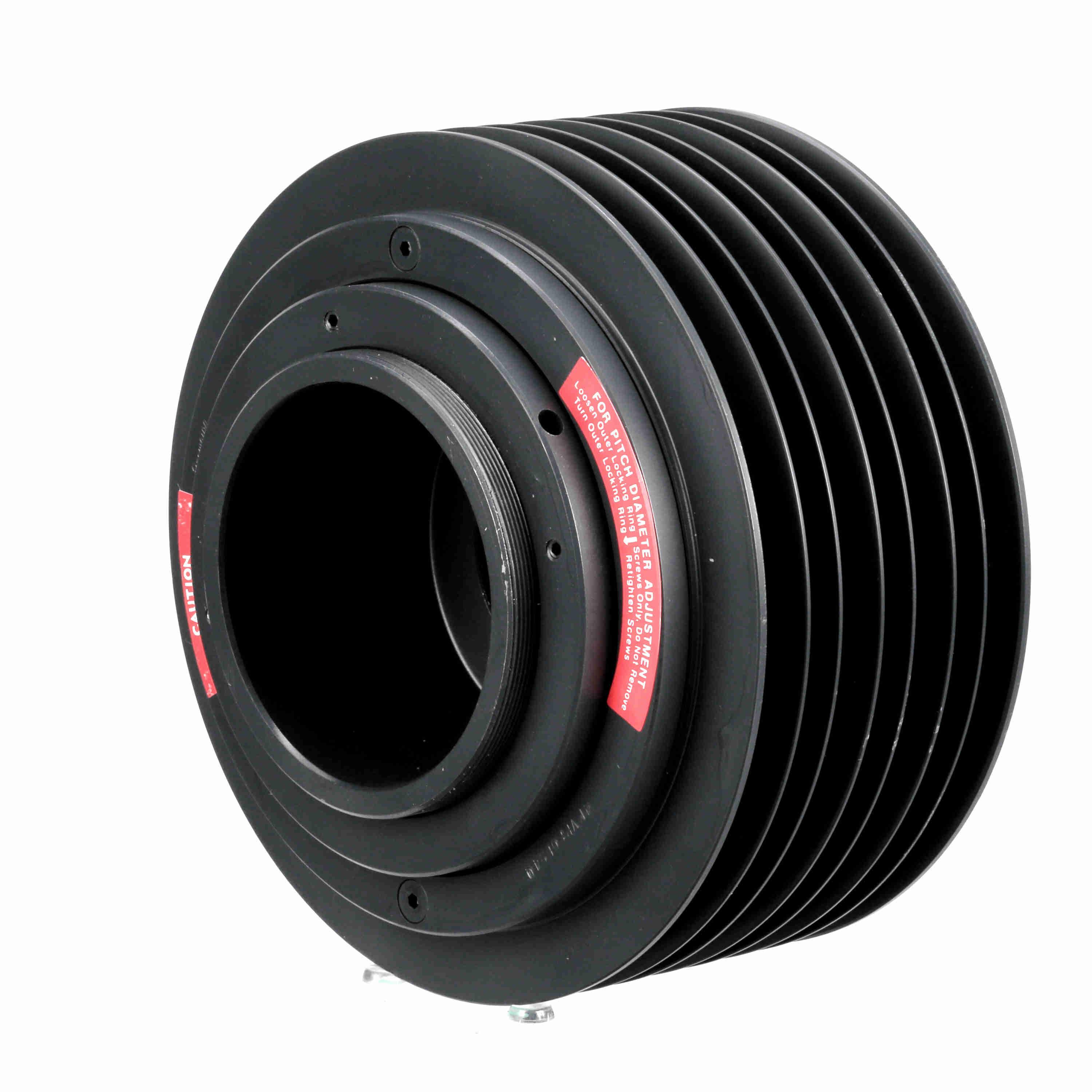

1020833 | 9 17/25" | 1" | Split Taper | 4 3/16" to 4 9/16" | 5 7/8" | - | Cast Iron | €2,305.91 |
