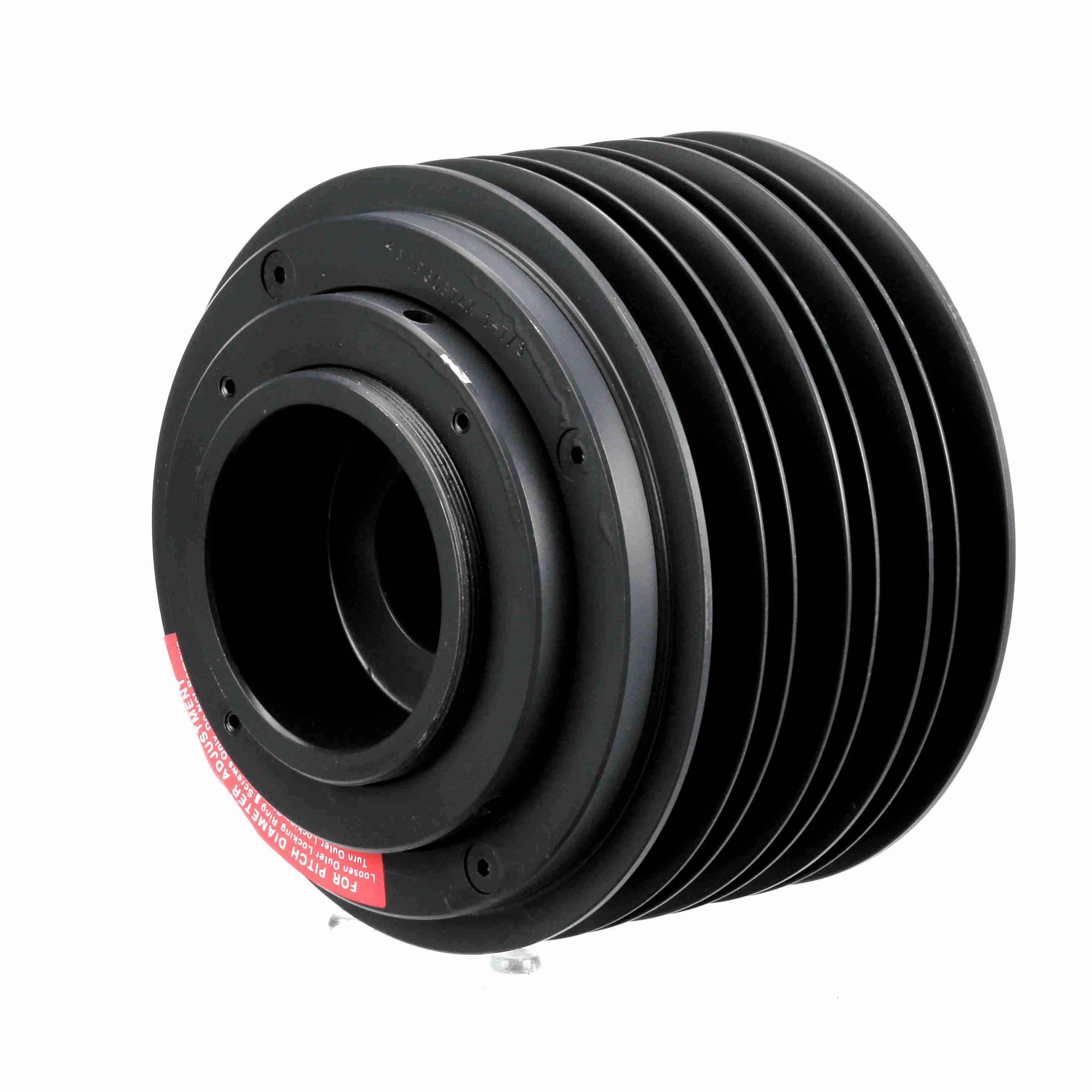

BROWNING 1020478 4MVP60B74X 1 7/8 V-Belt Sheave, Multiple, Variable Pitch, Finish Bore, 4 Groove, Cast Iron
Get it by Tuesday, Dec 23
€2,452.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | A, B Series |
| Bore Dia. | 1 7/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 4 3/16" to 4 9/16" |
| Hub Projection | 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 4.563" |
| Max. Pitch Dia. | 7 2/5" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 4.188" |
| Min. Pitch Dia. | 5.9" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 7 17/25" |
| Overall Length | 5 7/8" |
| Pitch Dia. (a) | 6.1" to 7.2" |
| Pitch Dia. (b) | 6.3" to 7.7" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Weight | 17.398 Kg |
Shipping Info:
| Ship weight (kg) | 16.94 |
| Ship height (cm) | 19.51 |
| Ship length (cm) | 14.94 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Type | Outside Dia. | Bore Dia. | Face Width | Material | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
1019926 | Finished | 5 17/25" | 1 3/8" | 4 3/16" to 4 9/16" | Cast Iron | 5 7/8" | €2,867.72 | |
 |
1020080 | Finished | 6.18" | 1 5/8" | 4 3/16" to 4 9/16" | Cast Iron | 5 7/8" | €2,096.14 | |
 |
1020239 | Finished | 6 17/25" | 1 5/8" | 4 3/16" to 4 9/16" | Cast Iron | 5 7/8" | €2,214.67 | |
|
1020353 | Finished | 7.18" | 1 3/8" | 4 3/16" to 4 9/16" | Cast Iron | 5 7/8" | €4,598.29 | |
 |
1020361 | Finished | 7.18" | 1 5/8" | 4 3/16" to 4 9/16" | Cast Iron | 5 7/8" | €2,398.01 | |
|
1019314 | Finished | 9 3/5" | 2 1/8" | 4 1/4" to 4 5/8" | Cast Iron | 5 7/8" | €6,899.42 | |
 |
1019439 | Finished | 10 3/5" | 2 3/8" | 4 1/4" to 4 5/8" | Cast Iron | 5 7/8" | €9,562.22 |
