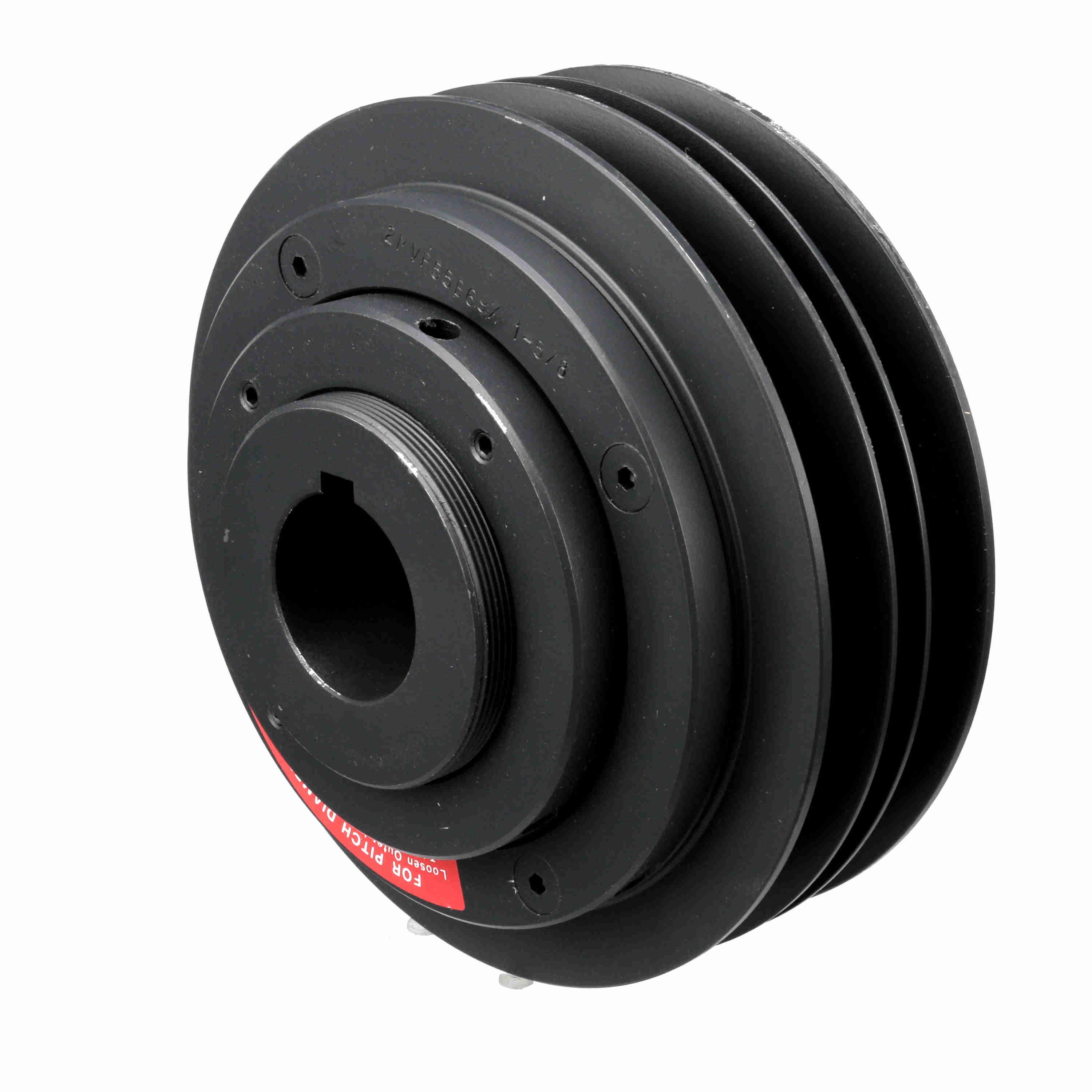

BROWNING 1020312 2MVP55B69X 1 5/8 V-Belt Sheave, Multiple, Variable Pitch, Finish Bore, 2 Groove, Cast Iron, 7.18 in OD, 1-5/8 in Bore Dia, 6.7 to 5.6 in A/7.2 to 5.8 in B Pitch Dia
Get it by Friday, Aug 14
€1,564.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | A, B Series |
| Bore Dia. | 1 5/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 1/16" to 1 15/16" |
| Hub Projection | 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 2.313" |
| Max. Pitch Dia. | 6.9" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 1.938" |
| Min. Pitch Dia. | 5 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 7.18" |
| Overall Length | 3 5/8" |
| Pitch Dia. | 5.6" to 6.7" |
| Pitch Dia. (b) | 5 4/5" to 7 1/5" |
| Product Datasheet | browning-1019868.pdf |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 8.53 |
| Ship height (cm) | 18.24 |
| Ship length (cm) | 9.22 |
| Ship width (cm) | 18.24 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Face Width | Belt Series | Max. Pitch Dia. | Min. Pitch Dia. | Bore Dia. | Min. Face Width | Min. Belt Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1020007 | 4.6" to 5.7" | 1 1/16" to 1 15/16" | A, B Series | 5.9" | 4 2/5" | 1 1/8" | 1.938" | 1/2" | €2,015.60 | |
 |
1020171 | 5.1" to 6.2" | 1 1/16" to 1 15/16" | A, B Series | 6 2/5" | 4.9" | 1 5/8" | 1.938" | 1/2" | €1,485.10 | |
 |
1020296 | 5.6" to 6.7" | 1 1/16" to 1 15/16" | A, B Series | 6.9" | 5 2/5" | 1 1/8" | 1.938" | 1/2" | €2,269.61 | |
 |
1021153 | 10.9" to 13.1" | 2 25/32" to 3 3/8" | C Series | 12.7" | 10 1/2" | 1" to 2 5/8" | 2.781" | 7/8" | €3,521.95 | |
 |
1020817 | 8.1" to 9.2" | 1 1/16" to 1 15/16" | A, B Series | 9 2/5" | 7.9" | 1" to 2 5/8" | 1.938" | 1/2" | €1,550.18 | |
 |
1020437 | 6.1" to 7.2" | 1 1/16" to 1 15/16" | A, B Series | 7 2/5" | 5.9" | 3/4" to 1 3/4" | 1.938" | 1/2" | €1,273.89 | |
 |
1020676 | 7.9" to 10.1" | 2 25/32" to 3 3/8" | C Series | 9.7" | 7 1/2" | 1" | 2.781" | 7/8" | €2,390.36 |
