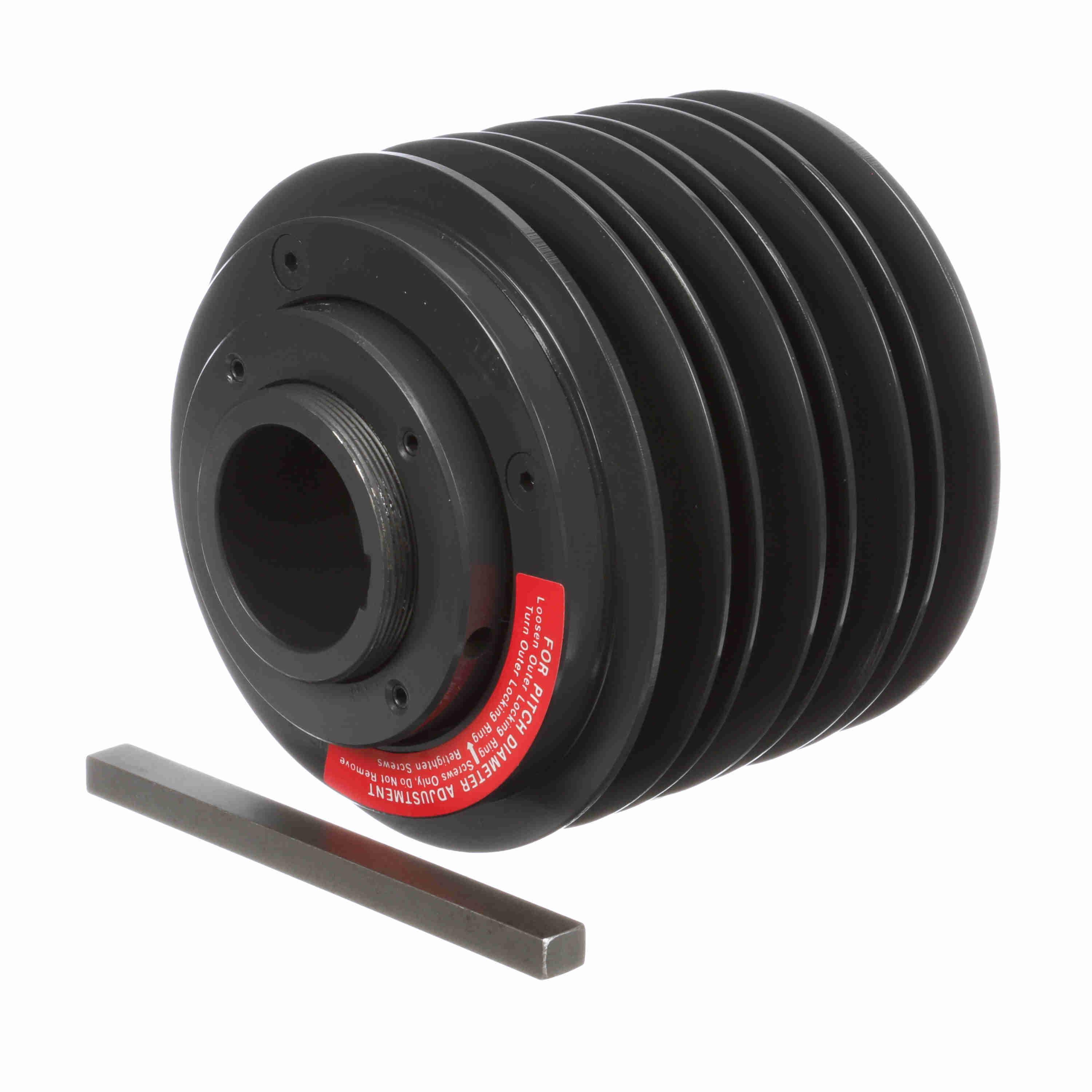

BROWNING 1020098 4MVP45B59X 1 7/8 V-Belt Sheave, Multiple, Variable Pitch, Finish Bore, 4 Groove, Cast Iron, 6.18 in OD, 1-7/8 in Bore Dia, 5.7 to 4.6 in A/6.2 to 4.8 in B Pitch Dia
Get it by Monday, Aug 17
€1,664.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | A, B Series |
| Bore Dia. | 1 7/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 4 3/16" to 4 9/16" |
| Hub Projection | 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 4.563" |
| Max. Pitch Dia. | 5.9" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 4.188" |
| Min. Pitch Dia. | 4 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 6.18" |
| Overall Length | 5 7/8" |
| Pitch Dia. | 4.6" to 5.7" |
| Pitch Dia. (b) | 4 4/5" to 6 1/5" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 9.48 |
| Ship height (cm) | 15.7 |
| Ship length (cm) | 14.94 |
| Ship width (cm) | 15.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Face Width | Bore Dia. | Belt Series | Max. Pitch Dia. | Min. Pitch Dia. | Bore Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1019926 | 4.1" to 5.2" | 4 3/16" to 4 9/16" | 1 3/8" | A, B Series | 5 2/5" | 3.9" | Finished | 1/4" | €2,867.72 | |
 |
1020080 | 4.6" to 5.7" | 4 3/16" to 4 9/16" | 1 5/8" | A, B Series | 5.9" | 4 2/5" | Finished | 1/4" | €2,096.14 | |
 |
1020239 | 5.1" to 6.2" | 4 3/16" to 4 9/16" | 1 5/8" | A, B Series | 6 2/5" | 4.9" | Finished | 1/4" | €2,214.67 | |
|
1020353 | 5.6" to 6.7" | 4 3/16" to 4 9/16" | 1 3/8" | A, B Series | 6.9" | 5 2/5" | Finished | 1/4" | €4,598.29 | |
 |
1020361 | 5.6" to 6.7" | 4 3/16" to 4 9/16" | 1 5/8" | A, B Series | 6.9" | 5 2/5" | Finished | 1/4" | €2,398.01 | |
|
1019314 | 8.1" to 9.5" | 4 1/4" to 4 5/8" | 2 1/8" | 5V Series | 9 1/2" | 8.1" | Finished | 7/32" | €6,899.42 | |
 |
1019439 | 9.1" to 10.5" | 4 1/4" to 4 5/8" | 2 3/8" | 5V Series | 10 1/2" | 9.1" | Finished | 7/32" | €9,562.22 |
