BROWNING 1013663 4C270R V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron
27 2/5"
1.13" to 3.75"
Get it by Tuesday, Dec 23
€2,859.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 1.13" to 3.75" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Type | R1 |
| Face Width | 4 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 27" |
| Min. Pitch Dia. | 27" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 27 2/5" |
| Overall Length | 4 9/32" |
| Pitch Dia. | 27 2/5" |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Arm |
| Weight | 110 lbs. |
Shipping Info:
| Ship weight (kg) | 49.73 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 68.58 |
| Ship width (cm) | 68.58 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Material | Bore Type | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1012103 | 9 2/5" | 1.13" to 3.75" | 4 9/32" | Type 15 Web | Cast Iron | Split Taper | 4 1/4" | €1,122.59 | |
 |
1013143 | 16 2/5" | 1.13" to 3.75" | 4 9/32" | Type 15 Arm | Cast Iron | Split Taper | 4 1/4" | €1,949.41 | |
|
1014166 | 50 2/5" | 1.13" to 3.75" | 4 9/32" | Type 15 Arm | Cast Iron | Split Taper | 4 1/4" | €5,483.02 | |
|
1014059 | 44 2/5" | 1.13" to 3.75" | 4 9/32" | Type 15 Arm | Cast Iron | Split Taper | 4 1/4" | €4,691.51 | |
 |
1012897 | 13 2/5" | 1.13" to 3.75" | 4 9/32" | Type 15 Arm | Cast Iron | Split Taper | 4 1/4" | €1,399.56 | |
 |
1012186 | 9 3/5" | 1.13" to 3.75" | 4 9/32" | Type 15 Web | Cast Iron | Split Taper | 4 1/4" | €1,341.51 | |
 |

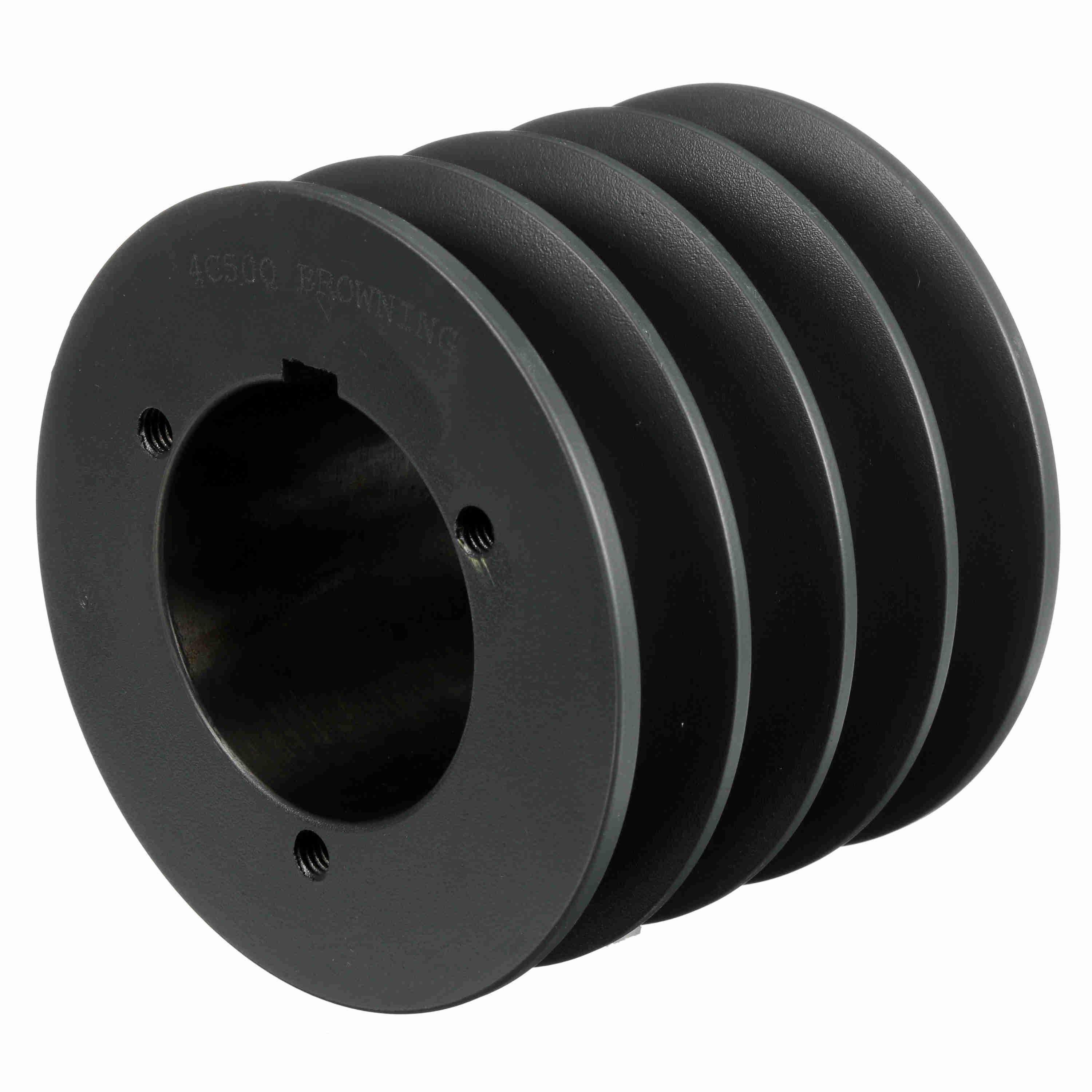

3312980 | 5 2/5" | 1" to 2 5/8" | 5 9/32" | Type 13 Solid | Cast Iron | Split Taper | 4 1/4" | €528.66 |
