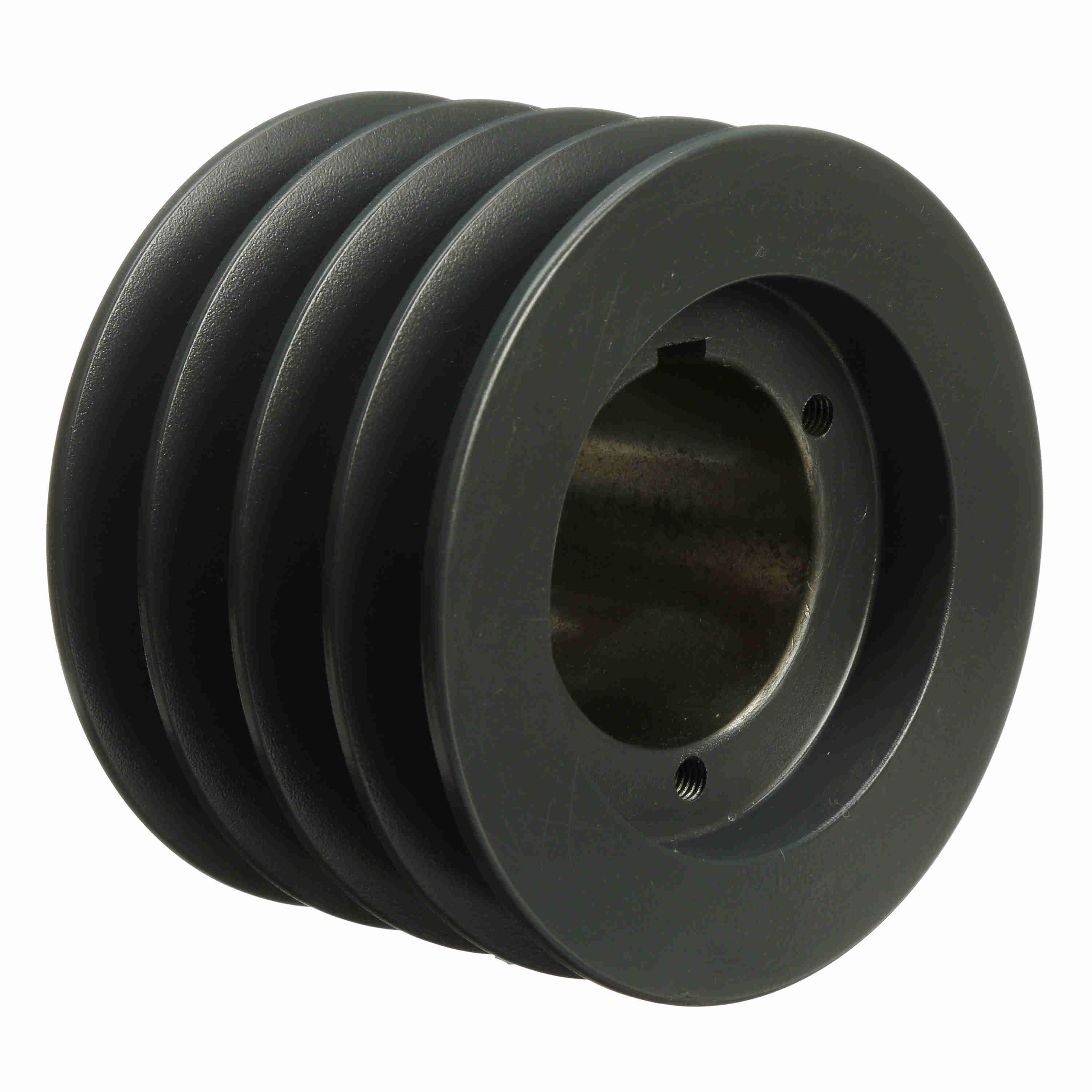

BROWNING 1011964 4C56P V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron, 6 in OD, 3/4 to 1-3/4 in Bore Dia, 6 in Pitch Dia
6"
3/4" to 1 3/4"
Get it by Monday, Aug 17
€1,105.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 3/4" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P2 |
| Face Width | 4 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 5 3/5" |
| Min. Pitch Dia. | 5 3/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 6" |
| Overall Length | 4 1/2" |
| Pitch Dia. | 6" |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
Shipping Info:
| Ship weight (kg) | 6.89 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 15.39 |
| Ship width (cm) | 15.39 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Bushing Bore Range | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1012103 | 9 2/5" | 1.13" to 3.75" | Type 15 Web | 9" | 9" | R1 | 1 1/8" to 3 3/4" | Cast Iron | €1,122.59 | |
 |
1013143 | 16 2/5" | 1.13" to 3.75" | Type 15 Arm | 16" | 16" | R1 | 1 1/8" to 3 3/4" | Cast Iron | €1,949.41 | |
 |
1013663 | 27 2/5" | 1.13" to 3.75" | Type 15 Arm | 27" | 27" | R1 | 1 1/8" to 3 3/4" | Cast Iron | €2,859.21 | |
|
1014166 | 50 2/5" | 1.13" to 3.75" | Type 15 Arm | - | - | R1 | - | Cast Iron | €5,483.02 | |
|
1014059 | 44 2/5" | 1.13" to 3.75" | Type 15 Arm | - | - | R1 | - | Cast Iron | €4,691.51 | |
 |
1012897 | 13 2/5" | 1.13" to 3.75" | Type 15 Arm | - | - | R1 | - | Cast Iron | €1,399.56 | |
 |
1012186 | 9 3/5" | 1.13" to 3.75" | Type 15 Web | 9 1/5" | 9 1/5" | R1 | 1 1/8" to 3 3/4" | Cast Iron | €1,341.51 |
