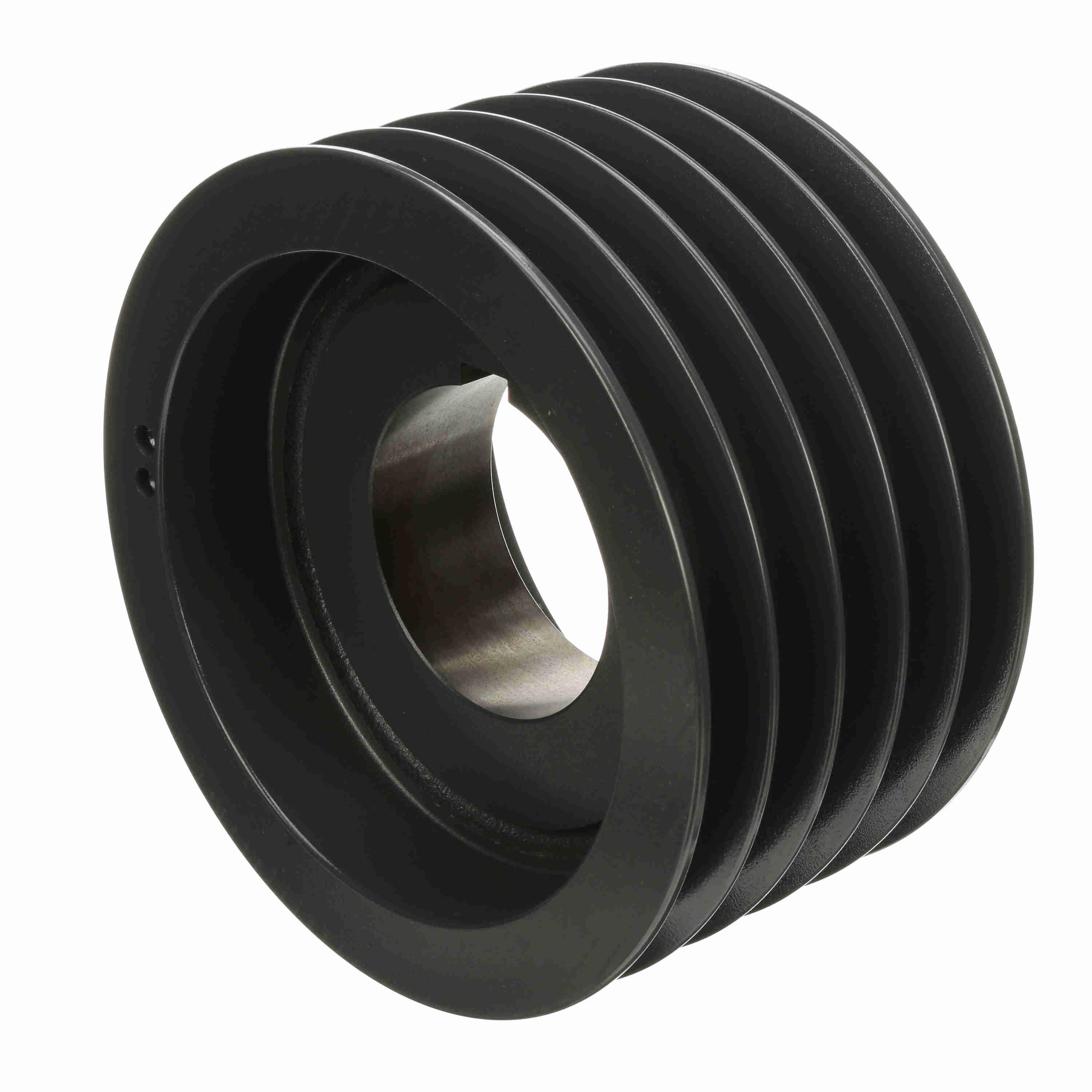

BROWNING 1012277 5C94R V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron
9 4/5"
Get it by Tuesday, Dec 23
€1,543.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 1.13" to 3.75" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Type | R1 |
| Face Width | 5 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 9 2/5" |
| Min. Pitch Dia. | 9 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 9 4/5" |
| Overall Length | 5 1/4" |
| Pitch Dia. | 9 4/5" |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Web |
| Weight | 17.815 Kg |
Shipping Info:
| Ship weight (kg) | 17.66 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 28.19 |
| Ship width (cm) | 28.45 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Material | Bore Type | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1012905 | 13 2/5" | 1.13" to 3.75" | 5 1/4" | Type 15 Arm | Cast Iron | Split Taper | 5 1/4" | €1,588.25 | |
 |
1013077 | 15 2/5" | 1.13" to 3.75" | 5 1/4" | Type 15 Arm | Cast Iron | Split Taper | 5 1/4" | €2,686.13 | |
 |
1013945 | 36 2/5" | 1.38" to 3.625" | 5 25/32" | Type 13 Arm | Cast Iron | Split Taper | 5 1/4" | €3,138.44 | |
 |
1012822 | 12 2/5" | 1.13" to 3.75" | 5 1/4" | Type 15 Web | Cast Iron | Split Taper | 5 1/4" | €1,613.86 | |
 |
1012194 | 9 3/5" | 1.13" to 3.75" | 5 1/4" | Type 15 Web | Cast Iron | Split Taper | 5 1/4" | €946.98 | |
|
1013267 | 18 2/5" | 1.13" to 3.75" | 5 1/4" | Type 15 Arm | Cast Iron | Split Taper | 5 1/4" | €3,553.54 | |
 |
1012996 | 14 2/5" | 1.13" to 3.75" | 5 1/4" | Type 15 Arm | Cast Iron | Split Taper | 5 1/4" | €2,128.64 |
