STEARNS BRAKES 65300-5 Series Brake Assemblies
Filter
A
B| Style | Model | Static Torque | Hub Bore Dia. | Ac Coil Voltage | Enclosure Nema | Coil Voltage Ac | Torque | Voltage | Housing Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 106531105BNB | 1.5 lbs.-ft. | 5/8" | 480/575V AC | NEMA 7, NEMA 9 | 575/480V AC | - | - | - | €4,759.03 | |
| A | 106531105BLB | 1.5 lbs.-ft. | 5/8" | 380/460V AC | NEMA 7, NEMA 9 | 460/380V AC | - | - | - | €4,776.81 | |
| A | 106531105BPB | 1.5 lbs.-ft. | 5/8" | 95/115/190/230V AC | NEMA 7, NEMA 9 | 115/230/95/190V AC | - | - | - | €4,784.63 | |

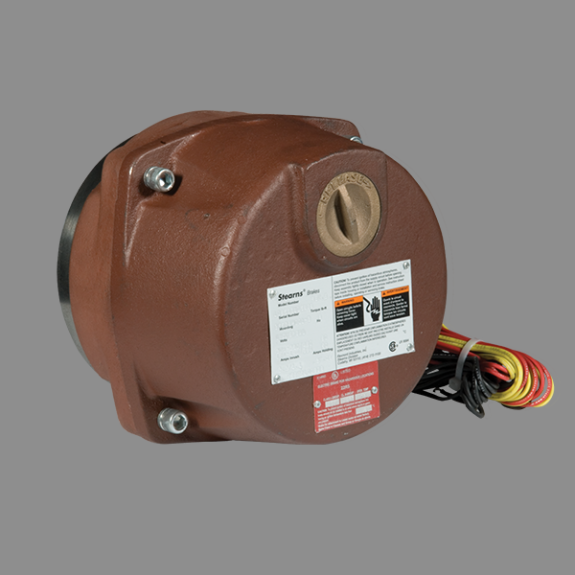

| A | 106531105BQB | 1.5 lbs.-ft. | 5/8" | 190/230/380/460V AC | NEMA 7, NEMA 9 | 230/460/190/380V AC | - | - | - | €4,754.88 | |
| A | 106531105DQC | 1.5 lbs.-ft. | 7/8" | 190/230/380/460V AC | NEMA 7, NEMA 9 | 230/460/190/380V AC | - | - | - | €4,959.86 | |
| A | 106531105DNB | 1.5 lbs.-ft. | 7/8" | 480/575V AC | NEMA 7, NEMA 9 | 575/480V AC | - | - | - | €4,919.18 | |
| A | 106531105DLB | 1.5 lbs.-ft. | 7/8" | 380/460V AC | NEMA 9, NEMA 7 | 460/380V AC | - | - | - | €4,839.39 | |
| A | 106531105BEC | 1.5 lbs.-ft. | 5/8" | 165/200V AC | NEMA 7, NEMA 9 | 200/165V AC | - | - | - | €4,916.05 | |

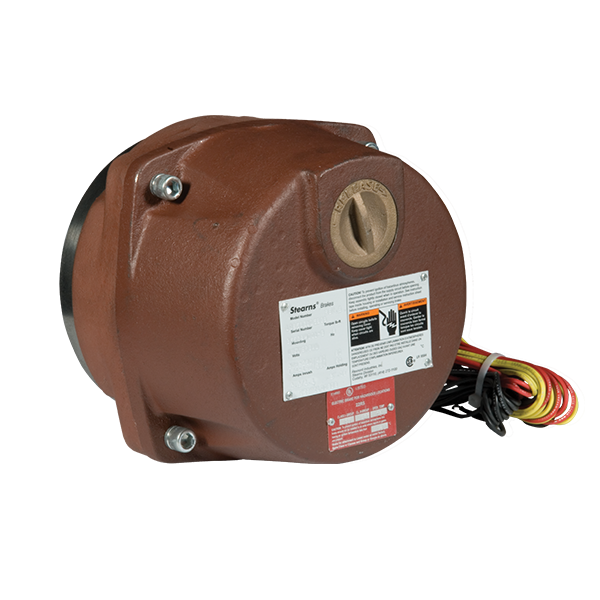

| B | 106532105AQB | 3 lbs.-ft. | 5/8" | 190/230/380/460V AC | NEMA 7, NEMA 9 | 230/460/190/380V AC | - | - | - | €4,743.92 | |
| A | 106532105DLC | 3 lbs.-ft. | 7/8" | 380/460V AC | NEMA 7, NEMA 9 | 460/380V AC | - | - | - | €4,981.77 | |
| A | 106532105BFC | 3 lbs.-ft. | 5/8" | 190/230V AC | NEMA 7, NEMA 9 | 230/190V AC | - | - | - | €4,994.28 | |
| A | 106532105BNB | 3 lbs.-ft. | 5/8" | 480/575V AC | NEMA 7, NEMA 9 | 575/480V AC | - | - | - | €4,759.03 | |
| A | 106532105BLB | 3 lbs.-ft. | 5/8" | 380/460V AC | NEMA 7, NEMA 9 | - | 3 lbs.-in. | 460/380V | 6.62" | €4,776.81 | |
| A | 106532105CQB | 3 lbs.-ft. | 3/4" | 190/230/380/460V AC | NEMA 7, NEMA 9 | 230/460/190/380V AC | - | - | - | €6,720.12 | |
| A | 106532105DFB | 3 lbs.-ft. | 7/8" | 190/230V AC | NEMA 7, NEMA 9 | 230/190V AC | - | - | - | €4,427.86 | |
| A | 106532105DQB | 3 lbs.-ft. | 7/8" | 190/230/380/460V AC | NEMA 7, NEMA 9 | 230/460/190/380V AC | - | - | - | €4,819.03 | |
| A | 106532105BBB | 3 lbs.-ft. | 5/8" | 95/115V AC | NEMA 7, NEMA 9 | 115/95V AC | - | - | - | €4,748.63 | |
| A | 106532105CLB | 3 lbs.-ft. | 3/4" | 380/460V AC | NEMA 7, NEMA 9 | 460/380V AC | - | - | - | €6,742.03 | |
| A | 106532105DNB | 3 lbs.-ft. | 7/8" | 480/575V AC | NEMA 7, NEMA 9 | 575/480V AC | - | - | - | €4,919.18 | |
| A | 106533105DFB | 6 lbs.-ft. | 7/8" | 190/230V AC | NEMA 7, NEMA 9 | 230/190V AC | - | - | - | €4,916.05 | |
| A | 106533105BPB | 6 lbs.-ft. | 5/8" | 95/115/190/230V AC | NEMA 7, NEMA 9 | 115/230/95/190V AC | - | - | - | €4,876.93 | |
| A | 106533105DQB | 6 lbs.-ft. | 7/8" | 190/230/380/460V AC | NEMA 7, NEMA 9 | 230/460/190/380V AC | - | - | - | €4,837.82 | |
| A | 106533105DLB | 6 lbs.-ft. | 7/8" | 380/460V AC | NEMA 7, NEMA 9 | 460/380V AC | - | - | - | €4,792.45 | |
| A | 106533105BLB | 6 lbs.-ft. | 5/8" | 380/460V AC | NEMA 7, NEMA 9 | 460/380V AC | - | - | - | €4,728.31 | |
| A | 106533105CQB | 6 lbs.-ft. | 3/4" | 190/230/380/460V AC | NEMA 7, NEMA 9 | 230/460/190/380V AC | - | - | - | €6,738.89 | |
| A | 106533105BBB | 6 lbs.-ft. | 5/8" | 95/115V AC | NEMA 7, NEMA 9 | 115/95V AC | - | - | - | €4,851.90 | |
| A | 106533105BMB | 6 lbs.-ft. | 5/8" | 415/498V AC | NEMA 7, NEMA 9 | 498/415V AC | - | - | - | €4,991.15 | |
| A | 106533105BHB | 6 lbs.-ft. | 5/8" | 220/264V AC | NEMA 7, NEMA 9 | 264/220V AC | - | - | - | €4,811.21 | |
| A | 106533105BEB | 6 lbs.-ft. | 5/8" | 165/200V AC | NEMA 7, NEMA 9 | 200/165V AC | - | - | - | €4,983.32 | |
| A | 106533105BNB | 6 lbs.-ft. | 5/8" | 480/575V AC | NEMA 7, NEMA 9 | 575/480V AC | - | - | - | €4,630.20 | |
| A | 106533105BQB | 6 lbs.-ft. | 5/8" | 190/230/380/460V AC | NEMA 7, NEMA 9 | - | 6 lbs.-in. | 190/460/230/380/208V | 6.94" | €4,952.29 | |
| A | 106533105DNB | 6 lbs.-ft. | 7/8" | 480/575V AC | NEMA 7, NEMA 9 | 575/480V AC | - | - | - | €4,693.07 | |
| A | 106535105DFB | 10 lbs.-ft. | 7/8" | 190/230V AC | NEMA 7, NEMA 9 | 230/190V AC | - | - | - | €4,610.93 | |
| A | 106535105BEC | 10 lbs.-ft. | 5/8" | 165/200V AC | NEMA 7, NEMA 9 | 200/165V AC | - | - | - | €5,221.15 | |
| A | 106535105BNB | 10 lbs.-ft. | 5/8" | 480/575V AC | NEMA 7, NEMA 9 | 575/480V AC | - | - | - | €4,567.13 | |
| A | 106535105BQB | 10 lbs.-ft. | 5/8" | 190/230/380/460V AC | NEMA 7, NEMA 9 | 230/460/190/380V AC | - | - | - | €5,425.31 | |
| A | 106535105CQB | 10 lbs.-ft. | 3/4" | 190/230/380/460V AC | NEMA 7, NEMA 9 | 230/460/190/380V AC | - | - | - | €6,835.91 | |
| A | 106535105DQB | 10 lbs.-ft. | 7/8" | 190/230/380/460V AC | NEMA 7, NEMA 9 | 230/460/190/380V AC | - | - | - | €4,567.13 | |
| A | 106535105DPB | 10 lbs.-ft. | 7/8" | 95/115/190/230V AC | NEMA 7, NEMA 9 | 115/230/95/190V AC | - | - | - | €4,610.93 | |
| A | 106535105BLB | 10 lbs.-ft. | 5/8" | 380/460V AC | NEMA 7, NEMA 9 | 460/380V AC | - | - | - | €4,567.13 | |
| A | 106535105BFB | 10 lbs.-ft. | 5/8" | 190/230V AC | NEMA 7, NEMA 9 | 230/190V AC | - | - | - | €4,830.00 | |
| A | 106535105BBB | 10 lbs.-ft. | 5/8" | 95/115V AC | NEMA 7, NEMA 9 | 115/95V AC | - | - | - | €4,567.13 | |
| A | 106535105BPB | 10 lbs.-ft. | 5/8" | 95/115/190/230V AC | NEMA 7, NEMA 9 | 115/230/95/190V AC | - | - | - | €4,610.93 | |
| A | 106535105DNB | 10 lbs.-ft. | 7/8" | 480/575V AC | NEMA 7, NEMA 9 | 575/480V AC | - | - | - | €4,476.82 | |
| A | 106535105DHB | 10 lbs.-ft. | 7/8" | 220/264V AC | NEMA 7, NEMA 9 | 264/220V AC | - | - | - | €4,610.93 | |
| A | 106535105DLB | 10 lbs.-ft. | 7/8" | 380/460V AC | NEMA 7, NEMA 9 | 460/380V AC | - | - | - | €4,567.13 | |
| A | 106536105DNB | 15 lbs.-ft. | 7/8" | 480/575V AC | NEMA 7, NEMA 9 | 575/480V AC | - | - | - | €4,668.53 | |
| A | 106536105LBB | 15 lbs.-ft. | 1" | 95/115V AC | NEMA 7, NEMA 9 | 115/95V AC | - | - | - | €5,341.65 | |
| A | 106536105LLB | 15 lbs.-ft. | 1" | 380/460V AC | NEMA 7, NEMA 9 | 460/380V AC | - | - | - | €5,341.65 | |
| A | 106536105LQB | 15 lbs.-ft. | 1" | 190/230/380/460V AC | NEMA 7, NEMA 9 | 230/460/190/380V AC | - | - | - | €5,341.65 | |
| A | 106536105DPB | 15 lbs.-ft. | 7/8" | 95/115/190/230V AC | NEMA 7, NEMA 9 | 115/230/95/190V AC | - | - | - | €4,808.09 | |
| A | 106536105DLB | 15 lbs.-ft. | 7/8" | 380/460V AC | NEMA 7, NEMA 9 | 460/380V AC | - | - | - | €4,762.72 | |
| A | 106536105DEB | 15 lbs.-ft. | 7/8" | 165/200V AC | NEMA 7, NEMA 9 | 200/165V AC | - | - | - | €4,808.09 | |
| A | 106536105DFB | 15 lbs.-ft. | 7/8" | 190/230V AC | NEMA 7, NEMA 9 | 230/190V AC | - | - | - | €4,808.09 | |
| A | 106536105DQB | 15 lbs.-ft. | 7/8" | 190/230/380/460V AC | NEMA 7, NEMA 9 | - | 15 lbs.-in. | 190/460/230/380/208V | 7 1/4" | €4,762.72 | |
| A | 106536105CQB | 15 lbs.-ft. | 3/4" | 190/230/380/460V AC | NEMA 7, NEMA 9 | 230/460/190/380V AC | - | - | - | €6,896.93 | |
| A | 106536105BQB | 15 lbs.-ft. | 5/8" | 190/230/380/460V AC | NEMA 7, NEMA 9 | 230/460/190/380V AC | - | - | - | €4,762.72 | |
| A | 106536105BNC | 15 lbs.-ft. | 5/8" | 480/575V AC | NEMA 7, NEMA 9 | 575/480V AC | - | - | - | €4,808.09 |
