BROWNING 1011402 4B184R V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron
Get it by Tuesday, Dec 23
€641.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Split Taper |
| Bushing Type | R1 |
| Face Width | 3 1/4" |
| Hub Projection | 5/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 18 2/5" |
| Min. Pitch Dia. | 18" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 18 3/4" |
| Overall Length | 3 51/64" |
| Pitch Dia. (a) | 18 1/5" |
| Pitch Dia. (b) | 18.7" |
| Series | B Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Arm Type 13 |
| Weight | 23.473 Kg |
Shipping Info:
| Ship weight (kg) | 23.29 |
| Ship height (cm) | 47.63 |
| Ship length (cm) | 9.65 |
| Ship width (cm) | 47.63 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1010511 | 6.15" | 3/4" to 2 11/16" | 3 17/32" | Type 13 Web | Split Taper | Cast Iron | 3 1/4" | €295.41 | |
 |
1011733 | 30.35" | 1.13" to 3.75" | 3 25/32" | Type 13 Arm | Split Taper | Cast Iron | 3 1/4" | €1,896.58 | |
|
1011840 | 38.35" | 1.13" to 3.75" | 3 25/32" | Type 13 Arm | Split Taper | Cast Iron | 3 1/4" | €1,948.95 | |
 |
1011626 | 25.35" | 1.13" to 3.75" | 3 25/32" | Type 13 Arm | Split Taper | Cast Iron | 3 1/4" | €1,674.36 | |
 |

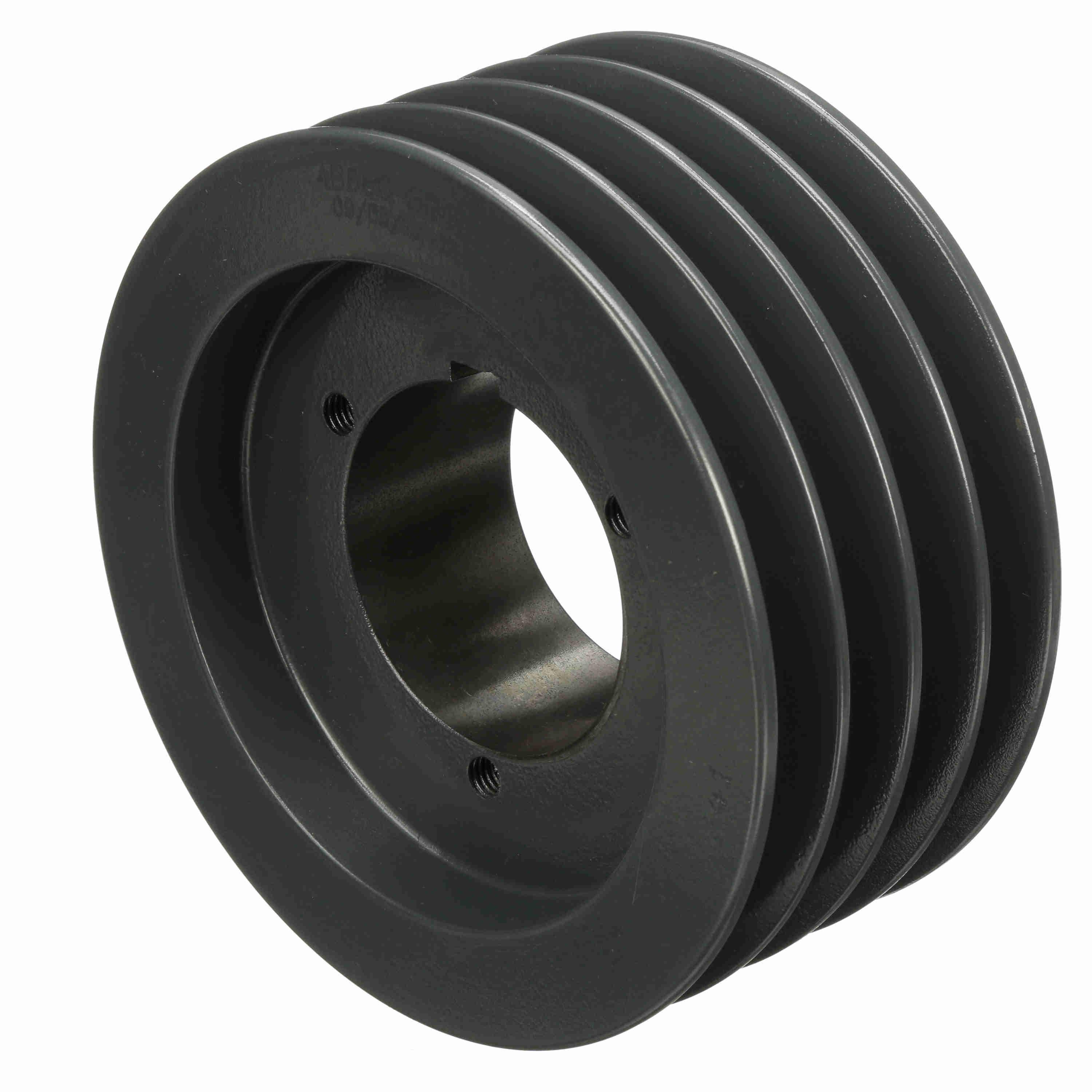

1010578 | 6.35" | 3/4" to 2 11/16" | 3 17/32" | Type 13 Web | Split Taper | Cast Iron | 3 1/4" | €297.83 | |
 |
1010636 | 6.55" | 3/4" to 2 11/16" | 3 17/32" | Type 13 Web | Split Taper | Cast Iron | 3 1/4" | €309.05 | |
 |
1010743 | 6.95" | 3/4" to 2 11/16" | 3 37/64" | Type 13 Web | Split Taper | Cast Iron | 3 1/4" | €331.52 |
