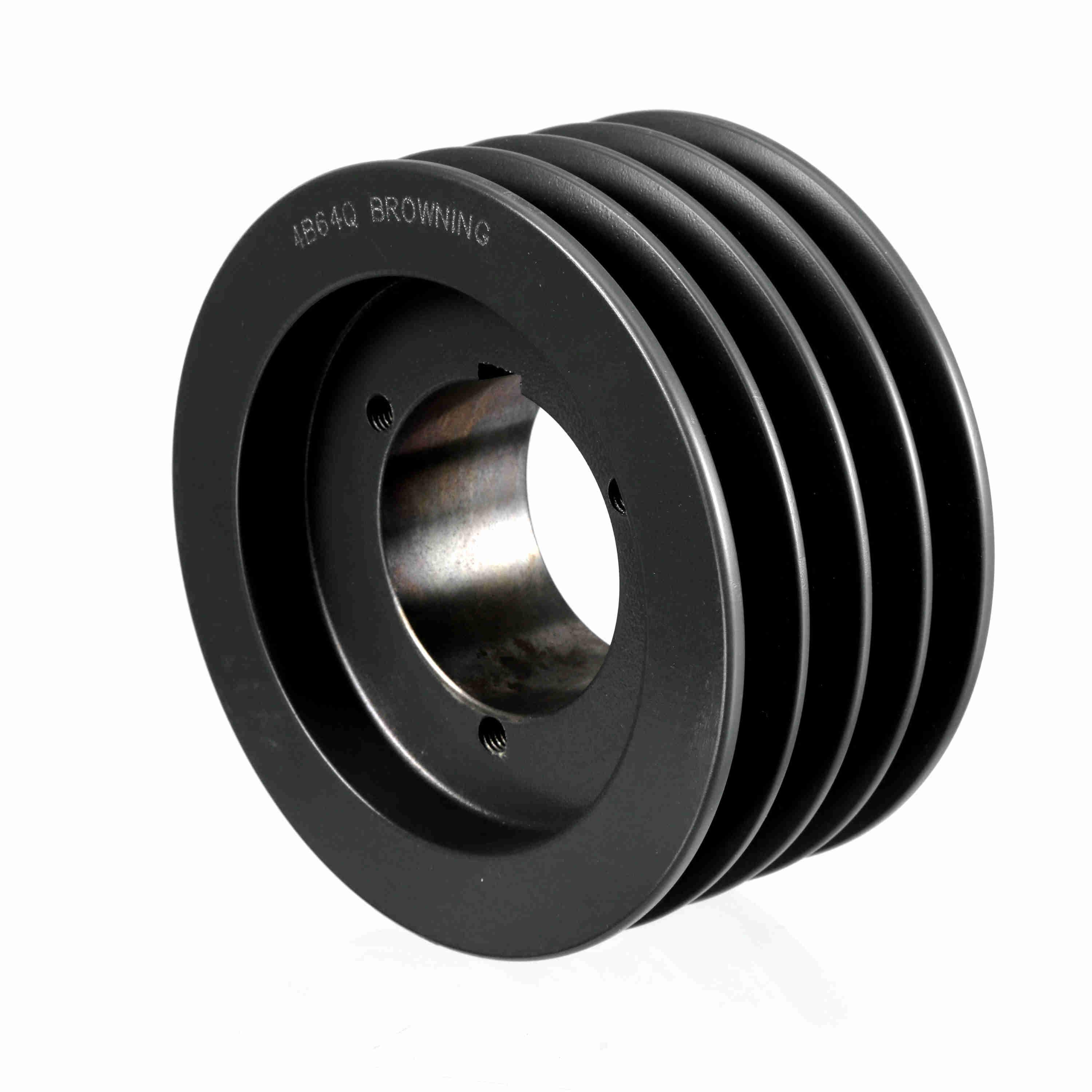

BROWNING 1010693 4B64Q V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron
Get it by Tuesday, Dec 23
€318.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 3 1/4" |
| Hub Projection | 3/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 6 2/5" |
| Min. Pitch Dia. | 6" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 6 3/4" |
| Overall Length | 3 37/64" |
| Pitch Dia. (a) | 6 1/5" |
| Pitch Dia. (b) | 6.7" |
| Series | B Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
| Weight | 14.1 lbs. |
Shipping Info:
| Ship weight (kg) | 6.57 |
| Ship height (cm) | 17.15 |
| Ship length (cm) | 9.09 |
| Ship width (cm) | 17.15 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1010511 | 6.15" | 3/4" to 2 11/16" | 3 17/32" | Type 13 Web | Split Taper | Cast Iron | 3 1/4" | €295.41 | |
 |
1011733 | 30.35" | 1.13" to 3.75" | 3 25/32" | Type 13 Arm | Split Taper | Cast Iron | 3 1/4" | €1,896.58 | |
 |
1011402 | 18 3/4" | 1 1/8" to 3 3/4" | 3 51/64" | Arm Type 13 | Split Taper | Cast Iron | 3 1/4" | €641.46 | |
|
1011840 | 38.35" | 1.13" to 3.75" | 3 25/32" | Type 13 Arm | Split Taper | Cast Iron | 3 1/4" | €1,948.95 | |
 |
1011626 | 25.35" | 1.13" to 3.75" | 3 25/32" | Type 13 Arm | Split Taper | Cast Iron | 3 1/4" | €1,674.36 | |
 |
1010578 | 6.35" | 3/4" to 2 11/16" | 3 17/32" | Type 13 Web | Split Taper | Cast Iron | 3 1/4" | €297.83 | |
 |
1010636 | 6.55" | 3/4" to 2 11/16" | 3 17/32" | Type 13 Web | Split Taper | Cast Iron | 3 1/4" | €309.05 |
