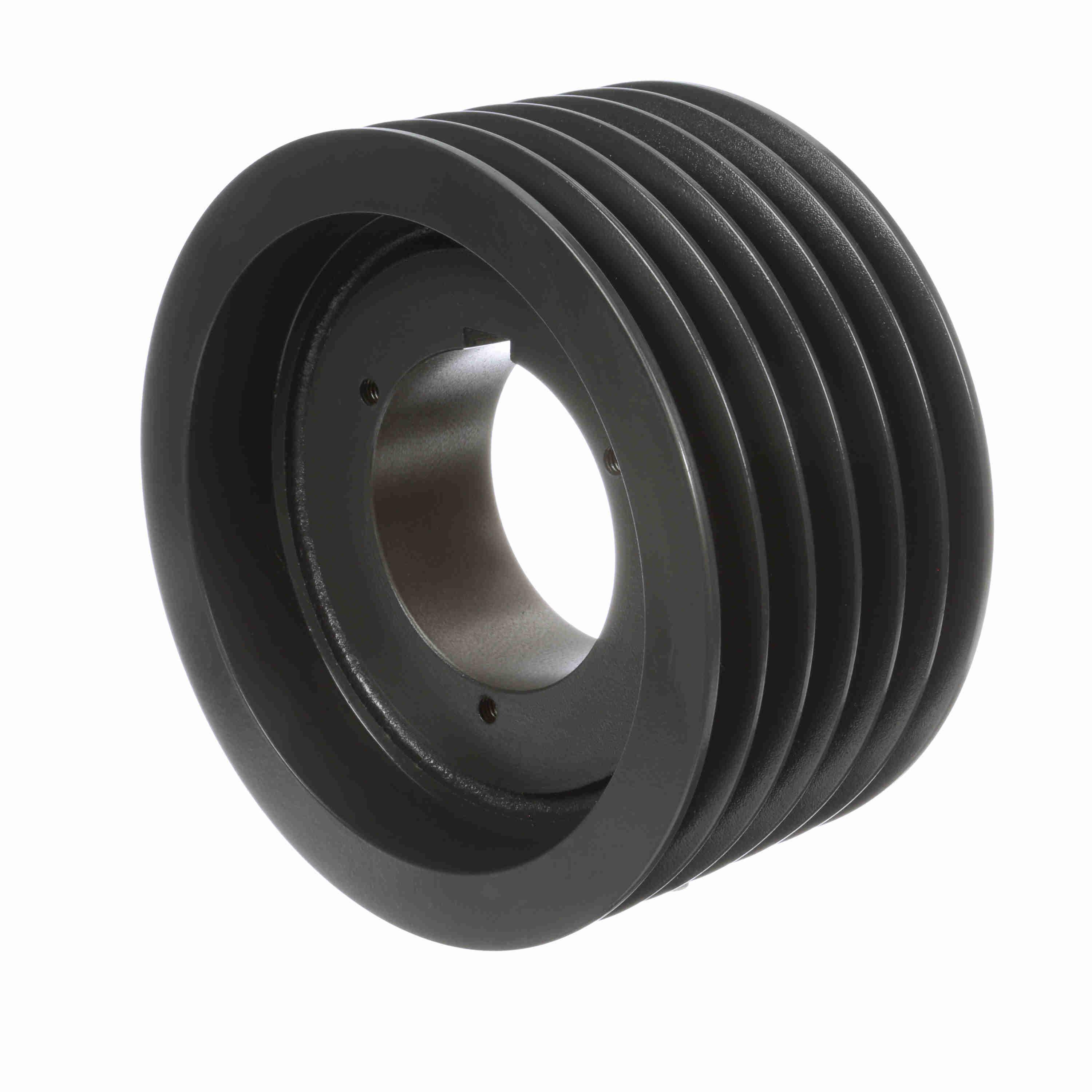

BROWNING 1010917 6B80R V-Belt Sheave, Multiple, Bushed Bore, 6 Groove, Cast Iron
Get it by Tuesday, Dec 23
€718.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1.13" to 3.75" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Type | R1 |
| Face Width | 4 3/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 8" |
| Min. Pitch Dia. | 7 3/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 6 |
| Outside Dia. | 8.35" |
| Overall Length | 4 3/4" |
| Pitch Dia. (a) | 7 4/5" |
| Pitch Dia. (b) | 8.3" |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Web |
| Weight | 12.36 Kg |
Shipping Info:
| Ship weight (kg) | 12.01 |
| Ship height (cm) | 21.21 |
| Ship length (cm) | 12.07 |
| Ship width (cm) | 21.21 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Type | Bore Type | Material | Bore Dia. | Face Width | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1010834 | 7.35" | Type 15 Web | Split Taper | Cast Iron | 1.13" to 3.75" | 4 3/4" | 4 3/4" | €611.81 | |
 |
1011006 | 9.35" | Type 15 Web | Split Taper | Cast Iron | 1.13" to 3.75" | 4 3/4" | 4 3/4" | €609.64 | |
 |
1010966 | 8.95" | Type 15 Web | Split Taper | Cast Iron | 1.13" to 3.75" | 4 3/4" | 4 3/4" | €780.58 | |
 |
1011097 | 11.35" | Type 15 Arm | Split Taper | Cast Iron | 1.13" to 3.75" | 4 3/4" | 4 3/4" | €761.67 | |
 |
1011428 | 18 3/4" | Type 15 Arm | Split Taper | Cast Iron | 1.13" to 3.75" | 4 3/4" | 4 3/4" | €1,087.74 | |
 |
1011642 | 25.35" | Type 15 Arm | Split Taper | Cast Iron | 1.13" to 3.75" | 4 3/4" | 4 3/4" | €2,333.74 | |
 |
1011378 | 16.35" | Type 15 Arm | Split Taper | Cast Iron | 1.13" to 3.75" | 4 3/4" | 4 3/4" | €1,035.24 |
