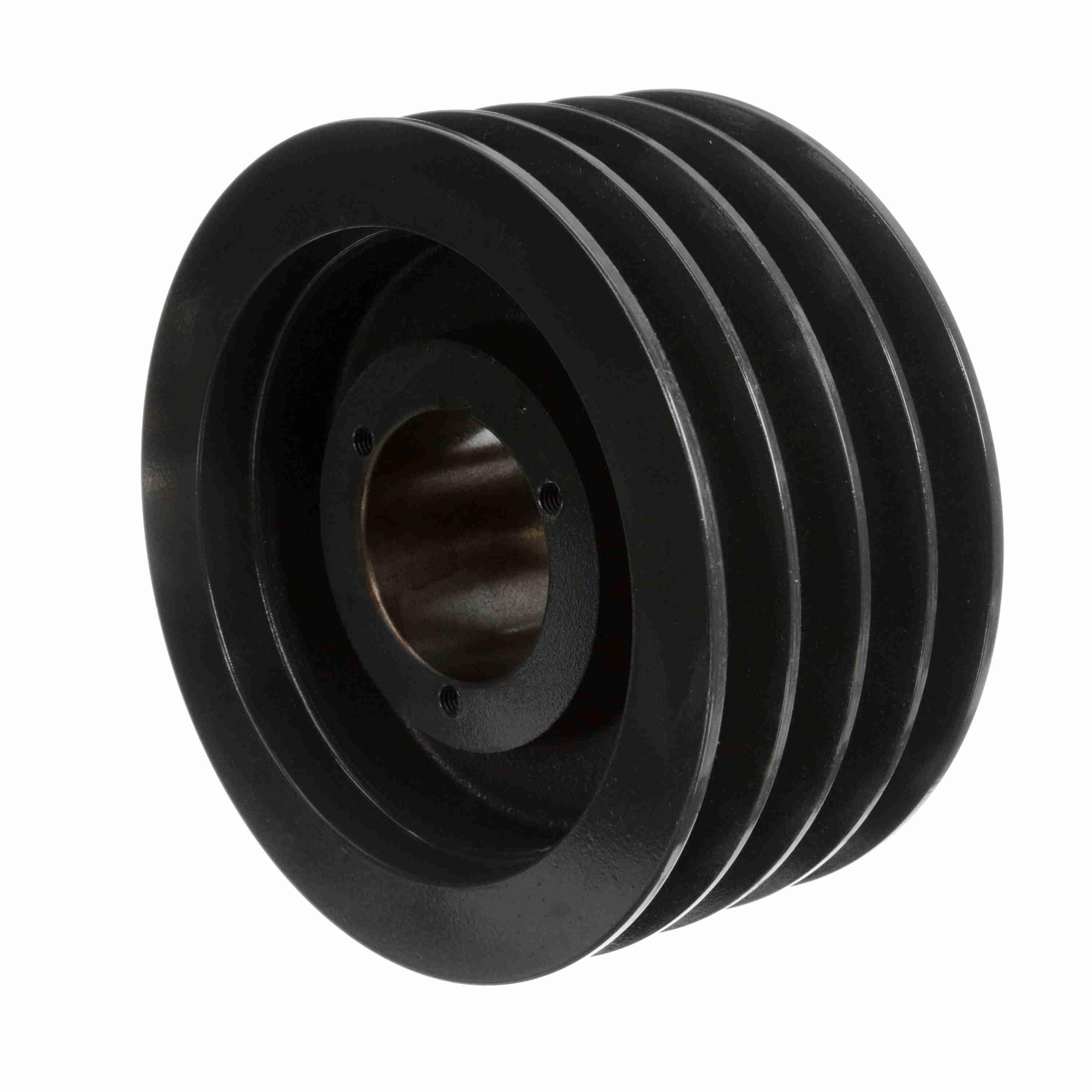

BROWNING 1009455 4TC86 V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron
9"
Get it by Tuesday, Dec 23
€1,124.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 1" to 2 5/8" |
| Bore Type | Split Taper |
| Bushing Type | Q2 |
| Face Width | 4 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 8 3/5" |
| Min. Pitch Dia. | 8 3/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 9" |
| Overall Length | 4 17/32" |
| Pitch Dia. | 9" |
| Series | TC Series |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
| Weight | 12.542 Kg |
Shipping Info:
| Ship weight (kg) | 12.44 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 11.51 |
| Ship width (cm) | 22.86 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Overall Length | Type | Bore Type | Material | Bore Dia. | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
![]() |
1009281 | 8 2/5" | 4 17/32" | Type 13 Web | Split Taper | Cast Iron | 1" to 2 5/8" | 4 1/4" | €677.71 | |
![]() |
1009562 | 9 2/5" | 4 17/32" | Type 13 Web | Split Taper | Cast Iron | 1" to 2 5/8" | 4 1/4" | €1,069.70 | |
![]() |
1009612 | 9 3/5" | 4 17/32" | Type 13 Web | Split Taper | Cast Iron | 1" to 2 5/8" | 4 1/4" | €1,207.69 | |
![]() |
1009018 | 7 2/5" | 4 37/64" | Type 13 Web | Split Taper | Cast Iron | 1" to 2 5/8" | 4 1/4" | €505.11 | |
![]() |
1009067 | 7 3/5" | 4 17/32" | Type 13 Web | Split Taper | Cast Iron | 1" to 2 5/8" | 4 1/4" | €764.29 | |
![]() |
1009778 | 10 1/5" | 4 17/32" | Type 13 Arm | Split Taper | Cast Iron | 1" to 2 5/8" | 4 1/4" | €1,231.19 | |
![]() |
1010297 | 20 2/5" | 4 17/32" | Type 13 Arm | Split Taper | Cast Iron | 1" to 2 5/8" | 4 1/4" | €2,693.19 |
