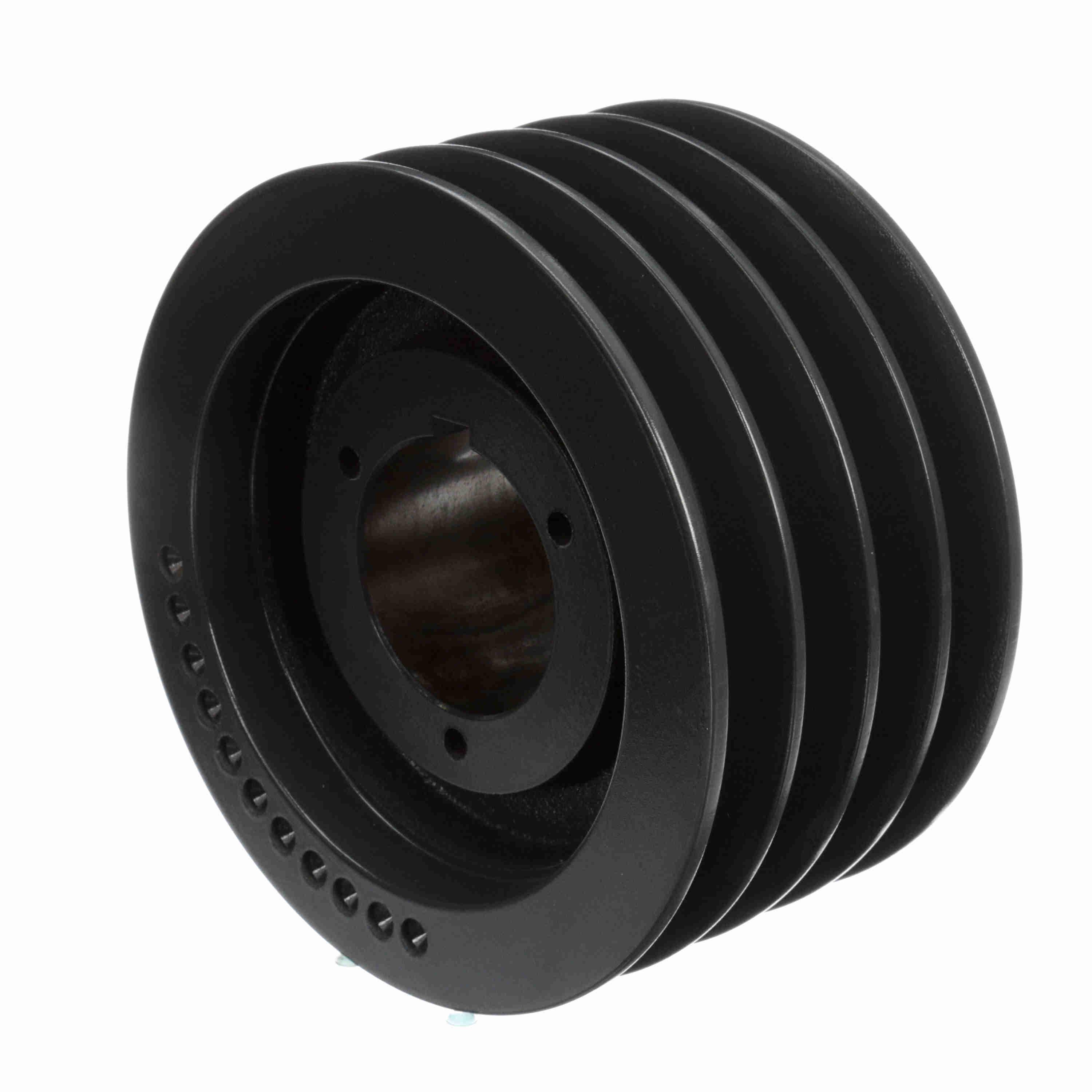

BROWNING 1009224 4TC78 V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron, 8.2 in OD, 1 to 2-5/8 in Bore Dia, 8.2 in Pitch Dia
8 1/5"
Get it by Friday, Aug 14
€682.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 1" to 2 5/8" |
| Bore Type | Split Taper |
| Bushing Type | Q2 |
| Face Width | 4 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7 4/5" |
| Min. Pitch Dia. | 7 4/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 8 1/5" |
| Overall Length | 4 17/32" |
| Pitch Dia. | 8 1/5" |
| Series | TC Series |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 20.83 |
| Ship length (cm) | 11.51 |
| Ship width (cm) | 20.83 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Material | Face Width | Bore Dia. | Belt Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1009281 | 8 2/5" | Type 13 Web | 8" | 8" | Cast Iron | 4 1/4" | 1" to 2 5/8" | C Series | €677.71 | |
 |
1009562 | 9 2/5" | Type 13 Web | 9" | 9" | Cast Iron | 4 1/4" | 1" to 2 5/8" | C Series | €1,069.70 | |
 |
1009612 | 9 3/5" | Type 13 Web | 9 1/5" | 9 1/5" | Cast Iron | 4 1/4" | 1" to 2 5/8" | C Series | €1,207.69 | |
 |
1009018 | 7 2/5" | Type 13 Web | 7" | 7" | Cast Iron | 4 1/4" | 1" to 2 5/8" | C Series | €505.11 | |
 |
1009067 | 7 3/5" | Type 13 Web | 7 1/5" | 7 1/5" | Cast Iron | 4 1/4" | 1" to 2 5/8" | C Series | €764.29 | |
 |
1009778 | 10 1/5" | Type 13 Arm | 9 4/5" | 9 4/5" | Cast Iron | 4 1/4" | 1" to 2 5/8" | C Series | €1,231.19 | |
 |
1010297 | 20 2/5" | Type 13 Arm | 20" | 20" | Cast Iron | 4 1/4" | 1" to 2 5/8" | C Series | €2,693.19 |
