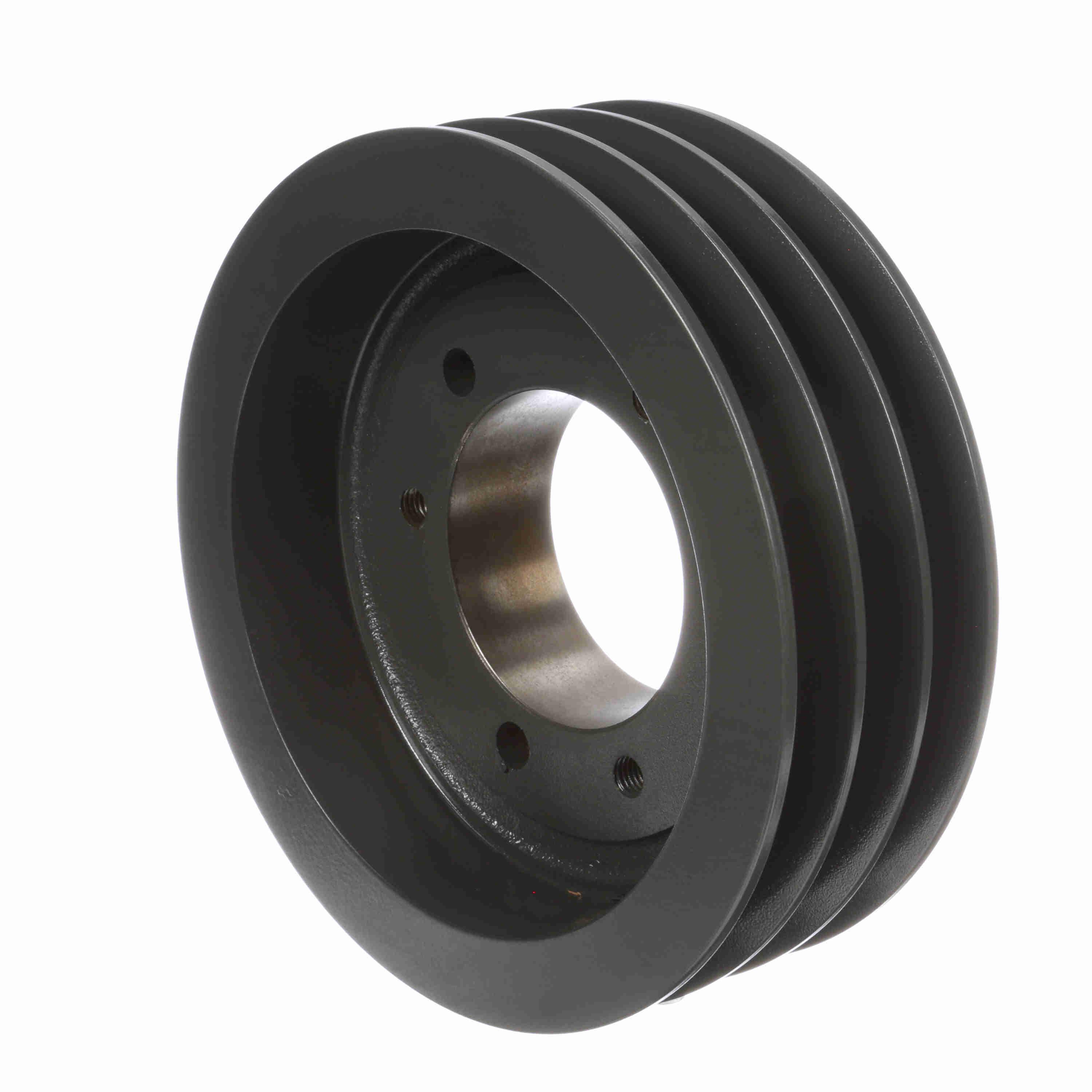

BROWNING 1006253 3C95E V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron, 9.9 in OD, 0.88 to 3.5 in Bore Dia, E Bushing Type
9.9"
Get it by Friday, Aug 14
€985.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | C Series |
| Bore Dia. | 22/25" to 3 1/2" |
| Bore Type | QD |
| Bushing Bore Range | 7/8" to 3 1/2" |
| Bushing Type | E |
| Face Width | 3 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 9 1/2" |
| Min. Pitch Dia. | 9 1/2" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 9.9" |
| Pitch Dia. | 9.9" |
| Suitable For Use With | Gripbelt C Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Web |
Shipping Info:
| Ship weight (kg) | 12.72 |
| Ship height (cm) | 25.15 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 25.15 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1008259 | 5.9" | 1/2" to 2" | Type A Solid | 5 1/2" | 5 1/2" | SD | Cast Iron | 3 1/4" | €859.43 | |
 |
1006329 | 16 2/5" | 22/25" to 3 1/2" | Type A Arm | 16" | 16" | E | Cast Iron | 3 1/4" | €1,582.08 | |
 |
1006287 | 11 2/5" | 22/25" to 3 1/2" | Type A Arm | 11" | 11" | E | Cast Iron | 3 1/4" | €1,305.32 | |
 |
1006303 | 13 2/5" | 22/25" to 3 1/2" | Type A Arm | 13" | 13" | E | Cast Iron | 3 1/4" | €966.73 | |
 |
1006261 | 10 2/5" | 22/25" to 3 1/2" | Type A Web | - | - | E | Cast Iron | 3 1/4" | €1,219.54 | |
 |
1006295 | 12 2/5" | 22/25" to 3 1/2" | Type A Arm | 12" | 12" | E | Cast Iron | 3 1/4" | €1,598.06 | |
 |
1006378 | 44 2/5" | 1" to 4" | Type D Arm | 44" | 44" | F | Cast Iron | 3 1/4" | €4,759.49 |
