BROWNING Q-D Sheaves For C Belts, 3 Grooves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q| Style | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1008242 | 5 2/5" | 1/2" to 2" | Type A Solid | 5" | 5" | SD | Cast Iron | 3 1/4" | €811.89 | |
| B | 1008259 | 5.9" | 1/2" to 2" | Type A Solid | 5 1/2" | 5 1/2" | SD | Cast Iron | 3 1/4" | €859.43 | |
| C | 1006212 | 7.9" | 1/2" to 2 15/16" | Type A Solid | 7 1/2" | 7 1/2" | SF | Cast Iron | 3 1/4" | €709.54 | |
| D | 1006220 | 8 2/5" | 22/25" to 3 1/2" | Type B Solid | 8" | 8" | E | Cast Iron | 3 1/4" | €889.25 | |

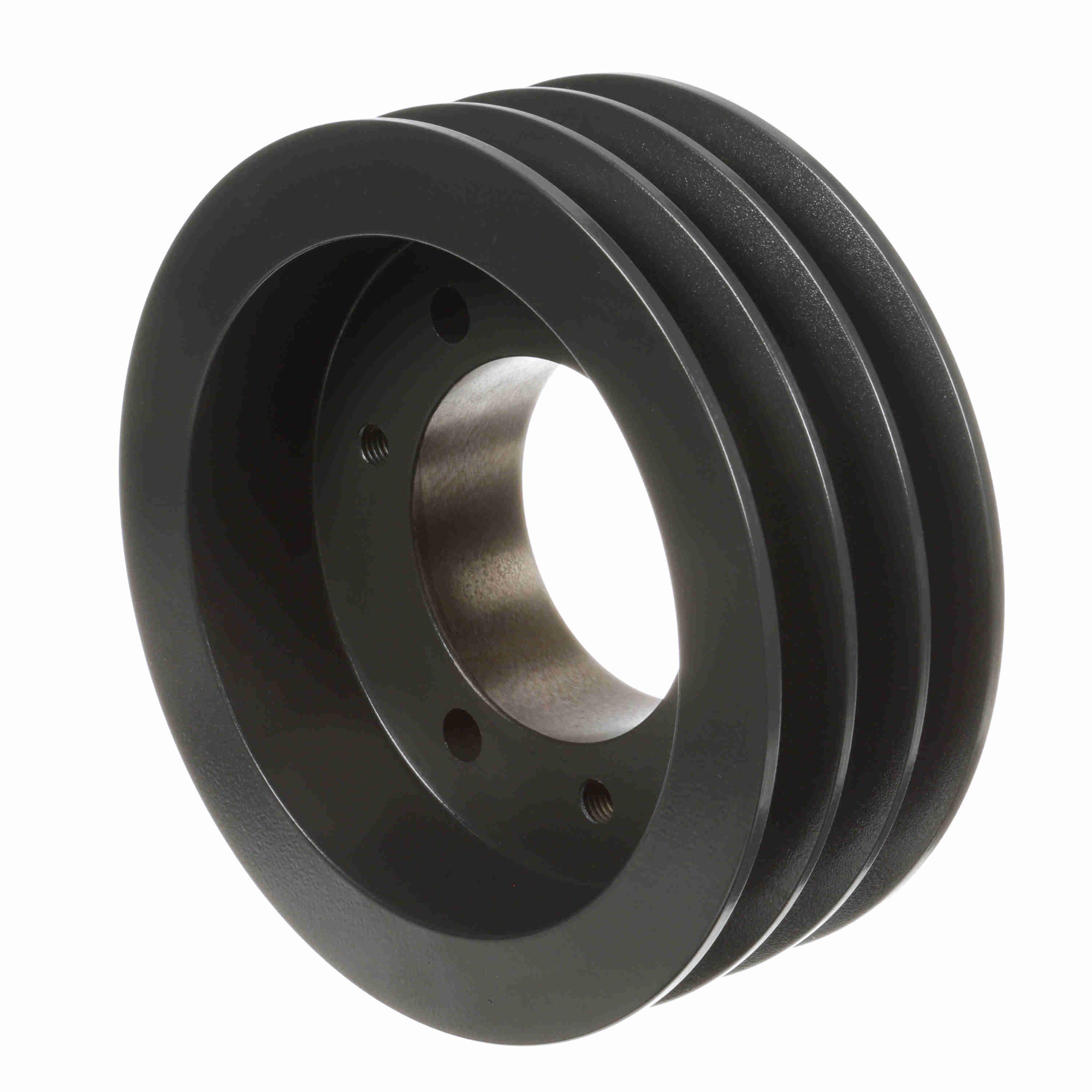

| E | 1006238 | 8.9" | 22/25" to 3 1/2" | Type B Solid | 8 1/2" | 8 1/2" | E | Cast Iron | 3 1/4" | €1,125.01 | |
| F | 1006246 | 9 2/5" | 22/25" to 3 1/2" | Type A Solid | 9" | 9" | E | Cast Iron | 3 1/4" | €901.29 | |
| G | 1006253 | 9.9" | 22/25" to 3 1/2" | Type A Web | 9 1/2" | 9 1/2" | E | Cast Iron | 3 1/4" | €985.97 | |
| H | 1006261 | 10 2/5" | 22/25" to 3 1/2" | Type A Web | - | - | E | Cast Iron | 3 1/4" | €1,219.54 | |
| I | 1006279 | 10.9" | 22/25" to 3 1/2" | Type A Arm | 10 1/2" | 10 1/2" | E | Cast Iron | 3 1/4" | €1,102.66 | |

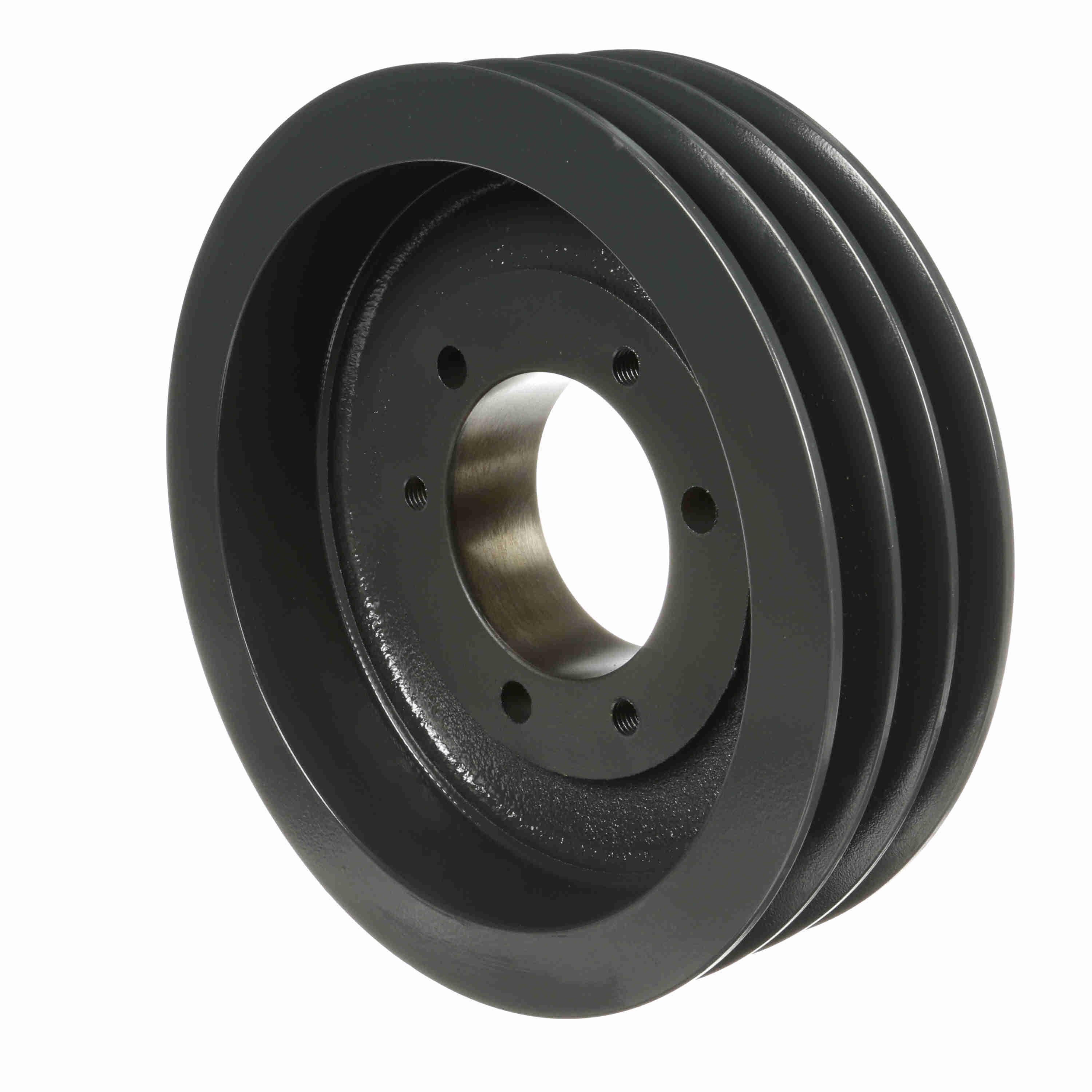

| J | 1006287 | 11 2/5" | 22/25" to 3 1/2" | Type A Arm | 11" | 11" | E | Cast Iron | 3 1/4" | €1,305.32 | |
| K | 1006295 | 12 2/5" | 22/25" to 3 1/2" | Type A Arm | 12" | 12" | E | Cast Iron | 3 1/4" | €1,598.06 | |
| L | 1006303 | 13 2/5" | 22/25" to 3 1/2" | Type A Arm | 13" | 13" | E | Cast Iron | 3 1/4" | €966.73 | |
| M | 1006311 | 14 2/5" | 22/25" to 3 1/2" | Type A Arm | 14" | 14" | E | Cast Iron | 3 1/4" | €1,534.14 | |

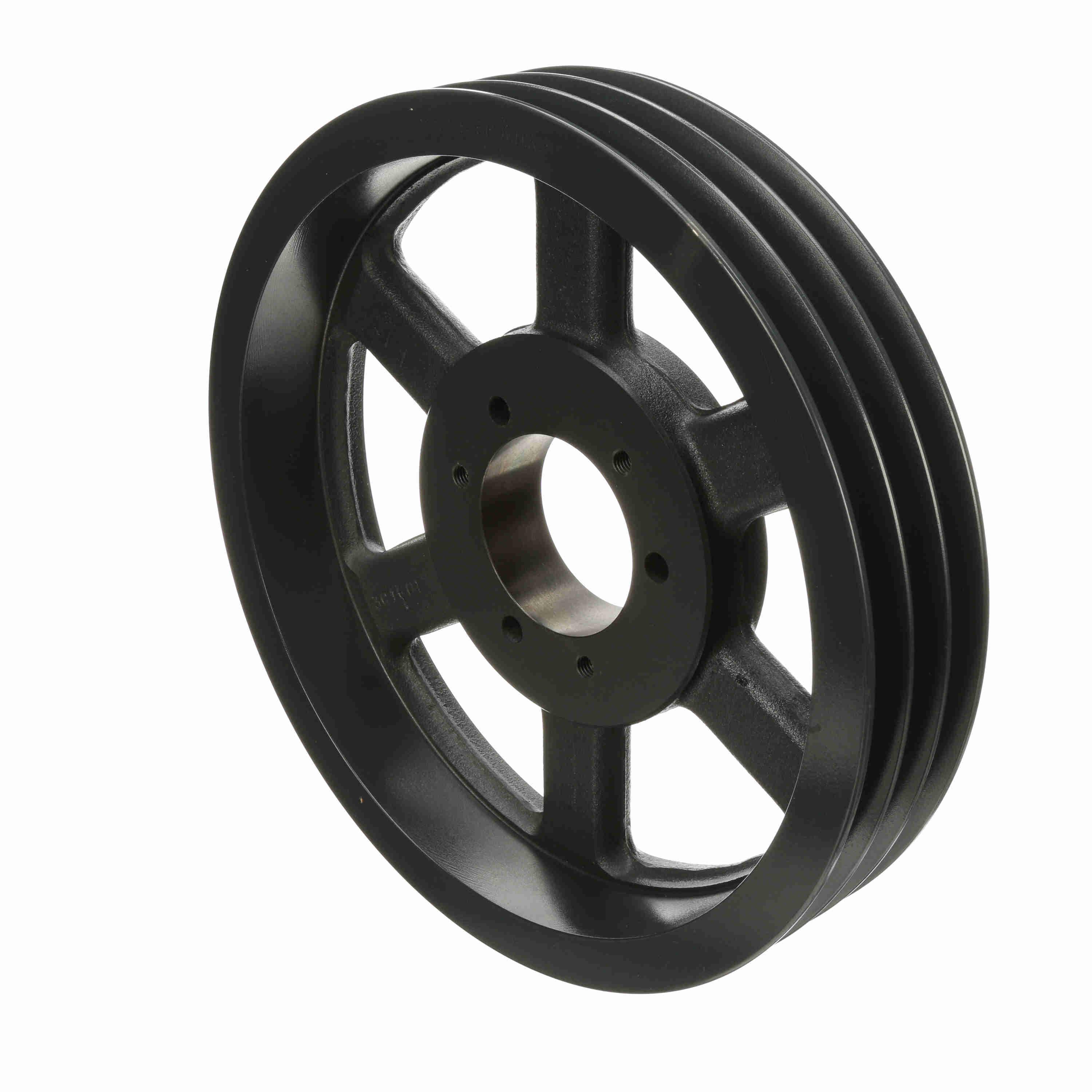

| N | 1006329 | 16 2/5" | 22/25" to 3 1/2" | Type A Arm | 16" | 16" | E | Cast Iron | 3 1/4" | €1,582.08 | |
| O | 1006337 | 18 2/5" | 22/25" to 3 1/2" | Type A Arm | 18" | 18" | E | Cast Iron | 3 1/4" | €1,857.14 | |
| P | 1008283 | 30 2/5" | 1" to 4" | Type D Arm | 30" | 30" | F | Cast Iron | 3 1/4" | €3,109.85 | |
| Q | 1006360 | 36 2/5" | 1" to 4" | Type D Arm | 36" | 36" | F | Cast Iron | 3 1/4" | €5,000.02 | |
| Q | 1006378 | 44 2/5" | 1" to 4" | Type D Arm | 44" | 44" | F | Cast Iron | 3 1/4" | €4,759.49 |
