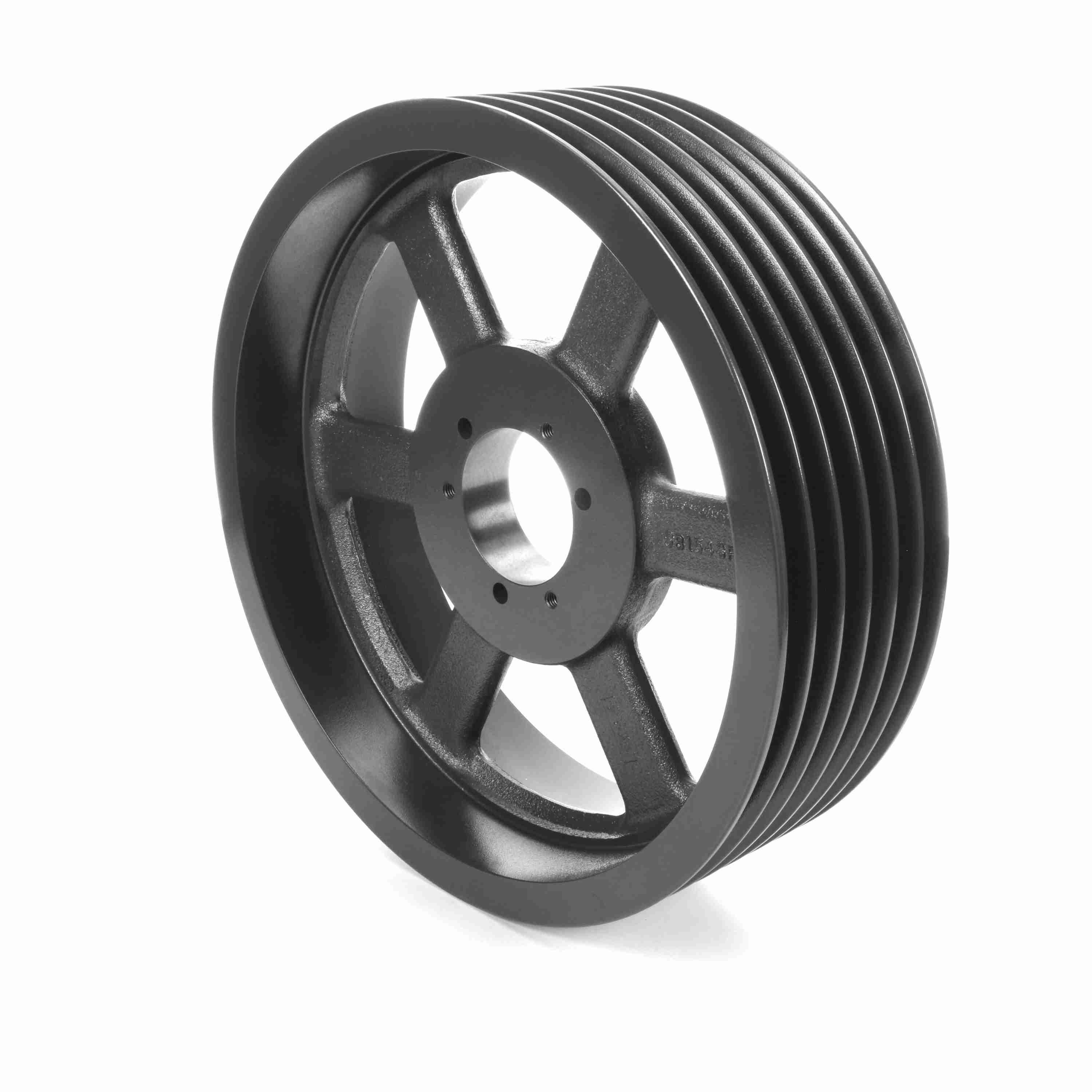

BROWNING 1005719 6B154SF V-Belt Sheave, Multiple, Bushed Bore, 6 Groove, Cast Iron, 15-3/4 in OD, 1/2 to 2-15/16 in Bore Dia, 15.2 in A/15.7 in B Pitch Dia, SF Bushing Type
15 3/4"
Get it by Monday, Aug 17
€1,480.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2 15/16" |
| Bore Type | QD |
| Bushing Type | SF |
| Face Width | 4 3/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 15 2/5" |
| Min. Pitch Dia. | 15" |
| Min. Plain Bore | No |
| No. Of Grooves | 6 |
| Outside Dia. | 15 3/4" |
| Overall Length | 15 3/4" |
| Pitch Dia. | 15 1/5" |
| Pitch Dia. (b) | 15.7" |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Arm |
Shipping Info:
| Ship weight (kg) | 23.59 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 40.01 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1005743 | 19 4/5" | 22/25" to 3 1/2" | Type A Arm | 20" | 19 3/5" | 20.3" | E | Cast Iron | €2,233.34 | |
 |
1005685 | 10 4/5" | 1/2" to 2 15/16" | Type A Arm | 11" | 10 3/5" | 11.3" | SF | Cast Iron | €1,121.66 | |
 |
1005644 | 7 1/5" | 1/2" to 2 15/16" | Type A Solid | 7 2/5" | 7" | 7.7" | SF | Cast Iron | €1,097.05 | |
 |
1005586 | 5 4/5" | 1/2" to 2 5/8" | Type A Solid | - | - | 6.3" | SK | Cast Iron | €569.87 | |
|
1005750 | 24 4/5" | 22/25" to 3 1/2" | Type A Arm | 25" | 24 3/5" | 25.3" | E | Cast Iron | €3,629.20 | |
|
1005768 | 29 4/5" | 22/25" to 3 1/2" | Type A Arm | 30" | 29 3/5" | 30.3" | E | Cast Iron | €2,984.71 | |
 |
1005628 | 6 3/5" | 1/2" to 2 5/8" | Type A Solid | - | - | 7.1" | SK | Cast Iron | €642.22 |
