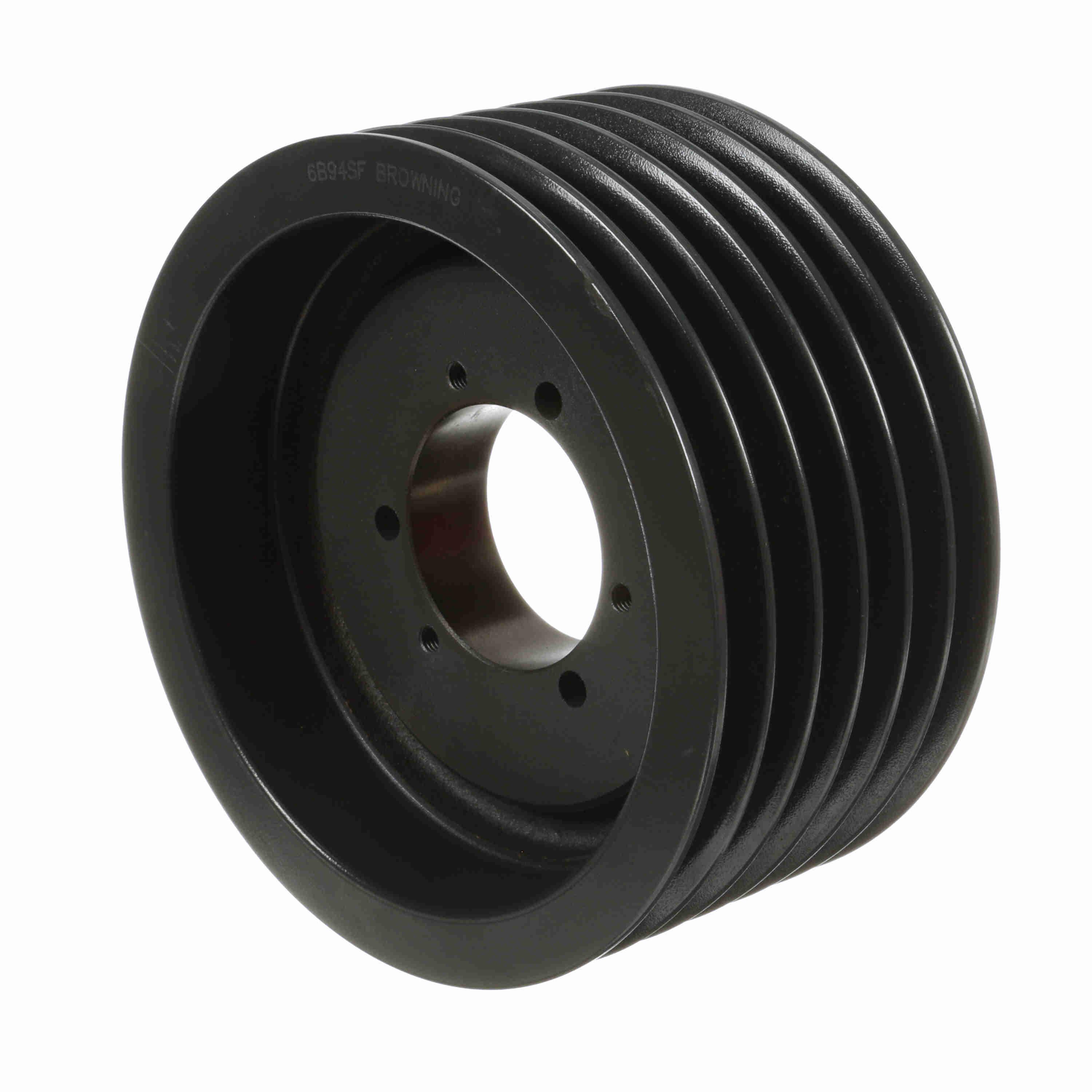

BROWNING 1005677 6B94SF V-Belt Sheave, Multiple, Bushed Bore, 6 Groove, Cast Iron
9 3/4"
Get it by Friday, Feb 13
€1,387.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2 15/16" |
| Bore Type | QD |
| Bushing Type | SF |
| Face Width | 4 3/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 9 2/5" |
| Min. Pitch Dia. | 9" |
| Min. Plain Bore | No |
| No. Of Grooves | 6 |
| Outside Dia. | 9 3/4" |
| Overall Length | 9 3/4" |
| Pitch Dia. (a) | 9 1/5" |
| Pitch Dia. (b) | 9.7" |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Arm |
Shipping Info:
| Ship weight (kg) | 13.63 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 25.55 |
| Ship width (cm) | 25.55 |
| Country of Origin | US |
Product Variants
| Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 1005453 | 3 3/4" | 1/2" to 2" | 3 3/4" | Type E Solid | QD | Cast Iron | 4 3/4" | €564.07 | |
| 1005461 | 3.95" | 1/2" to 2" | 3.95" | Type E Solid | QD | Cast Iron | 4 3/4" | €548.16 | |
| 1005487 | 4.35" | 1/2" to 2" | 4.35" | Type E Solid | QD | Cast Iron | 4 3/4" | €570.09 | |
| 1005503 | 4 3/4" | 1/2" to 2" | 4 3/4" | Type E Solid | QD | Cast Iron | 4 3/4" | €327.48 | |
| 1005537 | 5.35" | 1/2" to 2" | 5.35" | Type A Solid | QD | Cast Iron | 4 3/4" | €345.35 | |
| 1005511 | 4.95" | 1/2" to 2" | 4.95" | Type A Solid | QD | Cast Iron | 4 3/4" | €702.68 | |
| 1005529 | 5.15" | 1/2" to 2" | 5.15" | Type A Solid | QD | Cast Iron | 4 3/4" | €715.23 |
