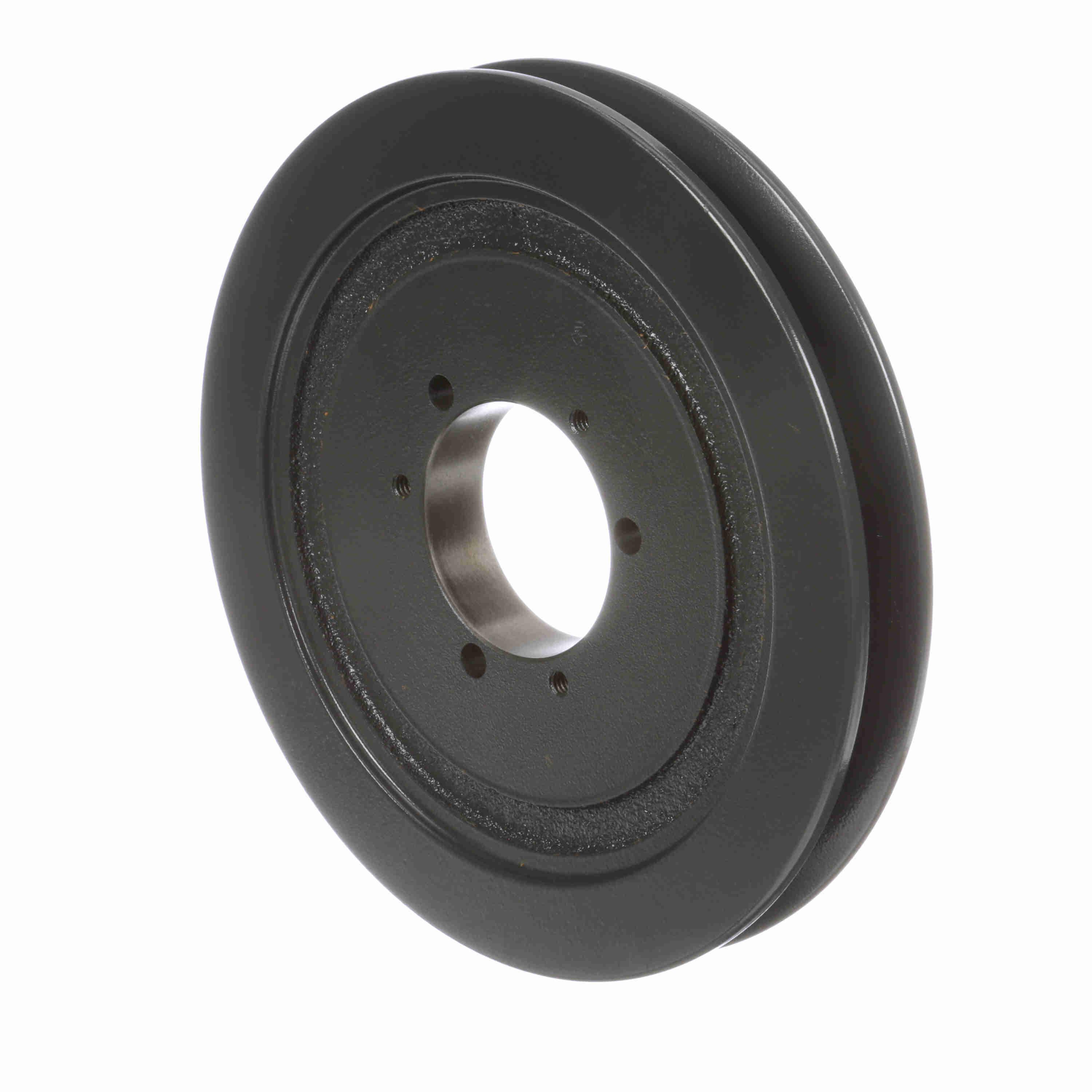

BROWNING 1004027 1B74SDS V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, Cast Iron
Item: BA2FJTModel: 1004027Cross Ref: 1B74SDS
7 In Stock
7 3/4"
Ships within 2 days via
€303.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2" |
| Bore Type | QD |
| Bushing Type | SDS |
| Face Width | 1" |
| Hub Projection | 0.60625" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7 2/5" |
| Min. Pitch Dia. | 7" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 7 3/4" |
| Overall Length | 1.60625" |
| Pitch Dia. (a) | 7 1/5" |
| Pitch Dia. (b) | 7.7" |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type D3 |
| Weight | 3.065 Kg |
Shipping Info:
| Ship weight (kg) | 3.04 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 4.09 |
| Ship width (cm) | 19.69 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1004084 | 13.95" | 1/2" to 2" | 1" | 1.60625" | Type D3 | QD | Cast Iron | €301.91 | |
 |
1004068 | 11.35" | 1/2" to 2" | 1" | 1.60625" | Type D3 | QD | Cast Iron | €401.02 | |
 |
1004118 | 18 17/25" | 1/2" to 2 5/8" | 1" | 1 25/32" | Type D3 | QD | Cast Iron | €725.53 | |
 |
1003839 | 3 3/4" | 1/2" to 1 5/8" | 7/8" | 1.575" | Type E1 | QD | Cast Iron | €141.08 | |
 |
1004019 | 7.35" | 1/2" to 2" | 7/8" | 1.48125" | Type D3 | QD | Cast Iron | €250.54 | |
 |
1004076 | 12 3/4" | 1/2" to 2" | 1" | 1.60625" | Type D3 | QD | Cast Iron | €283.03 | |
 |
1004035 | 8.35" | 1/2" to 2" | 1" | 1.60625" | Type D3 | QD | Cast Iron | €314.72 |
