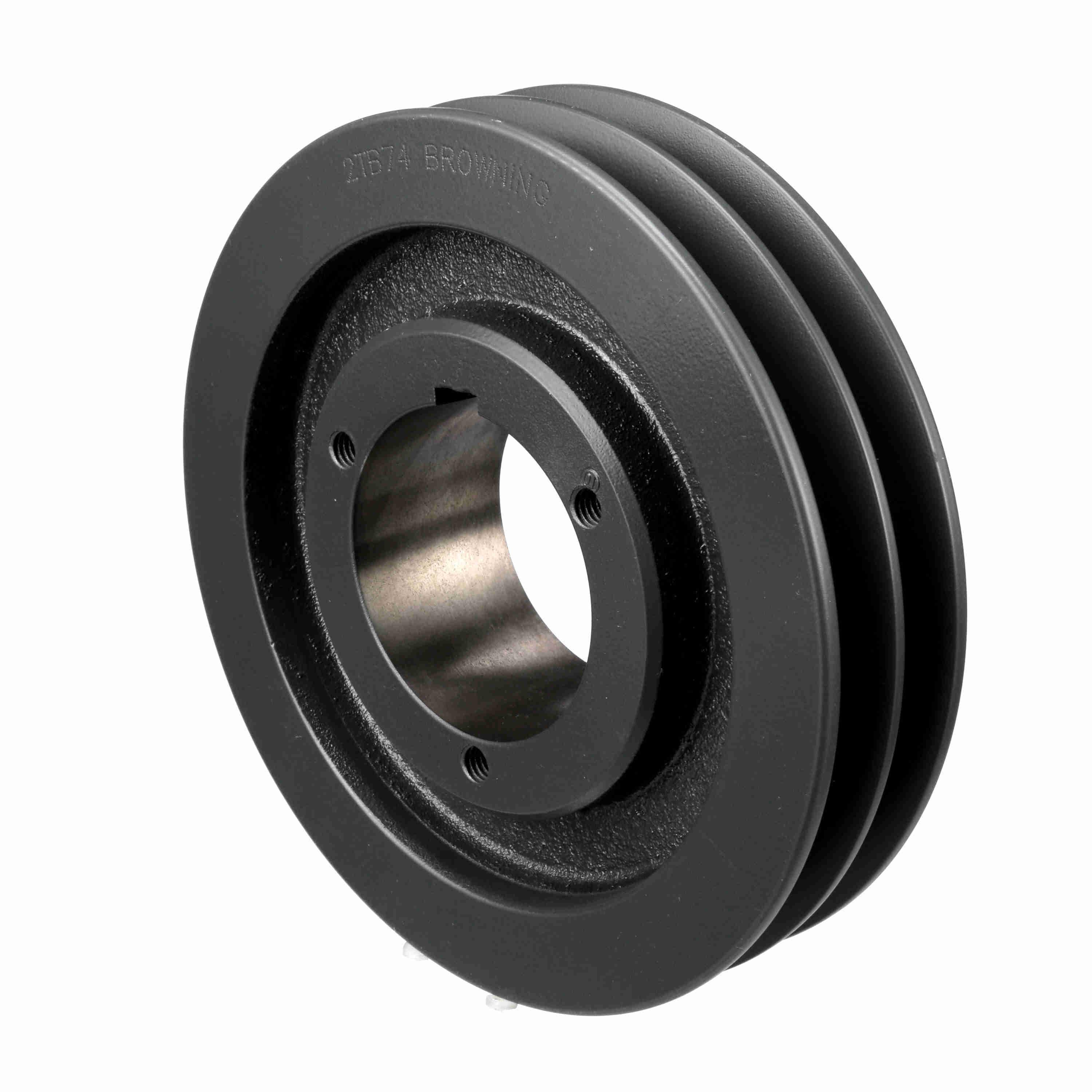

BROWNING 1002336 2TB74 V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron, 7.68 in OD, 3/4 to 2-11/16 in Bore Dia, 7.2 in A/7.7 in B Pitch Dia, Q1 Bushing Type
7 3/4"
Get it by Friday, Aug 14
€214.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 1 3/4" |
| Hub Projection | 27/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7 2/5" |
| Min. Pitch Dia. | 7" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 7 3/4" |
| Overall Length | 2 53/64" |
| Pitch Dia. | 7 1/5" |
| Pitch Dia. (b) | 7.7" |
| Product Datasheet | browning-1097849.pdf |
| Series | TB Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
Shipping Info:
| Ship weight (kg) | 5.27 |
| Ship height (cm) | 19.51 |
| Ship length (cm) | 7.19 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Max. Pitch Dia. | Min. Pitch Dia. | Type | Pitch Dia. (b) | Bushing Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

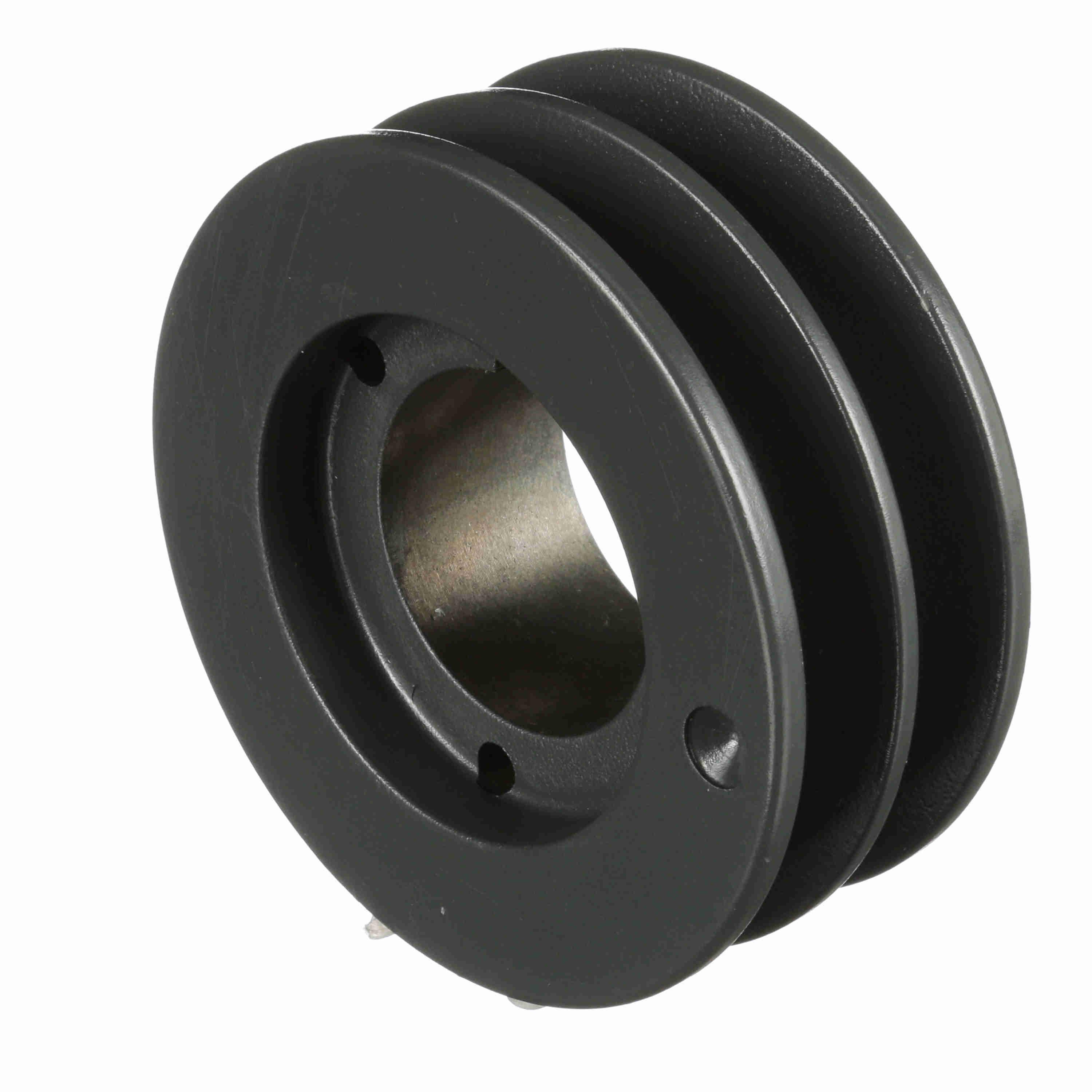

1001379 | 3 4/5" | 1/2" to 1 3/4" | 4" | 3 3/5" | Type 5 | 4.3" | P1 | 5/8" | €153.62 | |
 |

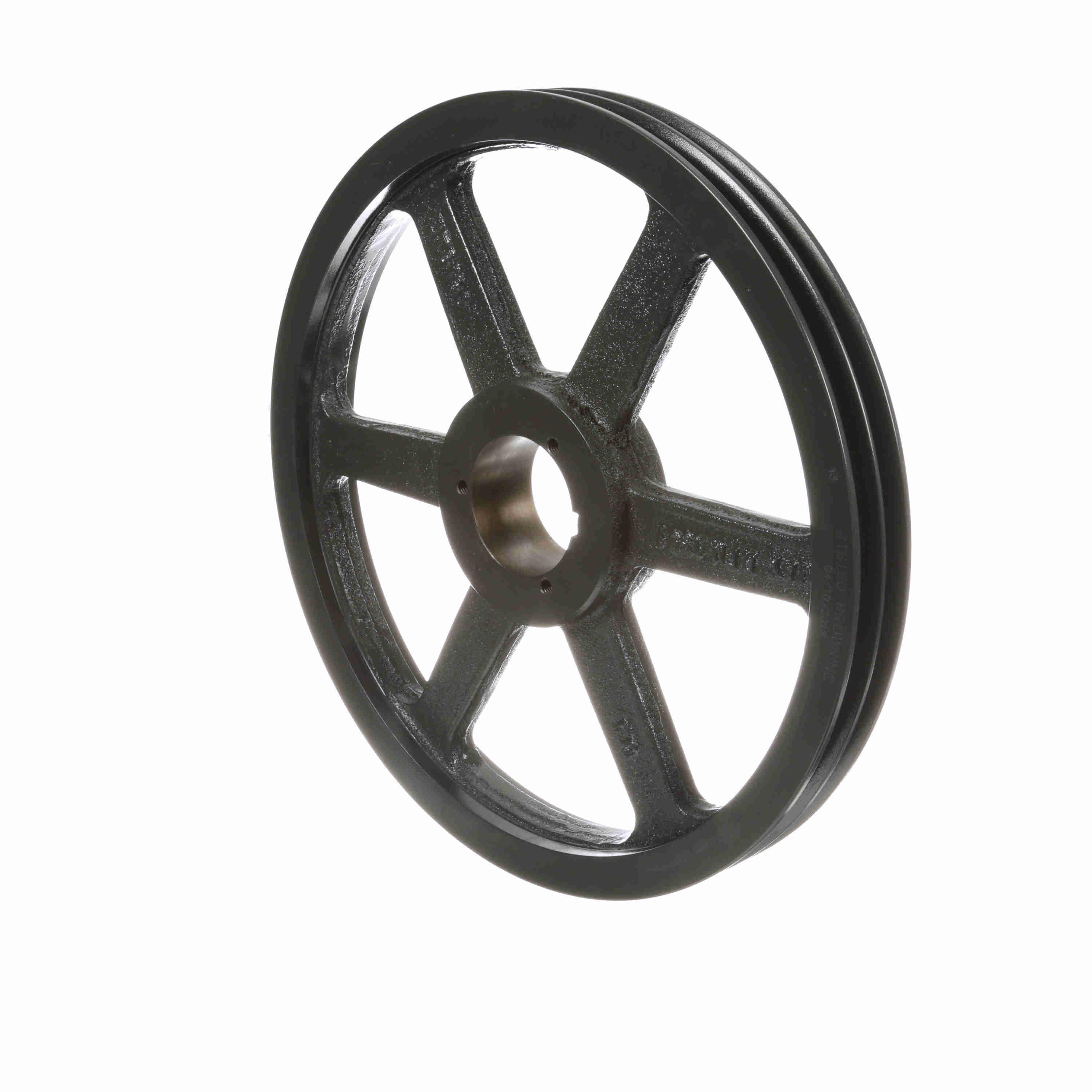

1002872 | 15 4/5" | 3/4" to 2 11/16" | 16" | 15 3/5" | Arm Type 13 | 16.3" | Q1 | 27/32" | €532.35 | |
 |

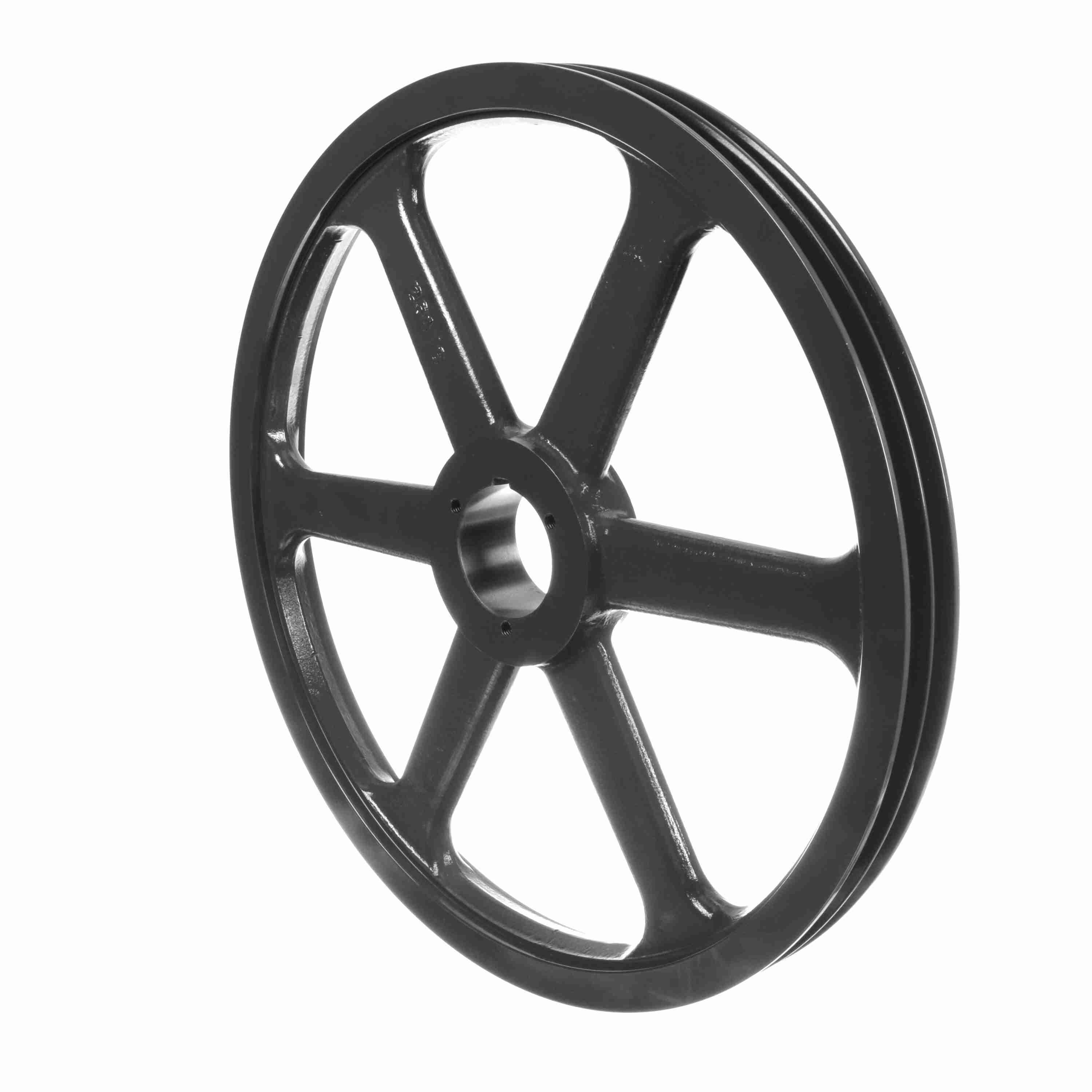

1002997 | 19 4/5" | 3/4" to 2 11/16" | 20" | 19 1/2" | Arm Type 13 | 20.3" | Q1 | 27/32" | €744.28 | |
 |

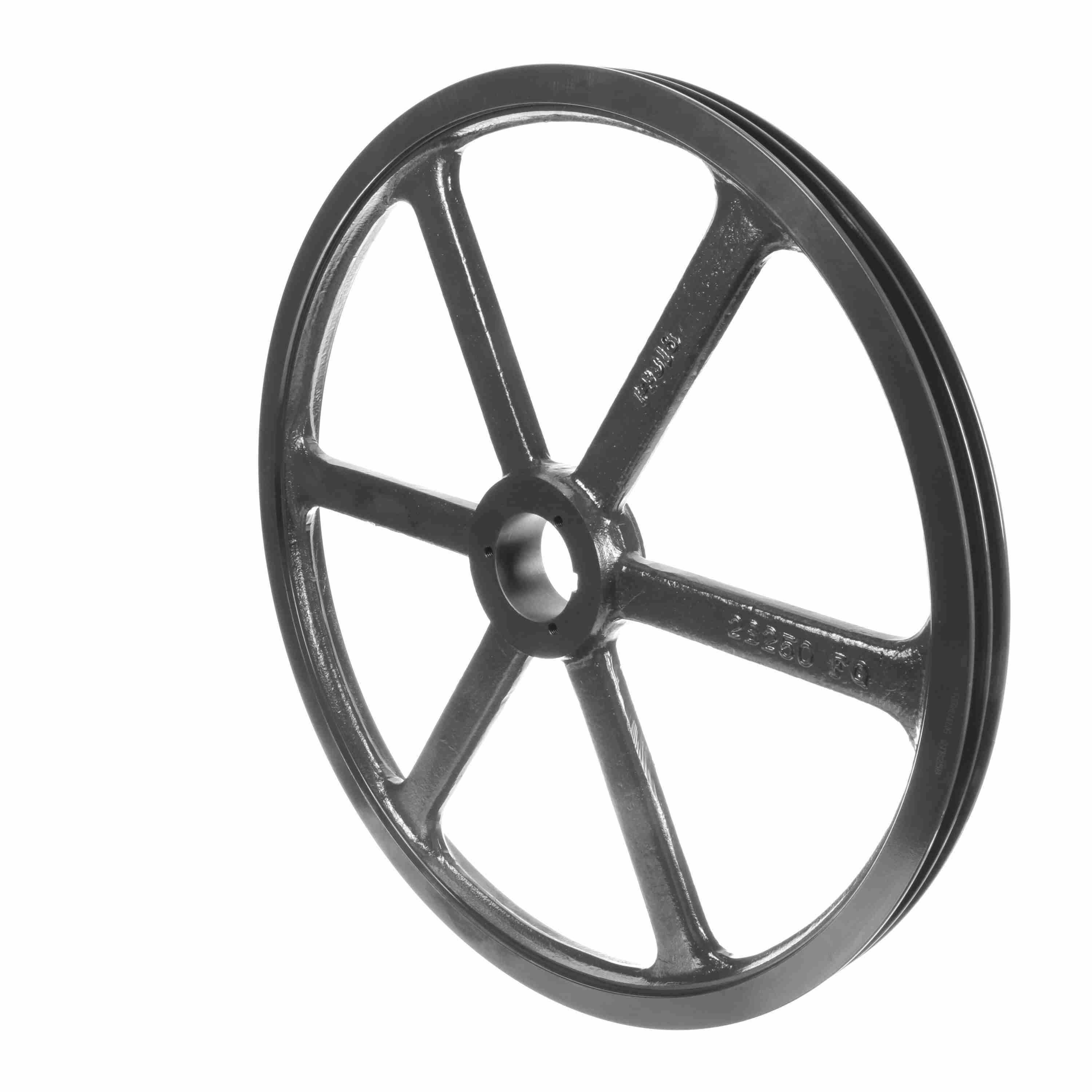

1003052 | 24 4/5" | 3/4" to 2 11/16" | 25" | 24 1/2" | Arm Type 13 | 25.3" | Q1 | 27/32" | €1,278.88 | |
 |

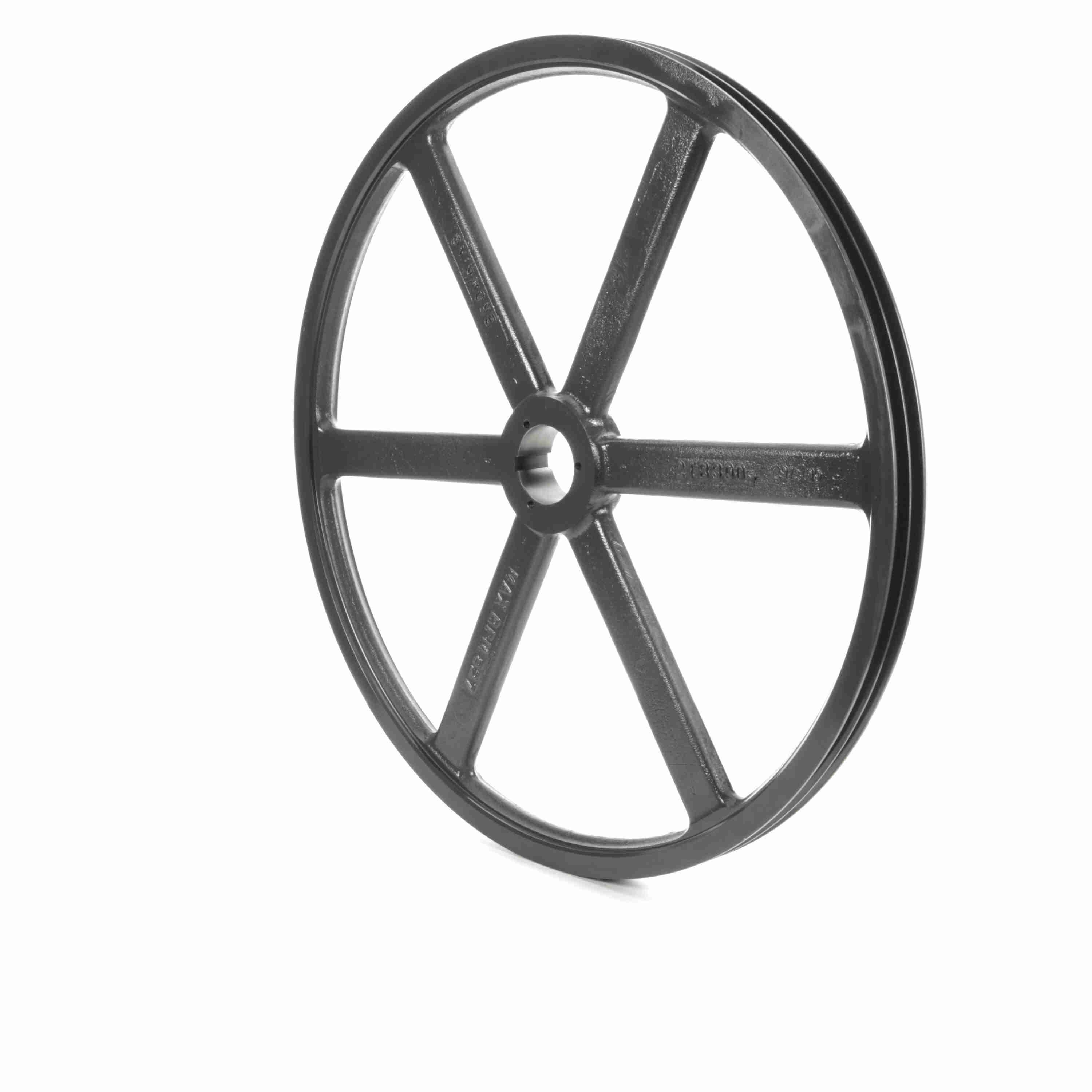

1003110 | 29 4/5" | 3/4" to 2 11/16" | 30" | 29 1/2" | Arm Type 13 | 30.3" | Q1 | 27/32" | €1,524.66 | |
 |

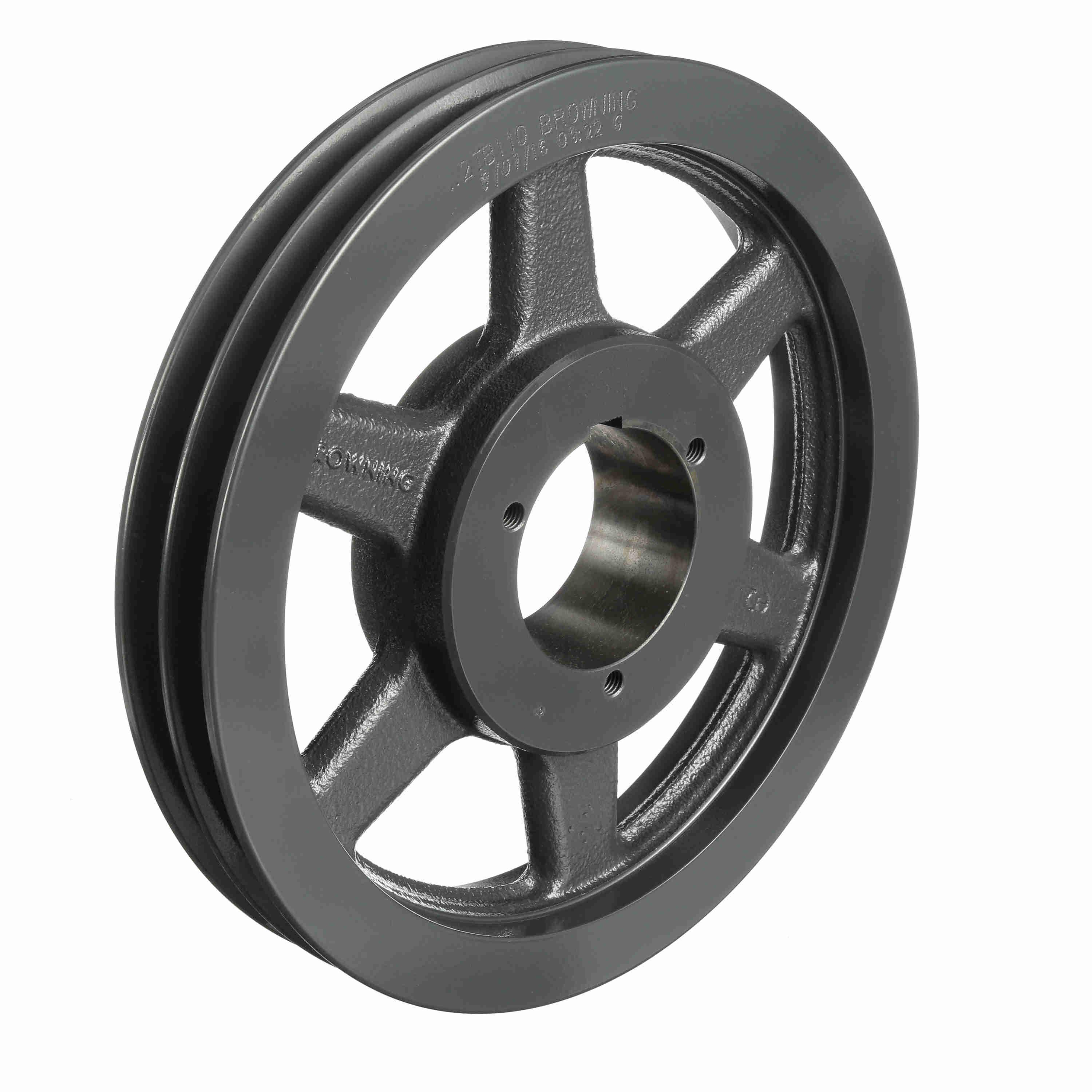

1003177 | 37 4/5" | 3/4" to 2 11/16" | - | - | Arm Type 13 | 38.3" | Q1 | 27/32" | €1,708.25 | |
 |

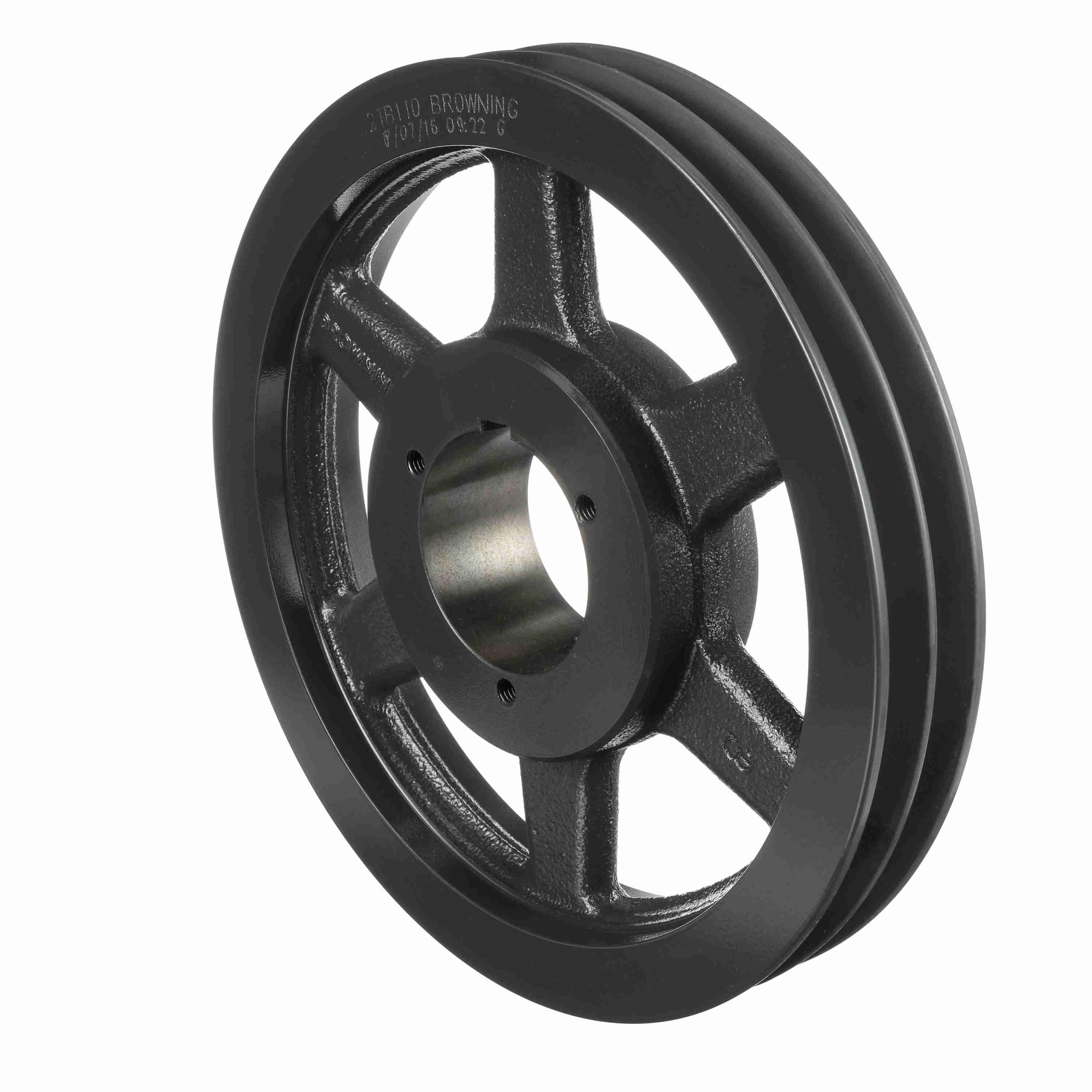

1002633 | 10 4/5" | 3/4" to 2 11/16" | 11" | 10 3/5" | - | 11.3" | Q1 | 27/32" | €266.08 |
