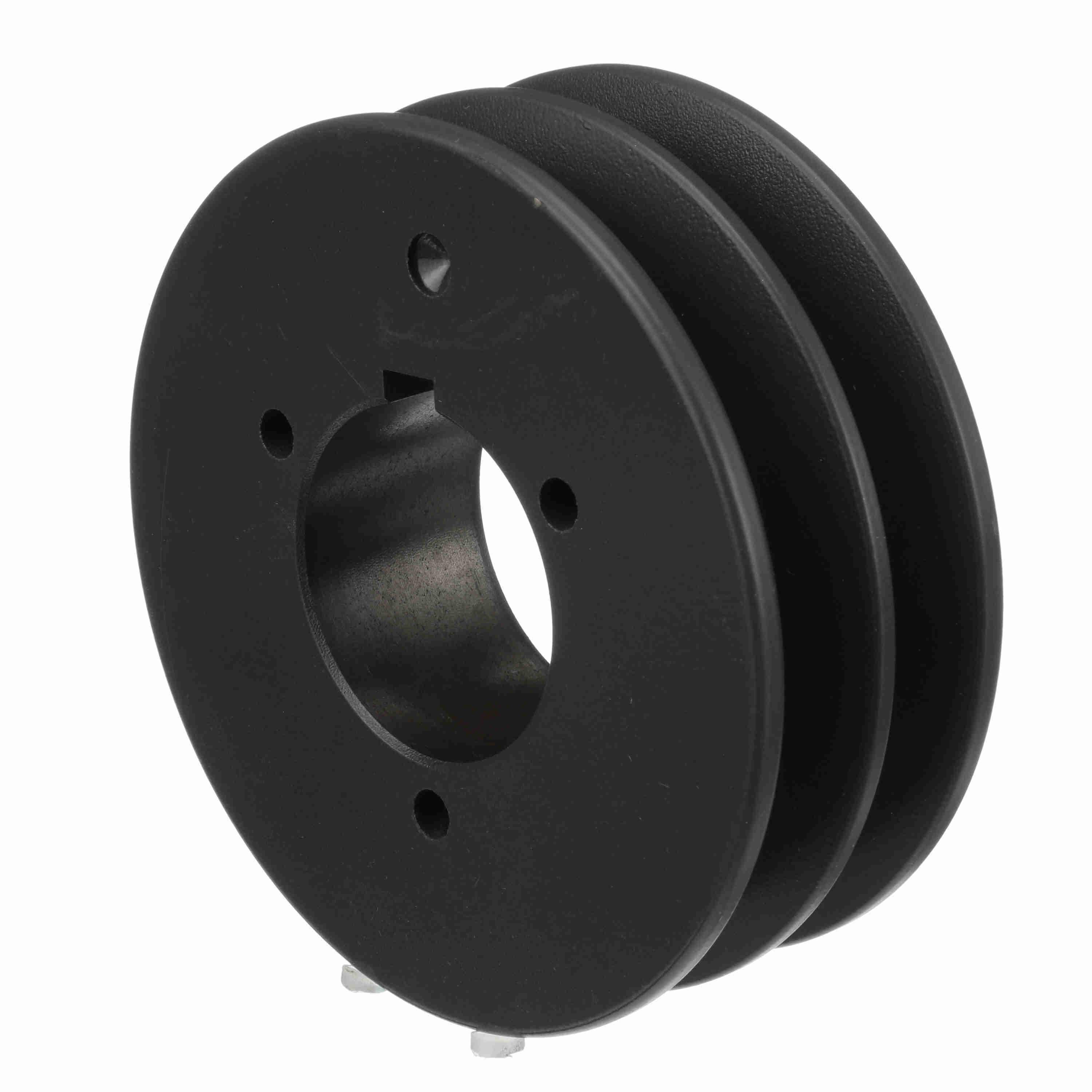

BROWNING 1001494 2TB44 V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron
Item: AZ9DDFModel: 1001494Cross Ref: 2TB44
7 In Stock
4 3/4"
Ships within 2 days via
€185.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P1 |
| Face Width | 1 3/4" |
| Hub Projection | 3/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 4 2/5" |
| Min. Pitch Dia. | 4" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 4 3/4" |
| Overall Length | 2 9/64" |
| Pitch Dia. (a) | 4 1/5" |
| Pitch Dia. (b) | 4.7" |
| Series | TB Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Solid Type 13 |
| Weight | 1.964 Kg |
Shipping Info:
| Ship weight (kg) | 1.96 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 5.44 |
| Ship width (cm) | 12.07 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1001379 | 4.35" | 1/2" to 1 3/4" | 2 37/64" | Type 5 | Split Taper | Cast Iron | 1 3/4" | €153.62 | |
 |
1002872 | 16.35" | 3/4" to 2 11/16" | 2 53/64" | Arm Type 13 | Split Taper | Cast Iron | 1 3/4" | €532.35 | |
 |
1002997 | 20.35" | 3/4" to 2 11/16" | 2 53/64" | Arm Type 13 | Split Taper | Cast Iron | 1 3/4" | €744.28 | |
 |
1003052 | 25.35" | 3/4" to 2 11/16" | 2 53/64" | Arm Type 13 | Split Taper | Cast Iron | 1 3/4" | €1,278.88 | |
 |
1003110 | 30.35" | 3/4" to 2 11/16" | 2 53/64" | Arm Type 13 | Split Taper | Cast Iron | 1 3/4" | €1,524.66 | |
 |
1003177 | 38.35" | 3/4" to 2 11/16" | 2 53/64" | Arm Type 13 | Split Taper | Cast Iron | 1 3/4" | €1,708.25 | |
 |
1002633 | 11.35" | 3/4" to 2 11/16" | 2 53/64" | - | Split Taper | Cast Iron | 1 3/4" | €266.08 |
