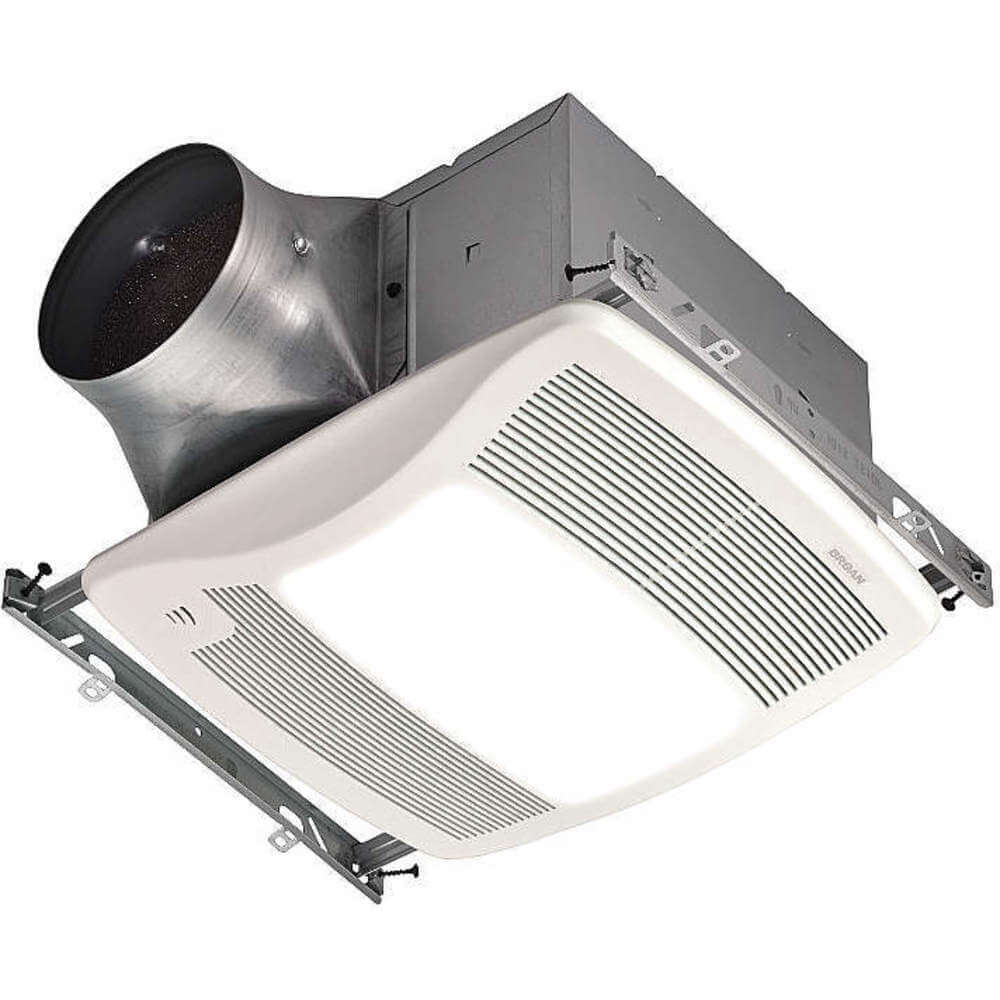

BROAN NUTONE ZB110HL Bathroom Fan 110 Cfm 1a 12w
Get it by Monday, Jul 6
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bathroom Fan |
| Amps | 0.5A , 1A |
| Cfm @ 0.100 In Sp | 110 CFM |
| Discharge | Horizontal |
| Discharge Direction | Horizontal |
| Duct Shape | Round |
| Exhaust Airflow @ 0.250 In Sp | 110 CFM |
| For Cut Out Length | 12" |
| For Cut-out Width | 11" |
| For Duct Dia. | 6" |
| Frequency | 60 Hz |
| Green Certification Or Other Recognition | Energy Star Rated |
| Grille Color | White |
| Grille Length | 13-1/8" |
| Grille Length | 14" |
| Grille Material | Polymeric |
| Grille Material | White Polymeric |
| Grille Width | 14" |
| Grille Width | 14 1/2" |
| Heater | No |
| Housing Depth | 10 1/2" |
| Housing Finish | Galvanized |
| Housing Height | 7 5/8" |
| Housing Material | Steel |
| Included | (2) Energy Star Qualified 18W Gu24, Expandable Mounting Frame |
| Included Grill | Yes |
| Included Light Bulbs | Yes |
| Light Color Temp. | Cool White |
| Lighted | With Light |
| Max. Coverage Area | 105 sq. ft. |
| Max. Exhaust Airflow @ 0.100 In Sp | 110 CFM |
| Max. Noise Level @ 0.100 In Sp @ 5 Ft. | 0.3 sones |
| Motor Speed | 640 RPM |
| Motor Type | Brushless Dc Electronically Controlled Digital Motor |
| Mounting Location | Ceiling |
| Mounting Type | Frame Screws |
| No. Of Bulbs | 1 |
| No. Of Speed | Variable |
| Nominal Rpm | 640 |
| Nominal Speed | 640 RPM |
| Phase | 1 |
| Primary Light Type | Integrated LED |
| Primary Light Watts | 18 W |
| Primary Lighting Technology | LED |
| Profile Height Family | Medium |
| Profile Width Family | Single Wide |
| Roomside Installation | Yes |
| Sensor Type | Humidity |
| Sones @ 0.100 In Sp @ 5 Ft. | 0.3 sones |
| Sones @ 0.100-in. Sp @ 5 Ft. | 0.3 |
| Vent Design | Ducted |
| Voltage | 120V AC |
| Watts | 12 W |
Shipping Info:
| Ship weight (kg) | 6.19 |
| Ship height (cm) | 37.78 |
| Ship length (cm) | 35.24 |
| Ship width (cm) | 37.78 |
| HS code | 8414513000 |
Product Details:
- Humidity Sensing (Yes)
- Lighted (Yes)
- Motion Sensing (No)
- Night-Light (Yes)
