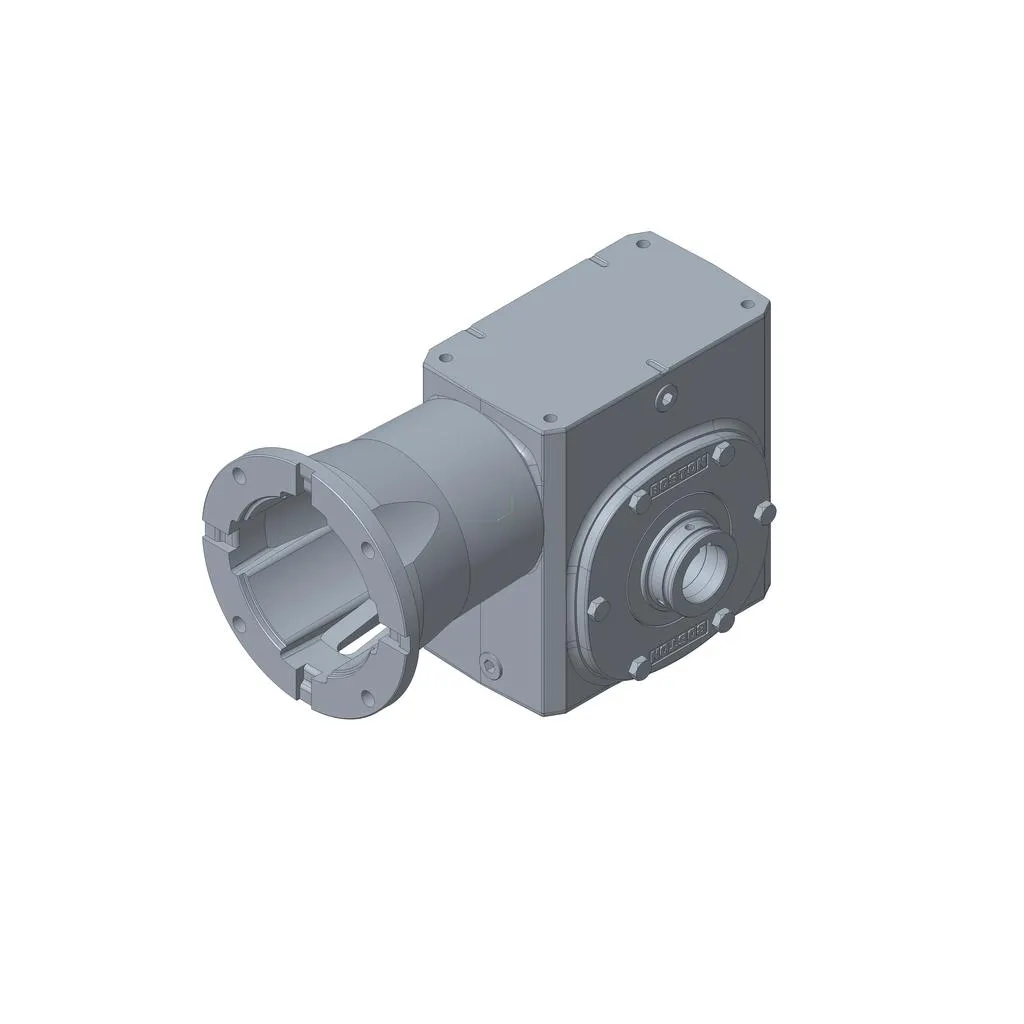

BOSTON GEAR SRF726-10-B7-G Reducer, Single Reduction, 10:1 Ratio, No Base, G Assembly
Get it by Friday, Aug 28
€3,178.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Center Distance | 2.62" |
| Color | Gray |
| Efficiency | 0.95% |
| Finish | Standard Paint |
| Gear Ratio | 10:1 |
| Height | 8" |
| Input Dia. | 7/8" |
| Input Speed | 175 RPM |
| Input Style | Coupled Flange |
| Key Way Size | 3/16" x 3/32" |
| Length | 7.38" |
| Lubrication | Klubersynth UH1 6-460 |
| Material | Cast Iron |
| Max. Input Hp | 3 47/50 hp |
| Motor Hp | 3 hp |
| Mounting Type | No Base |
| Output Dia. | 1 1/8" |
| Output Hp | 3 37/50 hp |
| Output Type | Solid Projecting Shaft |
| Product Series | 700 Series |
| Torque | 1345 lbs.-in. |
| Type | Single Reduction |
| Width | 6.47" |
Shipping Info:
| Ship weight (kg) | 25.7 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Output Speed | Output Torque | Output Dia. | Input Dia. | Output Hp | Max. Input Hp | Motor Hp | Input Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SRF718-10-B5-G | 175 RPM | 536 lbs.-in. | - | - | - | - | 1 1/2 hp | RF Coupled Flange | €2,056.47 | |
 |

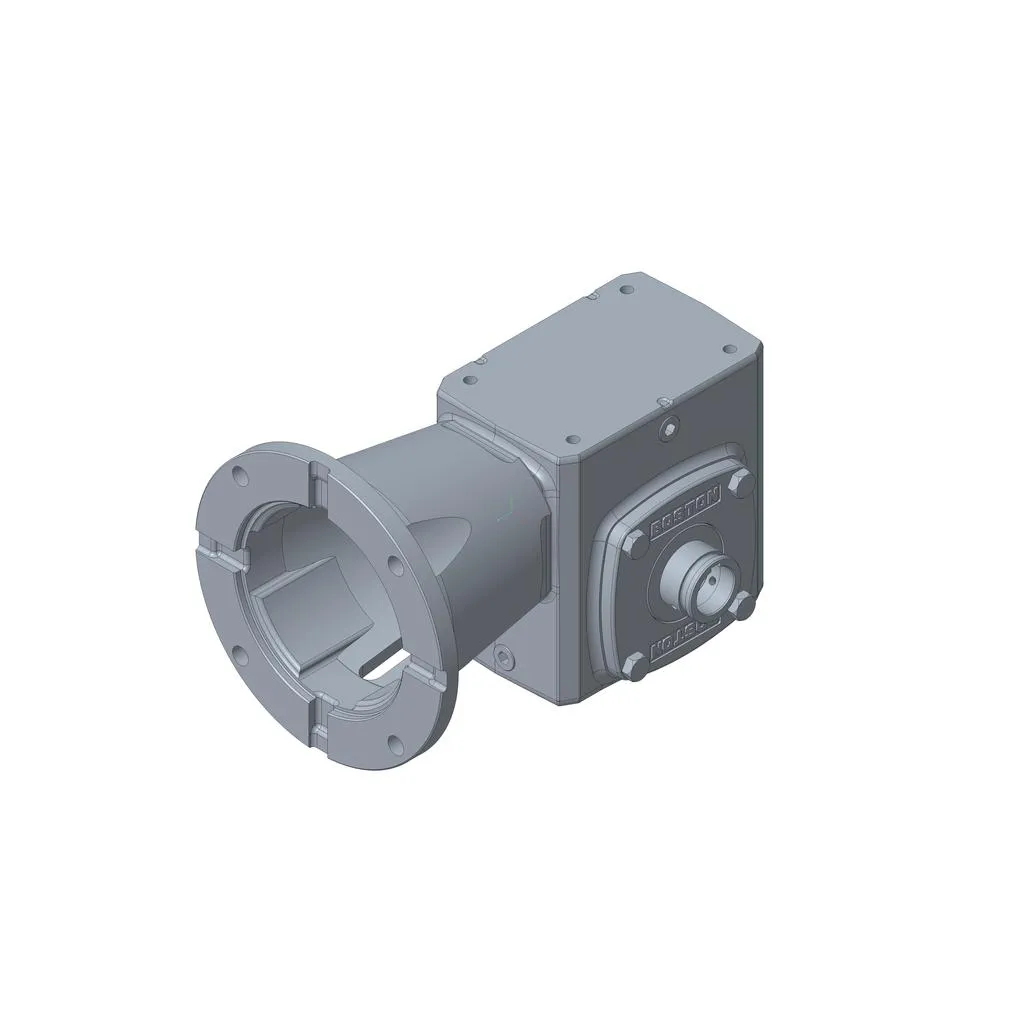

SRF718-15-B5-G | 116.7 RPM | 552 lbs.-in. | - | - | - | - | 1 hp | RF Coupled Flange | €1,910.12 | |
|
SRF718-20-B5-G | 87.5 RPM | 590 lbs.-in. | - | - | - | - | 1 hp | RF Coupled Flange | €1,910.12 | |
 |
SRF718-5-B5-G | - | - | 7/8" | 5/8" | 2 2/5 hp | 2 11/20 hp | 2 hp | Coupled Flange | €1,910.12 | |
 |
SRF718-60-B5-G | 29.2 RPM | 527 lbs.-in. | - | - | - | - | 33/100 hp | RF Coupled Flange | €1,910.12 | |
 |
SRF721-15-B5-G | 116.7 RPM | 841 lbs.-in. | - | - | - | - | 1 1/2 hp | RF Coupled Flange | €2,309.88 | |
|
SRF726-40-B5-G | 43.8 RPM | 1512 lbs.-in. | - | - | - | - | 1 hp | RF Coupled Flange | €3,178.78 |
