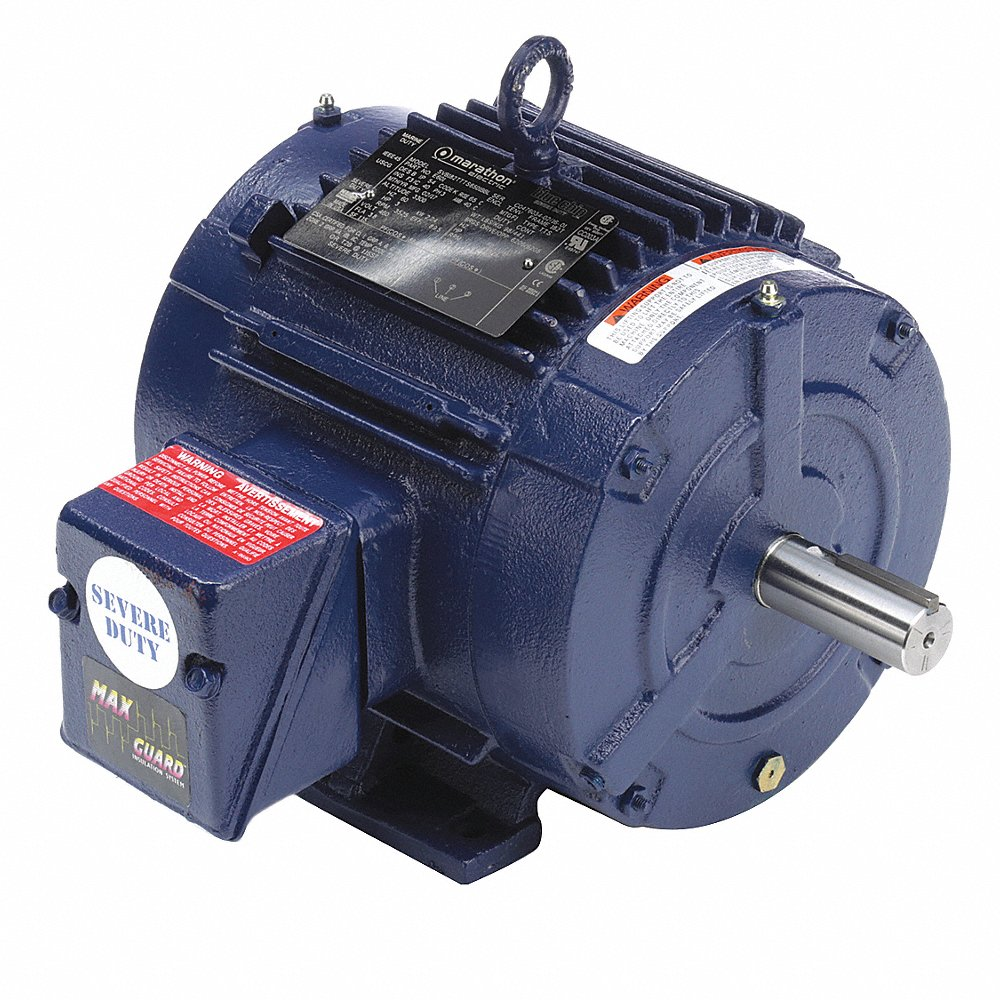

MARATHON MOTORS 182TTTCD6501 E601A / 182TTTCD6501AA Severe Duty Motor, Totally Enclosed Non-Ventilated, Rigid Base Mount, 3 HP, 460V AC
Get it by Tuesday, Aug 25
€1,596.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Severe Duty Motor |
| Ambient Temp. | 40°C |
| Amps | 3.5A |
| Assembly/box Mounting | F1, F2 |
| Design Code | B |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty | Continuous Duty |
| Efficiency | 89.5% |
| Electrical Type | Squirrel Cage Inverter Rated |
| Enclosure Type | Tenv |
| Frame Material | Cast Iron |
| Frame Size | 182T |
| Frequency | 60 Hz |
| Hazardous Location | Division 2 T2B |
| Hp | 3 hp |
| Insulation Class | Class H |
| Inverter Load | 1 |
| Ip Rating | IP55 |
| Kva Code | K |
| Motor Orientation | Horizontal |
| Mounting Type | Rigid Base |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing | Ball |
| Opp Drive End Bearing Size | 6205 |
| Output Kw | 2.2 kW |
| Phase | 3 |
| Power Factor | 89 |
| Resistance | 4.49 ohms |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 1.125" |
| Shaft Type | T |
| Speed | 3527 RPM |
| Starting Method | Line, Inverter |
| Thermal Protection | None |
| Voltage | 460V |
Shipping Info:
| Ship weight (kg) | 46.35 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 41.91 |
| Country of Origin | MX |
