BOSTON GEAR RFWC752-600E-B5-G Reducer, 56C Size, 2 Inch Dia., Left Side
Get it by Tuesday, Sep 1
€8,319.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base To Centerline Of Output Shaft | 5 5/16" |
| Base To Shaft Center Height With High Vert. Base Kit | 8.63" |
| Base To Shaft Center Height With Low Vert. Base Kit | 6.38" |
| Base To Shaft Center Height With Std. Base Kit | 6.44" |
| Bolt Center | 11" x 5 13/16" |
| Bolt Centers With Std. Base Kit | 14 1/8" x 8 3/8" |
| Bolt Centers With Vertical Base Kits | 18" x 10" |
| Bore Code | B5 |
| Box Height | 13 3/4" |
| Box Length | 9 51/64" |
| Box Width | 18 35/64" |
| Center Distance | 5 5/32" |
| Family Name | RFWC |
| Fan Cooled | No |
| Frame Size | 56C |
| Housing Material | Cast Iron |
| Hp @ Speed | 1 hp @ 1800 RPM |
| Input (shaft Or Bore) Size | 5/8" |
| Input Configuration | C Face Coupled |
| Key Way Size | 3/16" x 3/32" |
| Max. Overhung Load @ 1750 Rpm | 2200 lbs.-in. |
| Max. Thrust Load @ 1150 Rpm | 1900 lbs.-in. |
| Motor Application | General Purpose |
| Output (shaft Or Bore) Size | 2" |
| Output Configuration | Left Output |
| Output Speed @ 1750 Rpm Input | 2.92 RPM |
| Ratio | 600:1 |
| Reduction Type | Double Reduction |
| Shaft Assembly Code | G |
| Torque Out @ 1750 Rpm | 13000 lbs.-in. |
| Washdown Duty | No |
| Worm Position | Universal, Right Angle |
Shipping Info:
| Ship weight (kg) | 113.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Output Speed | Output Torque | Ratio | Reduction Type | Motor Hp | Output Bore/shaft Dia. | Output Shaft | Input Power | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RFWC726-150-B5-G | 11.7 RPM | 1840 lbs.-in. | 150:1 | Double Reduction Right Angle (Wc/Wd) | 3/4 hp | 1.125" | G Solid Left Output | 0.56 hp | €3,993.19 | |
|
RFWC760-600E-B7-G | - | - | 600:1 | Double Reduction | - | - | - | - | €11,481.76 | |
 |
RFWC718-1200-B5-G | 1.5 RPM | 690 lbs.-in. | 1200:1 | Double Reduction Right Angle (Wc/Wd) | 17/100 hp | 0.875" | G Solid Left Output | 0.07 hp | €2,815.97 | |
 |

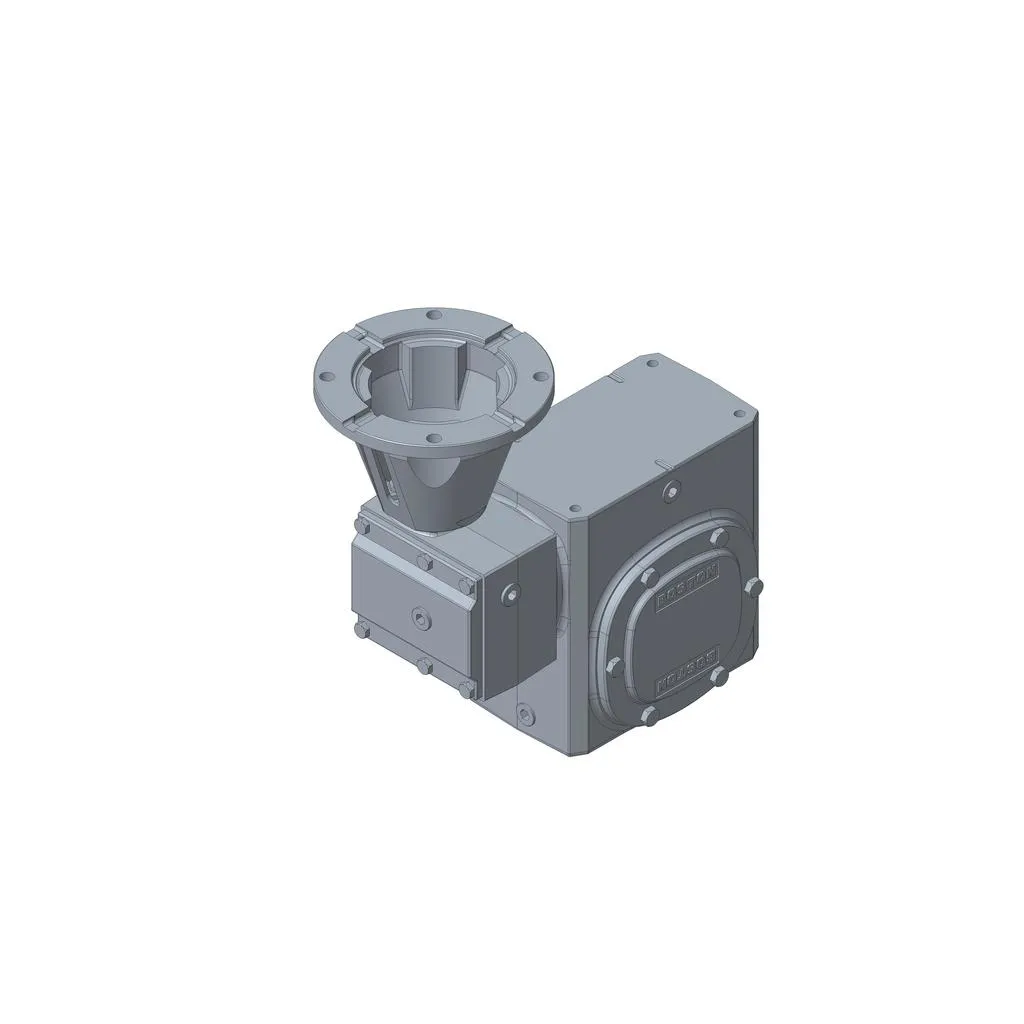

RFWC726-100-B5-J | 17.5 RPM | 1785 lbs.-in. | 100:1 | Double Reduction Right Angle (Wc/Wd) | 3/4 hp | 1.125" | J Solid Right Output | 0.75 hp | €3,993.19 | |
 |
rfwc713-400-b5-g | - | - | - | - | - | - | - | - | €2,509.99 |
