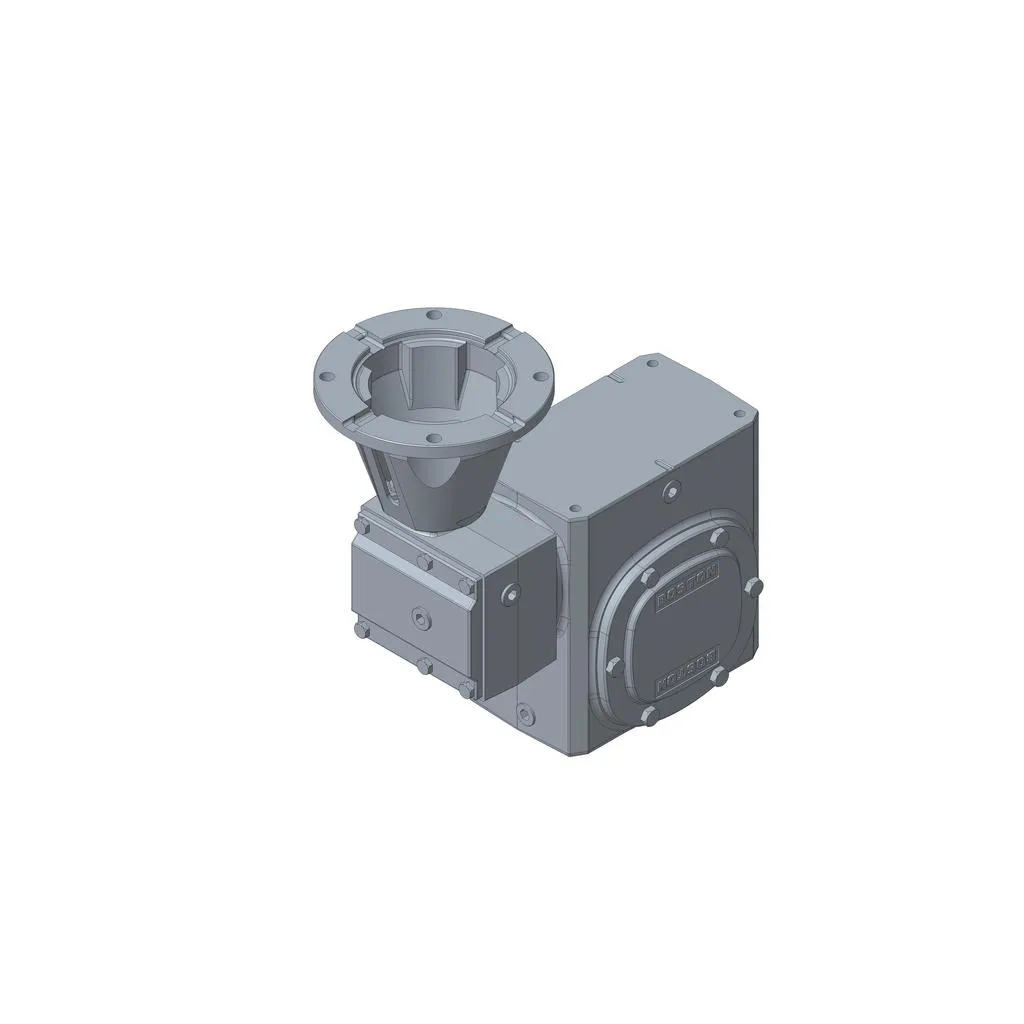

BOSTON GEAR RFWC726-100-B5-J Reducer, Double Reduction, 100:1 Ratio, No Base, J Assembly
Get it by Tuesday, Sep 1
€3,993.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Mounting Attachment | No Base |
| Efficiency Rating | 67% |
| Fan Cooled | No |
| Input Motor Hp | 0.75 hp At AGMA Service Class I |
| Input Power | 0.75 hp |
| Input Style | RF Coupled Flange |
| Motor Frame Size | B5-56C |
| Motor Hp | 3/4 hp |
| Output Bore/shaft Dia. | 1.125" |
| Output Direction | Right Hand |
| Output Shaft | J Solid Right Output |
| Output Speed | 17.5 RPM |
| Output Torque | 1785 lbs.-in. |
| Output Type | Solid |
| Pre-lubricated | No |
| Ratio | 100:1 |
| Recommended Lubrication | Klubersynth UH1 6-460 |
| Reducer Material/paint | Cast Iron, Standard Paint |
| Reduction Type | Double Reduction Right Angle (Wc/Wd) |
| Style | Right Angle |
Shipping Info:
| Ship weight (kg) | 28.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Output Speed | Output Torque | Ratio | Reduction Type | Motor Hp | Output Bore/shaft Dia. | Output Shaft | Input Power | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RFWC726-150-B5-G | 11.7 RPM | 1840 lbs.-in. | 150:1 | Double Reduction Right Angle (Wc/Wd) | 3/4 hp | 1.125" | G Solid Left Output | 0.56 hp | €3,993.19 | |
 |
RFWC752-600E-B5-G | - | - | 600:1 | Double Reduction | - | - | - | - | €8,319.43 | |
|
RFWC760-600E-B7-G | - | - | 600:1 | Double Reduction | - | - | - | - | €11,481.76 | |
 |
RFWC718-1200-B5-G | 1.5 RPM | 690 lbs.-in. | 1200:1 | Double Reduction Right Angle (Wc/Wd) | 17/100 hp | 0.875" | G Solid Left Output | 0.07 hp | €2,815.97 | |
 |
rfwc713-400-b5-g | - | - | - | - | - | - | - | - | €2,509.99 |
