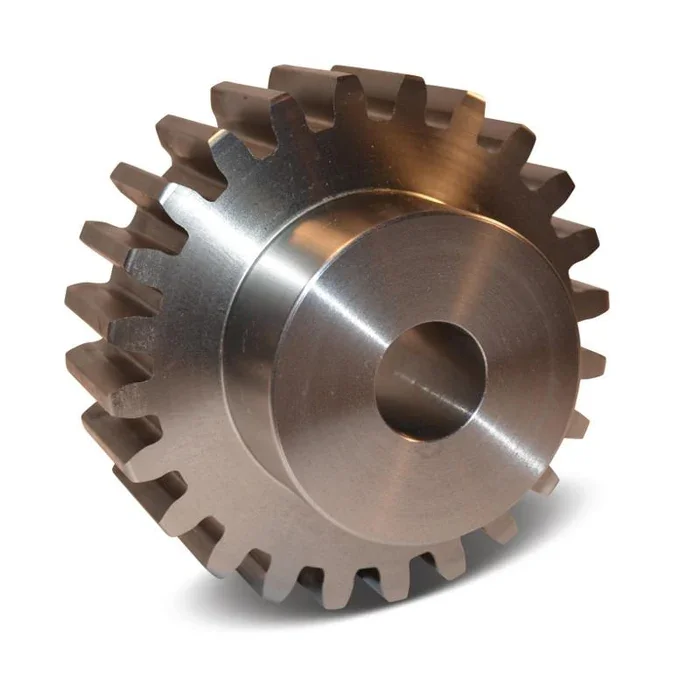

BOSTON GEAR NA20B-1/2 Spur Gear, 20 Diametral Pitch, 14 1/2 Deg. Pressure Angle, 20 Teeth, Steel
Item: AK3BXEModel: NA20B-1/2
7 In Stock
1/2"
20
Ships within 2 days via
€88.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 1/2" |
| Bore Type | Bored To Size |
| Diametral Pitch | 20 |
| Face Width | 3/8" |
| Hardened Teeth | Without Hardened Teeth |
| Hub Dia. | 0.84" |
| Keyway | With Setscrew |
| Length Through Bore | 3/4" |
| Material | Steel |
| Maximum Rated Torque | 29.7 N-m @ 1800 RPM |
| No. Of Teeth | 20 |
| Outer Dia. | 1.1" |
| Pitch Dia. | 1" |
| Pressure Angle | 14.5° |
| Product Datasheet | boston-gear-g101.pdf |
| Set Screw | Yes |
| Set Screw Size | 0.5 |
| Torque At 1200 Rpm | 34.8 lbs.-in. |
| Torque At 1800 Rpm | 29.7 lbs.-in. |
| Torque At 200 Rpm | 48.7 lbs.-in. |
| Torque At 300 Rpm | 46.9 lbs.-in. |
| Torque At 600 Rpm | 42 lbs.-in. |
| Torque At 900 Rpm | 38 lbs.-in. |
| Type | A |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Face Width | Diametral Pitch | Pitch Dia. | Hub Dia. | Bore Dia. | Hub Projection | Number Of Teeth | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NA12B | 3/8" | 20 | 3/5" | 0.45" | 0.313" | 0.38" | 12 | 0.7" | €48.67 | |
|
NA32 | 3/8" | 20 | 1 3/5" | 1.31" | 3/8" | 0.5" | 32 | 1.7" | €91.19 | |
 |
NA11B | 0.38" | 20 | - | - | - | - | - | - | €43.38 | |
 |
NA13B | 3/8" | 20" | 0.65" | 1/2" | 0.313" | 0.38" | - | - | €46.15 | |
 |
NA14B | 3/8" | 20" | 0.7" | 14/25" | 0.313" | 0.38" | - | - | €49.23 | |
 |
NA15B | 3/8" | 20" | 3/4" | 3/5" | 3/8" | 0.38" | - | - | €50.76 | |
 |
NA16B | 3/8" | 20" | 4/5" | 0.66" | 3/8" | 0.38" | - | - | €52.60 |
