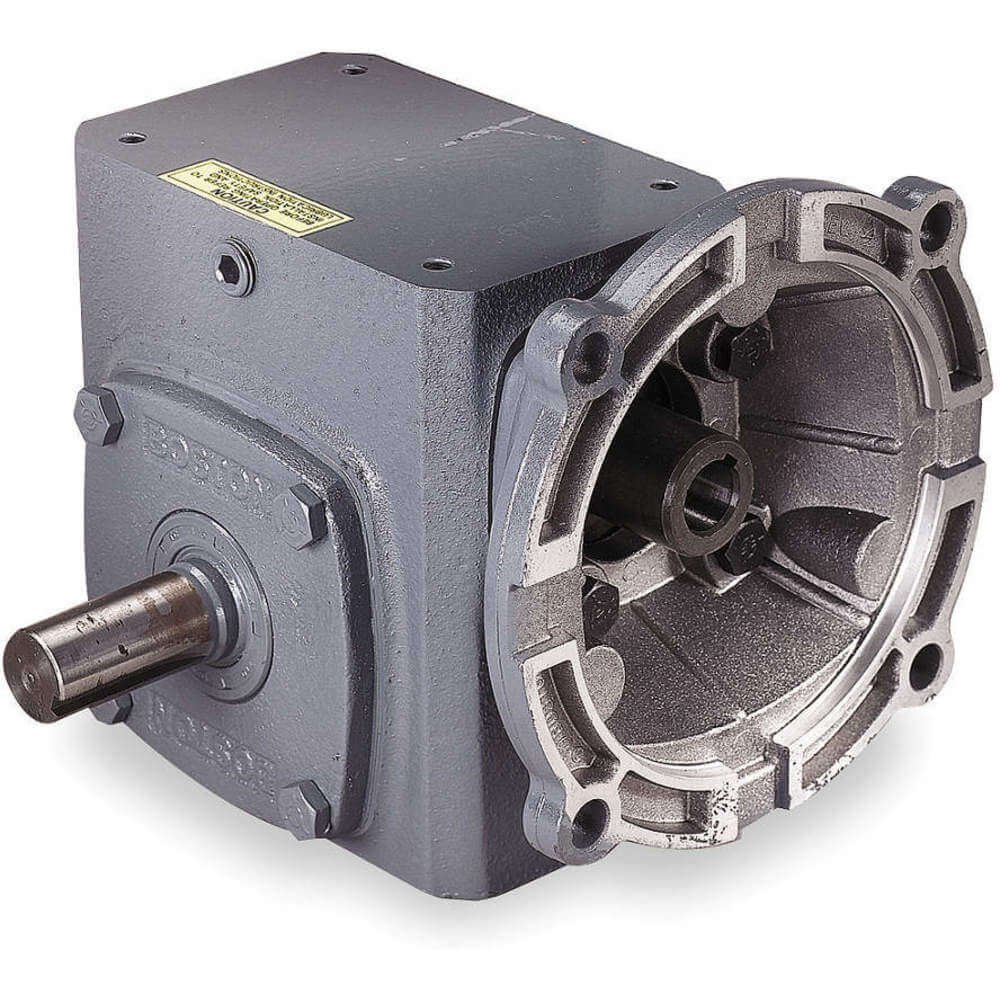

BOSTON GEAR F718-60-B5-G Speed Reducer C-face 56c 60 1
Get it by Tuesday, Dec 23
10.00% off
€1,202.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Base | Optional |
| Base To Center | 2.06" |
| Base To Shaft Center | 2.06" |
| Base Type | Optional |
| Bearing Type | Tapered Roller |
| Bore Dia. | 5/8" |
| Dimension U | 7/8" |
| Duty | Standard |
| Finish | Epoxy Paint |
| Frame | 56C |
| Gear Material | Steel |
| Gear Ratio | 601 |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated Epoxy Paint |
| Input Connection Type | C-Face |
| Input Rpm | 1750 RPM |
| Input Shaft Diameter | 5/8" |
| Lubrication | Klubersynth UH1 6-460 |
| Max. Input Hp | 3/10 hp |
| Max. Output Torque | 440 in.-lb. |
| Maximum Input Horsepower | 0.3 hp |
| Maximum Input Speed | 1750 RPM |
| Maximum Output Speed | 29 RPM |
| Maximum Output Torque | 440 lbs.-in. |
| Motor Frame Designation | 56C |
| Mounting Orientation | Any Angle |
| Mounting Type | Any Position |
| Nominal Output Rpm | 29 RPM |
| Number Of Stages | 1 |
| Output Shaft Dia. | 7/8" |
| Output Shaft Height | 2.062" |
| Output Shaft Type | Round |
| Output Torque @ 1/40 Hp | 3600 lbs.-in. |
| Overhung Load | 600 lbs. |
| Overhung Load Capacity | 600 lbs.-ft. |
| Pinion Material | Hardened Steel |
| Rotation | CW/CCW |
| Seal Type | Double Lip |
| Shaft Orientation | Right Angle |
| Single/double Output | Single Output |
| Solid/hollow Output Shaft | Solid |
| Speed Reducer Type | C Face |
| Standards | Agma |
| Worm Gear Material | Bronze |
Shipping Info:
| Ship weight (kg) | 10.04 |
| Ship height (cm) | 24.89 |
| Ship length (cm) | 21.89 |
| Ship width (cm) | 25.15 |
| HS code | 8483405010 |
| Country of Origin | US |
Product Variants
| Model | Max. Input Hp | Gear Ratio | Output Shaft Type | Motor Frame Designation | Base To Shaft Center | Overhung Load | Mounting Orientation | Worm Center Distance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| F710-50-B4-G | 4/25 hp | 501 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €956.54 | |
| F710-40-B4-G | 4/25 hp | 401 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €1,062.86 | |
| F710-30-B4-G | 4/25 hp | 301 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €1,013.06 | |
| F710-20-B4-G | 1/4 hp | 201 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €956.54 | |
| F710-15-B4-G | 1/4 hp | 151 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €956.54 | |
| F710-10-B4-G | 3/10 hp | 101 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €956.54 | |
| F710-5-B4-G | 3/10 hp | 51 | Round | 42CZ | 1.31" | 150 lbs. | Any Angle | 1" | €1,013.06 |
