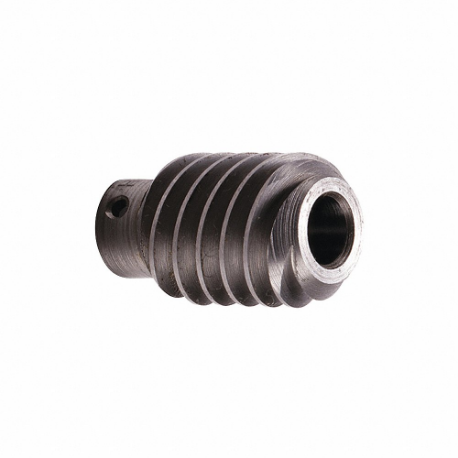

BOSTON GEAR DTH-1 Worm, 32 Diametral Pitch, 20 PA, .438 Pitch Dia., Right Hand, Steel-Unhardened
Item: AK2VMEModel: DTH-1
7 In Stock
Ships within 2 days via
€75.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Worm |
| Bore Dia. | 0.188" |
| Diametral Pitch | 32 DP |
| Direction Of Rotation | Right Hand |
| Face Width | 0.688" |
| Hub Dia. | 8/25" |
| Hub Projection | 0.19" |
| Keyway | No |
| Lead Angle | 8.13° |
| Material | Steel |
| No. Of Threads | 2 |
| Outside Dia. | 1/2" |
| Overall Length | 0.878" |
| Pitch Dia. | 0.438" |
| Pressure Angle | 20° |
| Product Datasheet | boston-gear-cd1145.pdf |
| Type | Spiral Tooth |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.23 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
