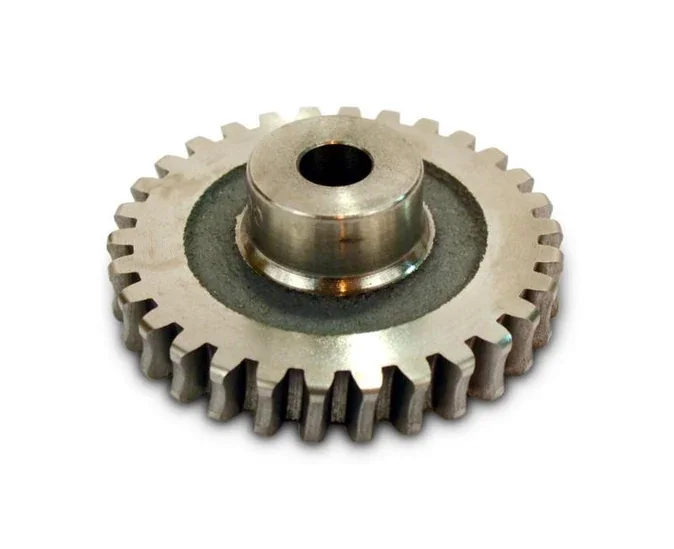

BOSTON GEAR D1622A Worm Gear
Item: AK2VJFModel: D1622A
7 In Stock
Ships within 2 days via
€448.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Worm Gear |
| Bore Size | 1" |
| Diametral Pitch | 8 |
| Flush Face To Worm Centerline | 0.375 |
| Hardened Teeth | Without Hardened Teeth |
| Helix Angle | 18.433° |
| Hub Dia. | 1.69" |
| Keyway | No Kwy, Setscrew |
| Keyway Size | No Keyway Or Set Screw |
| Length Through Bore | 1 1/2" |
| Material | Cast Iron |
| No. Of Leads | 4 |
| No. Of Teeth | 40 |
| No. Of Threads | 4 |
| Number Of Threads | Quad Thread |
| Pitch Dia. | 5" |
| Pressure Angle | 14.5° |
| Right/left Hand | Right Hand |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Gear Ratio | Rotation | Overall Length | Type | Output Torque | Material | Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
D860A | - | - | - | - | 1244 lbs.-in. | Cast Iron | 1" | €676.98 | |
 |
D1620A | 5:1 | Right Hand | 1 1/2" | Plain | - | Cast Iron | - | €298.44 | |
 |
D1623A | - | - | - | - | - | Cast Iron | - | €598.52 | |
 |
G850LH | - | - | - | - | 858 lbs.-in. | Cast Iron | 1" | €523.05 | |
 |
G850RH | - | - | - | - | 858 lbs.-in. | Cast Iron | 1" | €512.15 | |
 |
D1420ALH | 10:1 | Left Hand | 1 1/2" | Web | - | Cast Iron | - | €200.57 | |
|
D1420ARH | 10:1 | Right Hand | 1 1/2" | Plain | - | Cast Iron | - | €200.57 |
