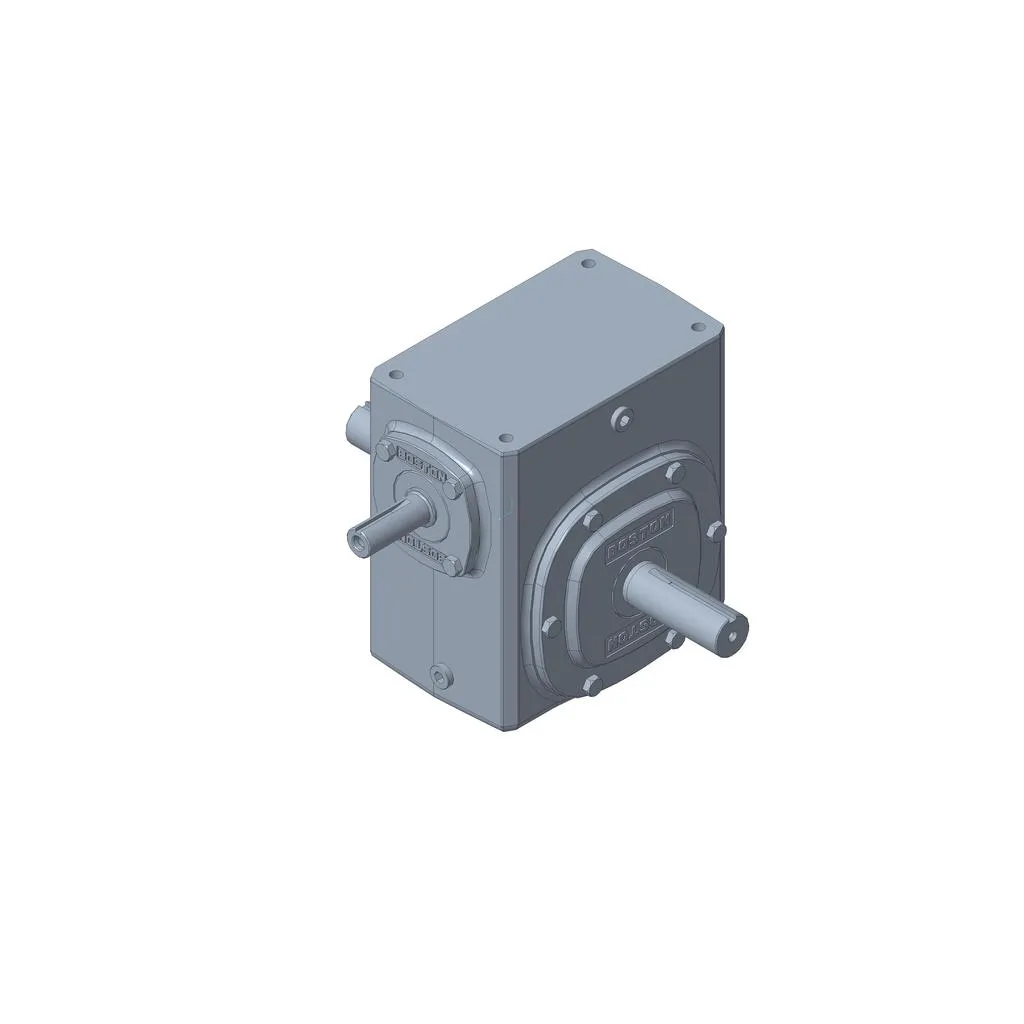

BOSTON GEAR 730-60-H Reducer, Single Reduction, 60:1 Ratio, No Base
3"
60:1
H
€3,547.03 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Mounting Attachment | No Base |
| Center Distance | 3" |
| Fan Cooled | No |
| Finish | Standard Paint |
| Input Style | No Flange Projecting Shaft |
| Lubrication | Klubersynth UH1 6-460 |
| Output Shaft Dia. | 1 1/4" |
| Pre-lubricated | No |
| Product Datasheet | boston-gear-710-10-g.pdf |
| Reducer Material | Cast Iron |
| Reduction Type | Single Reduction Right Angle |
Documentation:
Product Variants
| Model | Max. Input Hp | Gear Ratio | Worm Center Distance | Overhung Load | Base To Shaft Center | Finish | Output Shaft Dia. | Input Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 710-50-G | 4/25 hp | 501 | 1" | 150 lbs. | 1.31" | Epoxy Paint | 1/2" | 1750 RPM | €1,018.19 | |
| 710-40-G | 4/25 hp | 401 | 1" | 150 lbs. | 1.31" | Epoxy Paint | 1/2" | 1750 RPM | €1,073.04 | |
| 710-20-G | 1/4 hp | 201 | 1" | 150 lbs. | - | Epoxy Paint | 1/2" | 1750 RPM | €955.36 | |
| 713-40-G | 4/25 hp | 401 | 1.33" | 200 lbs. | 1.75" | Epoxy Paint | 5/8" | 1750 RPM | €1,046.75 | |
| 713-25-G | 3/10 hp | 251 | 1.33" | 200 lbs. | 1.75" | Epoxy Paint | 5/8" | 1750 RPM | €1,147.93 | |
| 713-20-G | 3/10 hp | 20:1 | 1.33" | 200 lbs. | 1.75" | Epoxy Paint | 5/8" | 87.5 RPM | €1,070.75 | |
| 713-50-G | 4/25 hp | 50:1 | 1.33" | 200 lbs. | 1.75" | Epoxy Paint | 5/8" | 35 RPM | €983.80 |
