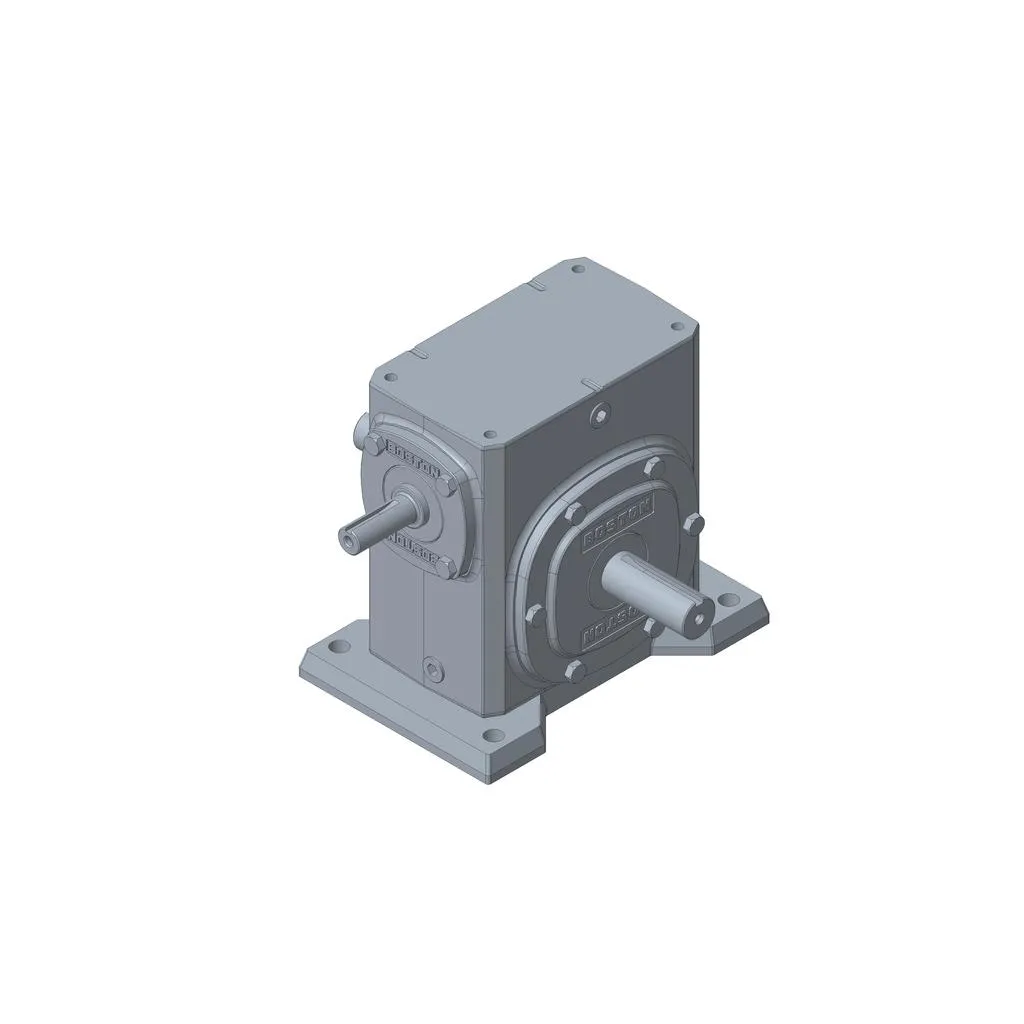

BOSTON GEAR 726B-60-H Reducer, Quill Input Solid Output Shaft Double Worm Gear
2.62"
60:1
H
Get it by Tuesday, Dec 23
€2,080.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Mounting Attachment | "B" Horiz. Base, Bottom Mount |
| Fan Cooled | No |
| Input Motor Hp | 0.75 hp At AGMA Service Class I |
| Input Power | 0.89 hp |
| Input Style | No Flange (Projecting Shaft) |
| Motor Hp | 3/4 hp |
| Output Bore/shaft Diameter | 1.125" |
| Output Shaft | H Solid Double Projecting Output |
| Output Speed | 29.2 RPM |
| Output Torque | 1385 lbs.-in. |
| Pre-lubricated | No |
| Product Datasheet | boston-gear-710-10-g.pdf |
| Rated Efficiency | 72% |
| Ratio | 60:1 |
| Recommended Lubrication | Klubersynth UH1 6-460 |
| Reducer Material/paint | Cast Iron, Standard Paint |
| Reduction Type | Single Reduction Right Angle |
Shipping Info:
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Max. Input Hp | Gear Ratio | Worm Center Distance | Overhung Load | Base To Shaft Center | Finish | Output Shaft Dia. | Input Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 710-50-G | 4/25 hp | 501 | 1" | 150 lbs. | 1.31" | Epoxy Paint | 1/2" | 1750 RPM | €1,018.19 | |
| 710-40-G | 4/25 hp | 401 | 1" | 150 lbs. | 1.31" | Epoxy Paint | 1/2" | 1750 RPM | €1,073.04 | |
| 710-20-G | 1/4 hp | 201 | 1" | 150 lbs. | - | Epoxy Paint | 1/2" | 1750 RPM | €955.36 | |
| 713-40-G | 4/25 hp | 401 | 1.33" | 200 lbs. | 1.75" | Epoxy Paint | 5/8" | 1750 RPM | €1,046.75 | |
| 713-25-G | 3/10 hp | 251 | 1.33" | 200 lbs. | 1.75" | Epoxy Paint | 5/8" | 1750 RPM | €1,147.93 | |
| 713-20-G | 3/10 hp | 20:1 | 1.33" | 200 lbs. | 1.75" | Epoxy Paint | 5/8" | 87.5 RPM | €1,070.75 | |
| 713-50-G | 4/25 hp | 50:1 | 1.33" | 200 lbs. | 1.75" | Epoxy Paint | 5/8" | 35 RPM | €983.80 |
