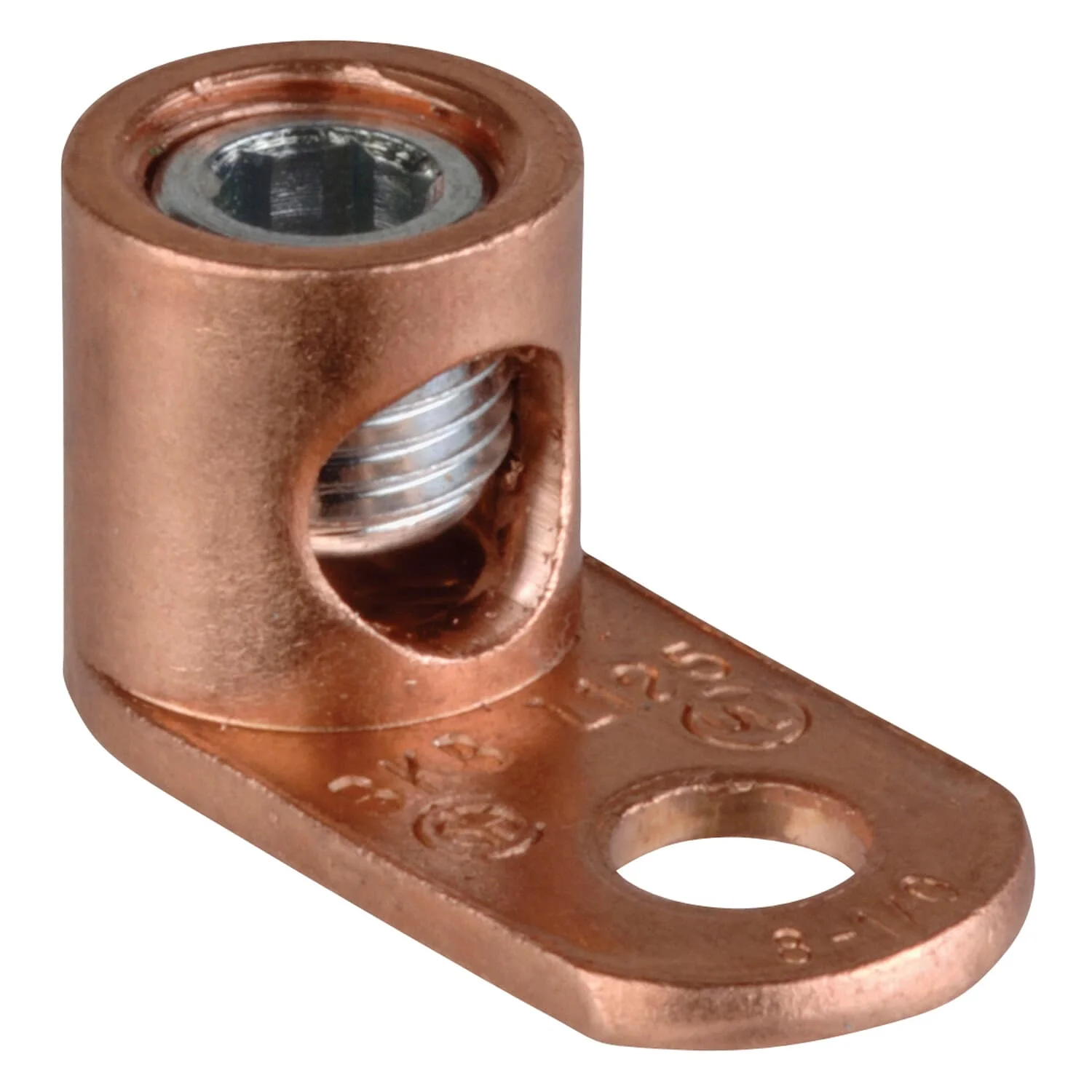

BLACKBURN (T&B) L125BB Compression Lug, 8 To 1/0 Awg Conductor, 27/32 X 47/64 X 3/32 Inch Tongue Size
Item: AH9KBVModel: L125BBCross Ref: 3LR04
7 In Stock
Ships within 2 days via
10.00% off
€13.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical Connector |
| Connection Orientation | Straight Tang |
| Connector Type | Straight Tang |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| For Stranded Copper Wire Size - Minimum | 8 AWG |
| Head Style | Socket |
| Head Type | Socket |
| Hole Diameter | 0.33" |
| Length | 1 1/2" |
| Material | Copper |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 1000V |
| Min. Conductor Size | 8 AWG |
| Number Of Conductors | 1 |
| Number Of Holes | 1 |
| Number Of Terminations | 1 |
| Overall Depth | 3/4" |
| Overall Length | 1.5" |
| Overall Width | 0.73" |
| Screw Finish | Zinc Plated |
| Screw Material | Steel |
| Special Features | Cold Forged From Pure Electrolytic Copper With 99 Percent Conductivity |
| Standards | Ul Listed, Ul486A/B |
| Stud Size | 21/64" |
| Tongue Length | 0.78" |
| Tongue Thickness | 0.09" |
| Tongue Width | 0.73" |
| Width | 0.73" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 1.78 |
| Country of Origin | MX |
Product Details:
- No. of Conductors : 1
- No. of Holes : 1
Product Variants
| Model | Stud Size | Head Style | Min. Conductor Size | Overall Length | Head Type | Max. Conductor Size | Screw Material | Screw Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| STC0208 | 17/64" | Hex | 8 AWG | 1.47" | Hex | 2 AWG | Steel | Zinc Plated | €15.73 | |
| STC0414 | 17/64" | Slotted | 14 AWG | 1.25" | Slotted | 4 AWG | Steel | Zinc Plated | €12.46 | |
| STC0614 | 13/64" | Slotted | 14 AWG | 1.14" | Slotted | 6 AWG | Steel | Zinc Plated | €21.55 | |
| STC1102 | 17/64" | Hex | 2 AWG | 1.94" | Hex | - | Steel | Zinc Plated | €34.02 | |
| STC3104 | 13/32" | Hex | 4 AWG | 2.25" | Hex | - | Steel | Zinc Plated | €79.21 | |
| STC5011 | 13/32" | Hex | 1/0 AWG | 3.88" | Hex | 500 kcmil | Steel | Zinc Plated | €146.35 |
