BLACKBURN (T&B) STC3104 Mechanical Connector Straight Tang 3/0 to 4 AWG
Item: AH9KCEModel: STC3104Cross Ref: 3LT07
7 In Stock
Ships within 2 days via
10.00% off
€71.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical Connector |
| Connection Orientation | Straight Tang |
| Connector Type | Straight Tang |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Maximum | 3/0 AWG |
| For Stranded Copper Wire Size - Minimum | 4 AWG |
| Head Style | Hex |
| Head Type | Hex |
| Hole Diameter | 0.2" |
| Length | 2 1/4" |
| Material | Copper |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 1000V |
| Min. Conductor Size | 4 AWG |
| Number Of Conductors | 1 |
| Number Of Holes | 1 |
| Number Of Terminations | 1 |
| Overall Depth | 1 9/16" |
| Overall Length | 2.25" |
| Overall Width | 3/4" |
| Screw Finish | Zinc Plated |
| Screw Material | Steel |
| Special Features | Notched V-Bottom Collar, Uniquely Designed Pressure Bar |
| Standards | Ul Listed, Ul486A/B |
| Stud Size | 13/32" |
| Tongue Length | 1 1/4" |
| Tongue Thickness | 0.13" |
| Width | 3/4" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 5.59 |
| Ship width (cm) | 2.03 |
| Country of Origin | MX |
Product Details:
- No. of Conductors : 1
- No. of Holes : 1
Product Variants
| Model | Stud Size | Head Style | Min. Conductor Size | Overall Length | Head Type | Max. Conductor Size | Screw Material | Screw Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| L125BB | 21/64" | Socket | 8 AWG | 1.5" | Socket | - | Steel | Zinc Plated | €15.40 | |

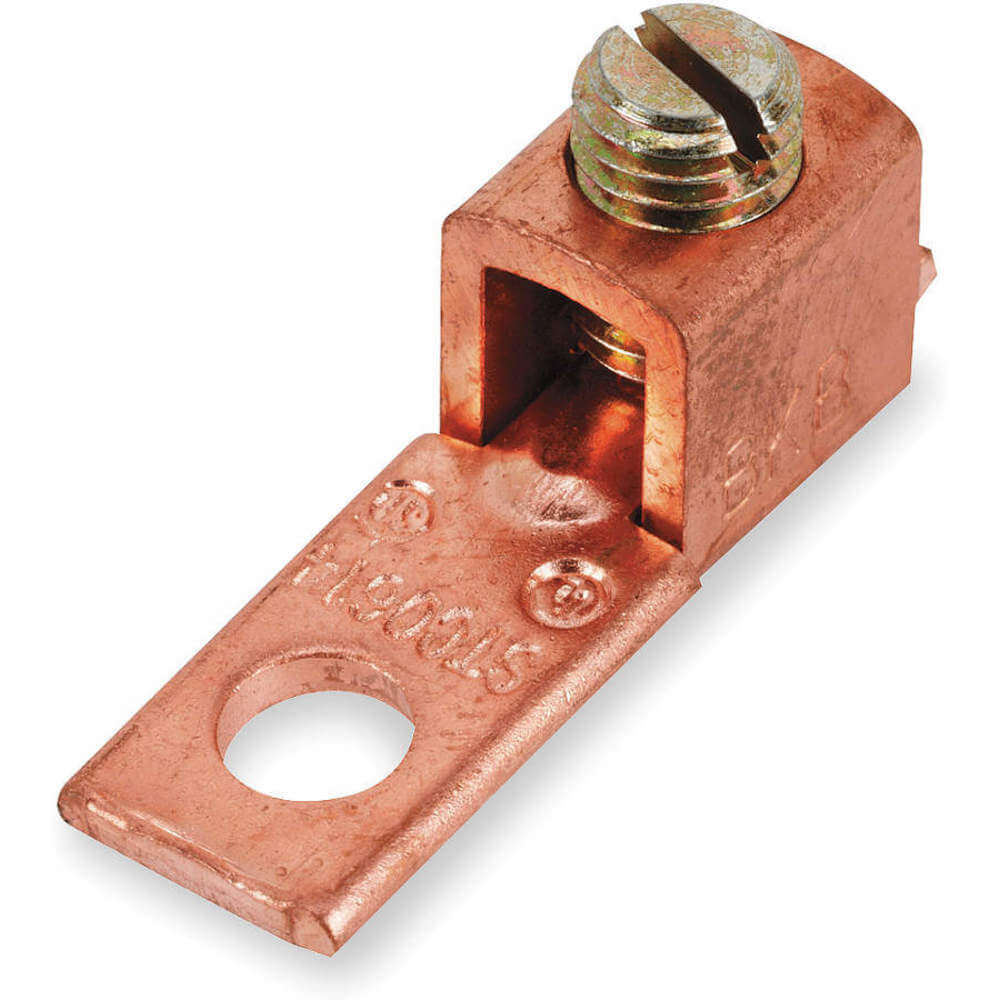

| STC0208 | 17/64" | Hex | 8 AWG | 1.47" | Hex | 2 AWG | Steel | Zinc Plated | €15.73 | |
| STC0414 | 17/64" | Slotted | 14 AWG | 1.25" | Slotted | 4 AWG | Steel | Zinc Plated | €12.46 | |
| STC0614 | 13/64" | Slotted | 14 AWG | 1.14" | Slotted | 6 AWG | Steel | Zinc Plated | €21.55 | |
| STC1102 | 17/64" | Hex | 2 AWG | 1.94" | Hex | - | Steel | Zinc Plated | €34.02 | |
| STC5011 | 13/32" | Hex | 1/0 AWG | 3.88" | Hex | 500 kcmil | Steel | Zinc Plated | €146.35 |
