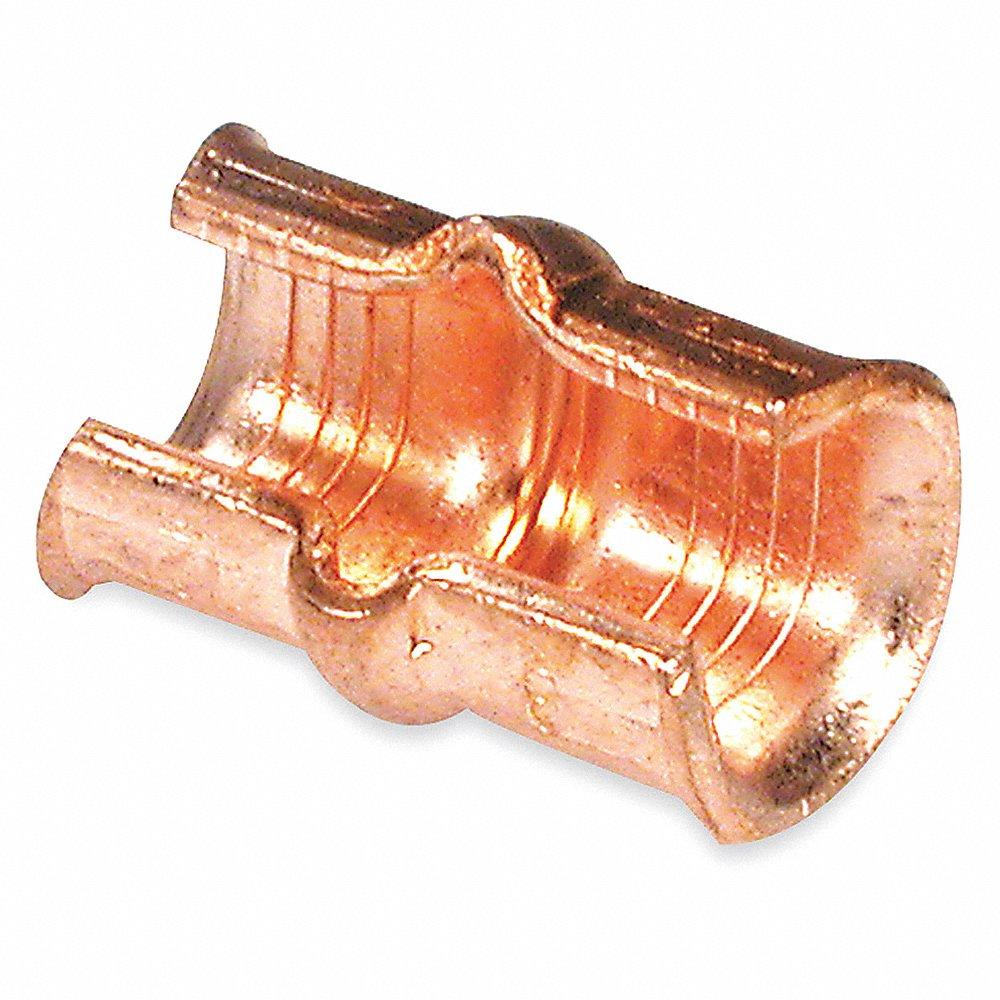

BLACKBURN (T&B) 54725 C Tap, Green, 37 Die Code, Branch 6 to 12 AWG, Main 5 to 3 AWG Wire Range
Item: CH9UBKModel: 54725Cross Ref: 3LM31
7 In Stock
Ships within 2 days via
5.00% off
€12.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Connector |
| Color Code | Green |
| Compatible Grainger Part No | 3LJ71, 3LJ76, 3LJ85, 3LJ88 |
| Compatible Installation Tool Model No. | 13455, 13462, 13474, 13477, 6TON37, TBM6237 |
| Compatible With Product Type | Crimping Die |
| Conductor Size | 5 to 3 |
| Die Code | 37 |
| Finish | Plain |
| For Conductor Material | Copper |
| For Max. Equal Wire Size | 3 AWG (Main), 6 AWG (Branch) |
| For Max. Run Wire Size | 3 AWG |
| For Max. Tap Wire Size | 6 AWG |
| For Min. Equal Wire Size | 12 AWG (Branch), 5 AWG (Main) |
| For Min. Run Wire Size | 5 AWG |
| For Min. Tap Wire Size | 12 AWG |
| Material | Copper |
| Max. Voltage | 600V |
| Overall Height | 13/16" |
| Overall Length | 1 3/16" |
| Special Features | Positive, All-Around Compression With Low Resistance And High Pull-Out Values |
| Standards | Ul E9809 |
| Tap Size | 6 AWG to 12 AWG |
| Termination Style | Crimp |
| Voltage | 600V |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.02 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
