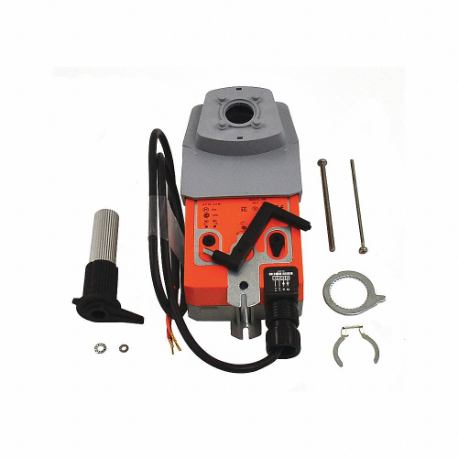

BELIMO AFRB24-SR Spring Return Control Valve Actuator, 180 In-Lb Torque, 24V Ac/Dc
Item: CN9JGUModel: AFRB24-SRCross Ref: 40LV76
7 In Stock
Ships within 2 days via
10.00% off
€829.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Valve Actuator |
| Ambient Temp. Range | -22°F to +122°F |
| Application | Air Conditioning |
| Compatible With Series | B230, B240, B250, B320, B330, B340, B350 |
| Contact Form | Not Applicable |
| Control Signal | On/Off |
| Cycle Time | 95 sec. |
| Depth | 3.938" |
| Electrical Connection Type | Cable |
| Electrical Lead Length | 3 ft. |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Height | 9.766" |
| Housing Material | Steel |
| Housing Material Finish | Galvanized |
| Includes | Mounting Hardware |
| Motor Direction | CW/CCW |
| Nema Rating | 2 |
| Number Of Auxiliary Switches | 0 |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | -22°F |
| Output Signal | Not Applicable |
| Overall Depth | 3 15/16" |
| Overall Height | 9 3/4" |
| Overall Width | 4 1/16" |
| Power Consumption | 8.5 VA |
| Power Rating | 5.5 W |
| Product Type | Electric Ball Valve Actuator |
| Return Action | Spring Return |
| Signal Type | Proportional |
| Spring Return | Spring Return |
| Stroke Deg. | 0° to 95° |
| Stroke Length | Not Rated |
| Timing | 95 sec. |
| Torque | 180 lbs.-in. |
| Voltage | 24V AC/DC |
| Width | 4.047" |
Shipping Info:
| Ship weight (kg) | 2.41 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 10 |
| Ship width (cm) | 10.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Product Type | Torque | Signal Type | Cycle Time | Depth | Height | Timing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AMB24-3 | 24V AC/DC | Damper Actuator | - | Floating, On/Off | - | 2.484" | 7.469" | 95 sec. | €479.46 | |
 |
TFB120-S | 100-240V | - | - | - | - | 3 19/64" | 6.281" | 75 sec. | €462.83 | |
 |
TFRB24 | 24V AC/DC | Electric Ball Valve Actuator | 22 lbs.-in. | - | 75 sec. | 2 13/32" | 6.281" | 75 sec. | €418.48 | |
 |
FSAF120A | 120V AC | Fire And Smoke Actuator | 180 lbs.-in. | - | - | 7 13/32" | 7 1/2" | 25 sec. | €925.94 | |
 |
FSLF120 | 120V AC | Fire And Smoke Actuator | 30 lbs.-in. | - | - | 2.234" | 7.031" | 15 sec. | €664.54 | |
 |
FSNF120 | 120V AC | Fire And Smoke Actuator | 70 lbs.-in. | - | - | 3 1/4" | 10.203" | 15 sec. | €792.07 | |
 |
FSAFB24-SR-S | 24V AC/DC | - | 180 lbs.-in. | Proportional | - | 4 12/25" | 9.69" | 0 sec. to 75 sec. | €1,140.55 |
