BELIMO FSAF120A Electric Actuator, Direct Mount, Spring Return, On/Off, 180 In-Lb Torque, 120VAC
Item: CN9JGJModel: FSAF120ACross Ref: 467F89
7 In Stock
Ships within 2 days via
13.00% off
€635.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electric Actuator |
| Ambient Temp. | +32°F to +122°F |
| Application | Damper |
| Contact Form | SPST |
| Control Signal | On/Off |
| Depth | 7 13/32" |
| Electrical Connection | 3 Ft 18 AWG Appliance Cable, 1/2 In Conduit |
| Electrical Connection Type | Hardwired |
| Fire Application Rating | Fire Application Rated |
| Fire/smoke Rating Combo | Fire Application Rated/Smoke Application Rated |
| For Shaft Dia. | 1 1/8" |
| For Shaft Height | Not Applicable |
| For Shaft Shape | Round |
| For Shaft Width | Not Applicable |
| For Use With | Dampers And Valves |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Height | 7 1/2" |
| Housing Material | Steel |
| Housing Material Finish | Galvanized |
| Included | Graduated Position Indicator |
| Input Voltage | 120V AC |
| Ip Rating | IP40 |
| Max. Operating Temp. | 122°F |
| Min. Operating Temp. | 32°F |
| Motor Direction | CW/CCW |
| Mounting Type | Direct Mount |
| Nema Rating | 1 |
| No. Of Auxiliary Switches | 0 |
| Output Signal | Not Applicable |
| Overall Depth | 3 1/2" |
| Overall Height | 10 1/4" |
| Overall Width | 3 7/8" |
| Plenum Rating | Plenum Rated |
| Power | 7.5 W |
| Power Consumption | 30 VA |
| Product Type | Fire And Smoke Actuator |
| Replaces Honeywell Motors | Mfr. No. MS4120F1006 |
| Return Action | Spring Return |
| Shaft Rotation | CW/CCW |
| Shaft Size | 1/2" to 1 1/16" |
| Shaft Type | Round |
| Smoke Application Rating | Smoke Application Rated |
| Spring Return | Spring Return |
| Stroke Deg. | 90 |
| Stroke Degree | 95° |
| System Application | Fire And Smoke Dampers |
| Time To Close | 25 sec. |
| Timing | 25 sec. |
| Torque | 180 lbs.-in. |
| Valve Application | Damper |
| Voltage | 120V AC |
| Width | 2 1/4" |
Shipping Info:
| Ship weight (kg) | 3.42 |
| Ship height (cm) | 26.04 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 9.84 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Voltage | Electrical Connection Type | Depth | Overall Depth | Overall Width | Torque | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AMB24-3 | 7.469" | 24V AC/DC | Hardwired | 2.484" | 2 1/2" | 3 1/2" | 180 lbs.-in. | 7 1/2" | €380.30 | |
 |
TFB120-S | 6.281" | 100-240V | Hardwired | 3 19/64" | 3 1/4" | 3" | - | - | €386.49 | |
 |
TFRB24 | 6.281" | 24V AC/DC | Cable | 2 13/32" | 2 7/16" | 3 1/16" | 22 lbs.-in. | 6 5/16" | €325.49 | |
 |
FSLF120 | 7.031" | 120V AC | Hardwired | 2.234" | 2 1/4" | 3 7/8" | 30 lbs.-in. | 7" | €524.64 | |
 |
FSNF120 | 10.203" | 120V AC | Hardwired | 3 1/4" | 3 1/4" | 3 7/8" | 70 lbs.-in. | 10 1/4" | €625.31 | |
 |
FSAFB24-SR-S | 9.69" | 24V AC/DC | Hardwired | 4 12/25" | 4 1/2" | 3 7/8" | 180 lbs.-in. | 9 3/4" | €916.79 | |
 |

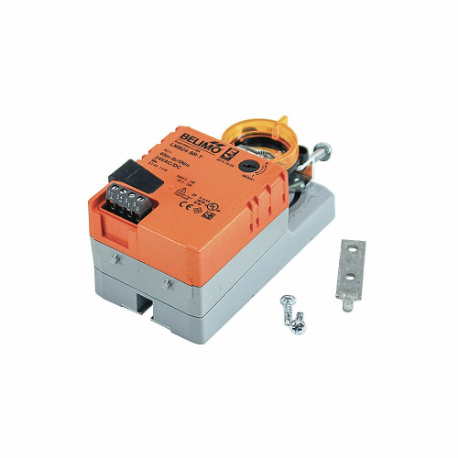

LMB24-SR-T | 6.562" | 24V AC/DC | Screw Terminal | 1 27/32" | 1 7/8" | 2 5/8" | 45 lbs.-in. | 6 5/8" | €247.96 |
