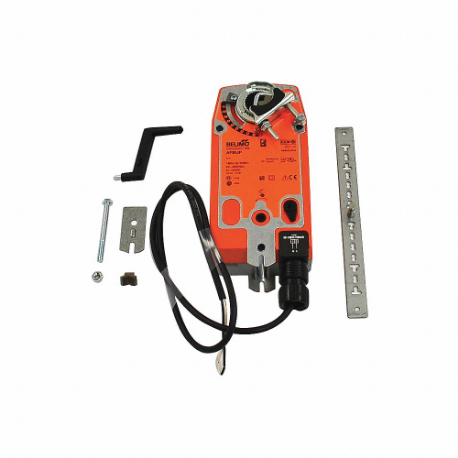

BELIMO AFBUP Spring Return Damper Actuator, 24Vac/Dc On/Off, 180 In-Lb Torque, 24-240V Ac
Item: CN9JGYModel: AFBUPCross Ref: 40LV74
7 In Stock
Ships within 2 days via
13.00% off
€490.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Damper Actuator |
| Ambient Temp. | -22°F to +122°F |
| Application | Damper |
| Contact Form | SPDT |
| Control Signal | On/Off |
| Depth | 3.422" |
| Electrical Connection Type | Hardwired |
| For Shaft Dia. | 1" |
| For Shaft Shape | Round |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Height | 9.688" |
| Housing Material | Steel |
| Housing Material Finish | Galvanized |
| Included | Mounting Hardware |
| Input Voltage | 24-125V DC/24-240V AC |
| Ip Rating | IP54 |
| Max. Operating Temp. | 122°F |
| Min. Operating Temp. | -22°F |
| Motor Direction | CW/CCW |
| Nema Rating | 2 |
| No. Of Auxiliary Switches | 0 |
| Overall Depth | 3 3/8" |
| Overall Height | 9 3/4" |
| Overall Width | 3 1/8" |
| Power | 7 W |
| Power Consumption | 18 VA |
| Product Type | Damper Actuator |
| Return Action | Spring Return |
| Shaft Rotation | CW/CCW |
| Shaft Size | 1/2" to 1 3/64" |
| Spring Return | Yes |
| Stroke Deg. | 0° to 95° |
| Stroke Degree | 95° |
| System Application | Dampers |
| Time To Close | 75 sec. |
| Timing | 75 sec. |
| Torque | 180 lbs.-in. |
| Voltage | 24-240V AC |
Shipping Info:
| Ship weight (kg) | 2.32 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 8.57 |
| Ship width (cm) | 7.94 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Voltage | Electrical Connection Type | Depth | Overall Depth | Overall Width | Torque | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AMB24-3 | 7.469" | 24V AC/DC | Hardwired | 2.484" | 2 1/2" | 3 1/2" | 180 lbs.-in. | 7 1/2" | €380.30 | |
 |
TFB120-S | 6.281" | 100-240V | Hardwired | 3 19/64" | 3 1/4" | 3" | - | - | €386.49 | |
 |
TFRB24 | 6.281" | 24V AC/DC | Cable | 2 13/32" | 2 7/16" | 3 1/16" | 22 lbs.-in. | 6 5/16" | €325.49 | |
 |
FSAF120A | 7 1/2" | 120V AC | Hardwired | 7 13/32" | 3 1/2" | 3 7/8" | 180 lbs.-in. | 10 1/4" | €731.01 | |
 |
FSLF120 | 7.031" | 120V AC | Hardwired | 2.234" | 2 1/4" | 3 7/8" | 30 lbs.-in. | 7" | €524.64 | |
 |
FSNF120 | 10.203" | 120V AC | Hardwired | 3 1/4" | 3 1/4" | 3 7/8" | 70 lbs.-in. | 10 1/4" | €625.31 | |
 |
FSAFB24-SR-S | 9.69" | 24V AC/DC | Hardwired | 4 12/25" | 4 1/2" | 3 7/8" | 180 lbs.-in. | 9 3/4" | €916.79 |
