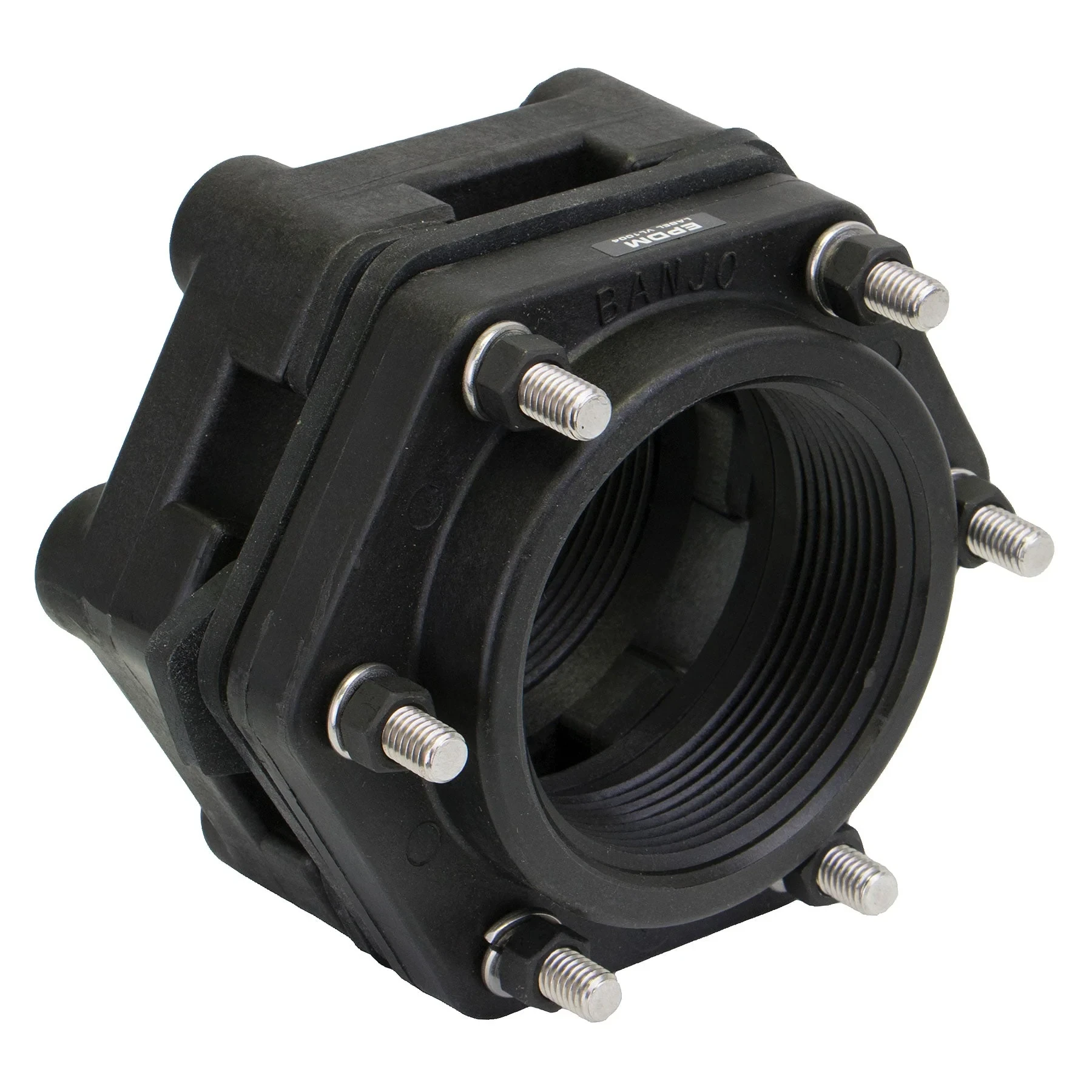

BANJO FITTINGS BF300BD Threaded Flange, EPDM, 3 X 3 Inch Size
Item: BW9KWPModel: BF300BDCross Ref: 801HW4
7 In Stock
Ships within 2 days via
10.00% off
€131.81 /unit
This product can only be shipped in multiples of 4Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolted Bulkhead Tank Flange |
| Body Material | Polypropylene |
| Bolt Material | Stainless Steel |
| Color | Black |
| Fitting Body Material | Glass Reinforced Polypropylene |
| Fitting Material | Polypropylene |
| Fitting Material Finish | Glass Reinforced |
| For Tank Shape | Curved, Flat |
| Gasket Material | EPDM |
| Inside Connection Gender | Female |
| Inside Connection Size | 3" |
| Inside Connection Type | NPT |
| Material | Polypropylene |
| Max. Operating Pressure | 150 psi |
| Maximum Operating Temperature | 150°F |
| Maximum Wall Thickness | 1/2" |
| Minimum Operating Temperature | -20°F |
| Mount Type | Bottom Drain Bolt On |
| No. Of Bolt Holes | 6 |
| Outside Connection | 3" Female NPT |
| Outside Connection Gender | Female |
| Outside Connection Size | 3" |
| Outside Connection Type | NPT |
| Overall Length | 5 1/2" |
| Required Hole Size | 3 13/32" |
| Size | 3 x 3" |
| Style | Bottom Drain |
| Temperature Range | -20°F to +150°F |
| Type | Bolted Tank Flange |
Shipping Info:
| Ship weight (kg) | 1.11 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Required Hole Size | Pipe Size | Max. Operating Pressure | Fitting Material | Gasket Material | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
BF075 | 1 1/2" | 3/4" | 150 psi | Polypropylene | EPDM | -20°F to +150°F | €91.70 | |
 |
BF100 | 1 1/2" | 1" | 150 psi | Polypropylene | EPDM | -20°F to +150°F | €91.70 | |
 |
BF150 | 2 1/4" | - | 150 psi | Polypropylene | EPDM | -20°F to +150°F | €92.79 | |
 |
BF200 | 2 1/4" | 2" | 150 psi | Polypropylene | EPDM | -20°F to +150°F | €92.82 | |
 |
BF220 | 2" | 2" | 150 psi | Polypropylene | EPDM | -20°F to +150°F | €102.47 | |
 |
BF300 | 3 13/32" | 3" | 150 psi | Polypropylene | EPDM | -20°F to +150°F | €150.17 | |
 |
TF073 | - | - | - | - | - | - | €13.90 |
