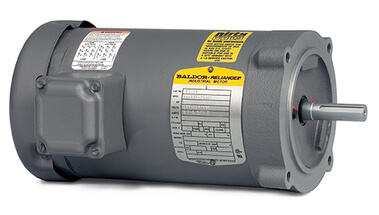

BALDOR MOTOR VM8537 Dirty Duty Plus Motor, 230/460V, 3600 RPM, 60 Hz, 0.5 hp, 3 Phase, TEFC, 56C Frame
Get it by Tuesday, Dec 23
€774.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 2/1A |
| Amps @ 208v | 2.6A |
| Base Type | Not Applicable |
| Break-down Torque | 3.4 lbs.-ft. |
| Class | Stock |
| Code | J |
| Conduit Box Position | F1 |
| Design Code | B |
| Enclosure Design | TEFC |
| Frame | 56C |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 2/1A |
| Full Load Torque | 0.75 ft.-lbs. |
| Full Load Torque | 0.75 lbs.-ft. |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Lead | 9#18 |
| Line-line Res. @ 25° C | 35.1 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 3 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting Type | Not Applicable |
| Multiplier | SD |
| Nameplate Rpm | 3450 RPM |
| No Load Amps | 0.9A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 2 |
| Nominal Efficiency | 68% |
| Phase | 3 |
| Power Factor | 63 |
| Product Datasheet | baldor-motor-vm8537.pdf |
| Proprietary | No |
| Pull-up Torque | 2.7 lbs.-ft. |
| Revision | G |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.25 |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 6A |
| Temp. Rise @ Rated Load | 58°C |
| Temp. Rise @ S. F. Load | 69°C |
| Type | 3410M |
| Voltage | 230/460V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 23.81 |
| Ship length (cm) | 35.09 |
| Ship width (cm) | 27.47 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 3 LB-FT
- Nameplate No.: NP1261E
- Pull-Up Torque: 2.7 LB-FT
- Starting Current: 6 Amps
