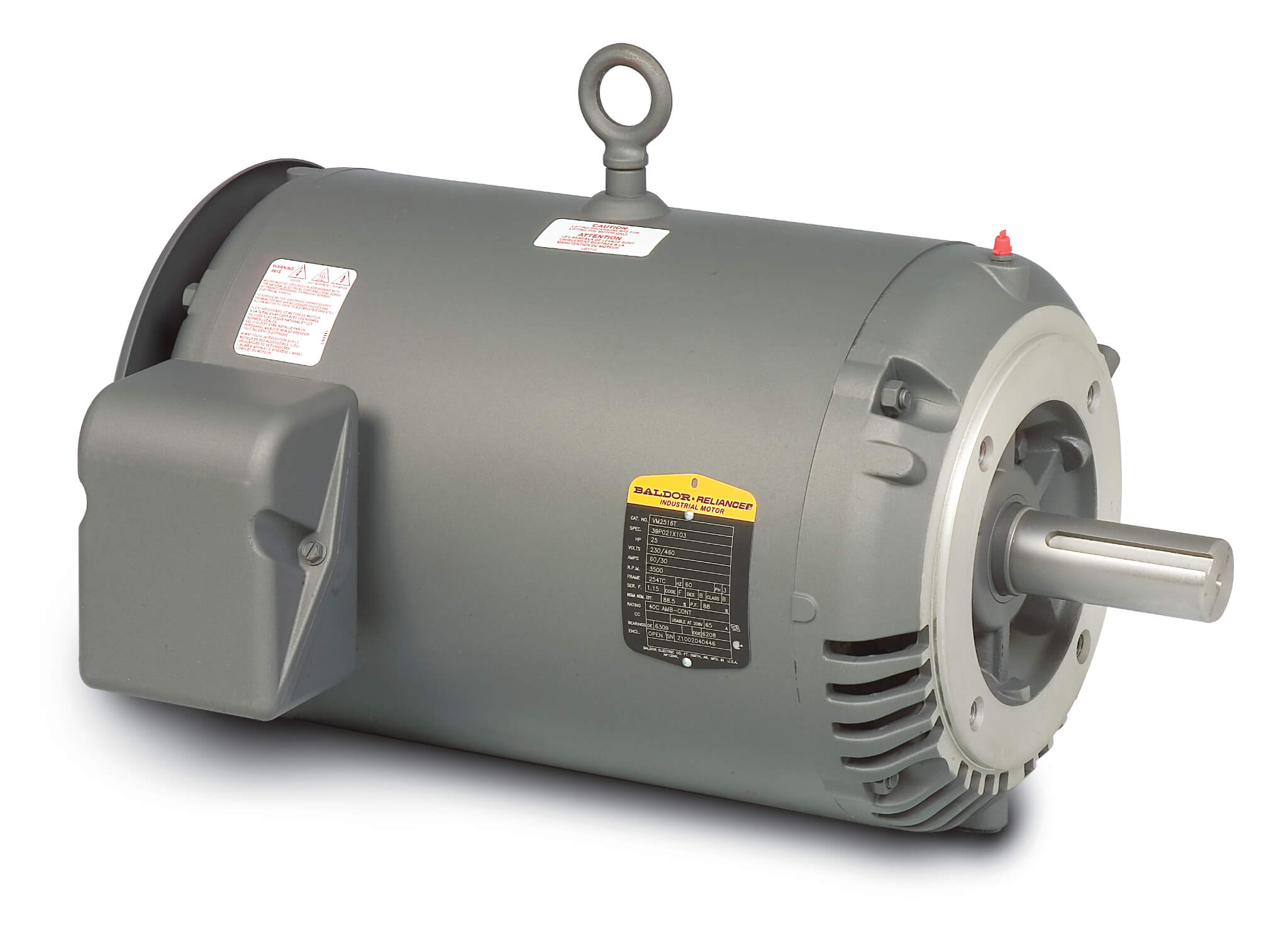

BALDOR MOTOR VM3153T Three Phase Motor, 230/460V, 1200 RPM, 60 Hz, 0.75 hp, TEFC, 143TC Frame
1.5A
1200 RPM
Get it by Monday, Dec 22
€944.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 3.3-3/1.5A |
| Amps @ 208v | 3.3A |
| Base Type | Not Applicable |
| Code | K |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | Open |
| Frame | 143TC |
| Frame Material | Steel |
| Frame Size | 143TC |
| Frequency | 60 Hz |
| Full Load Amps | 3.3-3/1.5A |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Inverter Code | Not Inverter |
| Lead | 9#18 |
| Motor Enclosure Design | Open Air Over |
| Motor Type | Three Phase |
| Mounting Type | C Face, Footless |
| Multiplier | L1 |
| Nameplate Rpm | 1140 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 77% |
| Overall Length | 13.41" |
| Phase | 3 |
| Power Factor | 59 |
| Product Datasheet | baldor-motor-vm3153t.pdf |
| Proprietary | No |
| Pulley Face Code | C Face |
| Revision | M |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Synchronous Rpm | 1200 RPM |
| Type | 3428M |
| Voltage | 208-230/460V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Nameplate No.: NP1256L
Documentation:
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Hp | Service Factor | Mounting Type | Nameplate Rpm | Motor Type | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EM2504T | Open Slotted Band | 230/460V | 5 hp | 1.15 | Foot Mounted | 880 RPM | 3948M | Class F | €4,487.97 | |
 |
EM2506T | Open Slotted Band | 230/460V | 7 1/2 hp | 1.15 | Foot Mounted | 1180 RPM | Three Phase | Class F | €2,711.14 | |
|
EM2508T | Open Slotted Band | 230/460V | 7 1/2 hp | 1.15 | Foot Mounted | 880 RPM | 3962M | Class F | €5,616.34 | |
|
EM2511T | Open Dripproof | 230/460V | 10 hp | 1.15 | Foot Mounted | 1180 RPM | Three Phase | Class F | €5,099.18 | |
|
EM2513T | Open Dripproof | 230/460V | 15 hp | 1.15 | Foot Mounted | 1770 RPM | Three Phase | Class F | €4,561.57 | |
|
EM2513T-5 | Open Slotted Band | 575V | 15 hp | 1.15 | Foot Mounted | 1765 RPM | Three Phase | Class F | €3,275.33 | |
 |
EM2513T-CI | Open Air Over | 230/460V | 15 hp | 1.15 | Foot Mounted | - | Three Phase | Class F | €3,512.00 |
