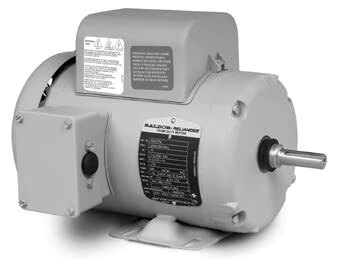

BALDOR MOTOR VFDFL3610TM Farm Duty Motor, 230V, 1800 RPM, 3 hp, 1 Phase, TEFC, 184TC Frame
Get it by Tuesday, Dec 23
€2,882.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps @ Voltage | 15.5A @ 230V |
| Auxillary Box | No Auxillary Box |
| Base Type | Not Applicable |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Conduit Box Material | Steel |
| Conduit Box Position | F2 |
| Design Code | L |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 80% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | TEFC |
| Feedback Device | NO FEEDBACK |
| Frame | 184TC |
| Frame Material | Steel |
| Frame Size | 184TC |
| Frequency | 60 Hz |
| Front Face Code | Standard |
| Full Load Amps | 15.5A |
| Grease Temp. | -20°F to +300°F |
| Grease Type | Polyrex EM |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 15.5A |
| Hp | 3 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Kva Code | M |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Quantity/wire Size | 2 @ 14 AWG, A PH |
| Motor Lead Termination | Flying Leads |
| Motor Type | 3640LC |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1750 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Output @ Frequency | 3 hp @ 60 Hz |
| Overall Length | 18.04" |
| Phase | 1 |
| Power Factor | 76 |
| Product Datasheet | baldor-motor-vfdfl3610tm.pdf |
| Product Family | General Purpose |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | C Face |
| Pulley Shaft Indicator | Standard |
| Rpm | 1750 RPM |
| Rpm Range | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 1/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed Type | Single Speed |
| Start Type | Direct On Line |
| Synchronous Rpm | 1800 RPM |
| Synchronous Rpm @ Frequency | 1800 RPM @ 60 Hz |
| Synchronous Speed | 1800 RPM |
| Thermal Protection | Manual |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 230V |
| Voltage @ Frequency | 230V @ 60 Hz |
| Winding Thermal 1 | Manual Thermal Overload |
| Winding Thermal 1 Location | Ko |
| Xp Division | Not Applicable |
Shipping Info:
| Ship weight (kg) | 44.1 |
| Ship height (cm) | 32.55 |
| Ship length (cm) | 58.1 |
| Ship width (cm) | 31.12 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 80.00%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Not inverter
- KVA Code: M
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: KO Box
- Motor Lead Quantity/Wire Size: 2 @ 14 AWG, A PH
- Product Family: General Purpose
- Pulley End Bearing Type: Sealed Bearing
- Pulley Face Code: C-Face
- Pulley Shaft Indicator: Standard
- Shaft Diameter: 1.125 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: Shaft Slinger
Documentation:
Product Variants
| Product | Model | Hp | Frame | Nameplate Rpm | Service Factor | Overall Length | Motor Type | Power Factor | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
VFDFL3516TM | 2 hp | 145TC | 1740 RPM | 1.15 | 14.17" | 3535LC | 99 | 230V | €2,127.72 | |
|
VFDFL3612TM | 5 hp | 184TC | - | 1 | 18.04" | 3646LC | 88 | 230V | €3,519.65 |
