BALDOR MOTOR VEBM3554T-D General Unit Handling Motor, 230/460V, 1800 RPM, 60 Hz, 1.5 hp, TEFC, 145TC Frame
Get it by Tuesday, Dec 23
10.00% off
€3,418.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 4.5-4.4/2.2A |
| Amps @ 208v | 4.5A |
| Application | Brake Motor |
| Base Type | Not Applicable |
| Bearing Type | Sealed |
| Brake Model/series | Series D |
| Brake Rating | 10 lbs.-ft. |
| Break-down Torque | 19.2 lbs.-ft. |
| Cc Number | CC010A |
| Class | Stock |
| Code | L |
| Conduit Box Material | Steel |
| Conduit Box Position | F3 |
| Design Code | B |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Design | TEFC |
| Frame | 145TC |
| Frame Material | Steel |
| Frame Size | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 2.3A |
| Full Load Torque | 4.47 lbs.-ft. |
| Full Load Torque | 4.47 ft.-lbs. |
| Hp | 1 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Code | Inverter Ready |
| Inverter Rated | Yes |
| Lead | 9#18 |
| Length Less Shaft | 15 1/16" |
| Line-line Res. @ 25° C | 10.66 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 13.4 lbs.-ft. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Brake Motor |
| Motor Bearings | Sealed |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Vertical |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Standard |
| Motor Shaft Rotation | CCW |
| Mounting Type | Face |
| Multiplier | L1 |
| Nameplate Rpm | 1770 RPM |
| Nema/iec | NEMA |
| No Load Amps | 1.37A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Overall Length | 17.19" |
| Phase | 3 |
| Power Factor | 72 |
| Product Datasheet | baldor-motor-vebm3554t-d.pdf |
| Proprietary | No |
| Pull-up Torque | 9.4 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | D |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Series | Series D |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Length | 2 3/25" |
| Shaft Rotation | Reversible |
| Standards | Ce, Curuseev, Nema Premium, Rohs Compliant, Ukca, Weee |
| Start Configuration | DOL |
| Starting Amps | 18.3A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise | 53°C |
| Temp. Rise @ Rated Load | 44°C |
| Temp. Rise @ S. F. Load | 53°C |
| Thermal Protection | None |
| Type | 3526M |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 26.1 |
| Ship height (cm) | 32.55 |
| Ship length (cm) | 58.1 |
| Ship width (cm) | 31.12 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- SUPERSEDES BALDOR - VBM3554T-D
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 13.4 LB-FT
- Nameplate No.: NP2105L
- Pull-Up Torque: 9.4 LB-FT
- Starting Current: 18.3 Amps
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Rpm Range | Motor Application | Insulation Class | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

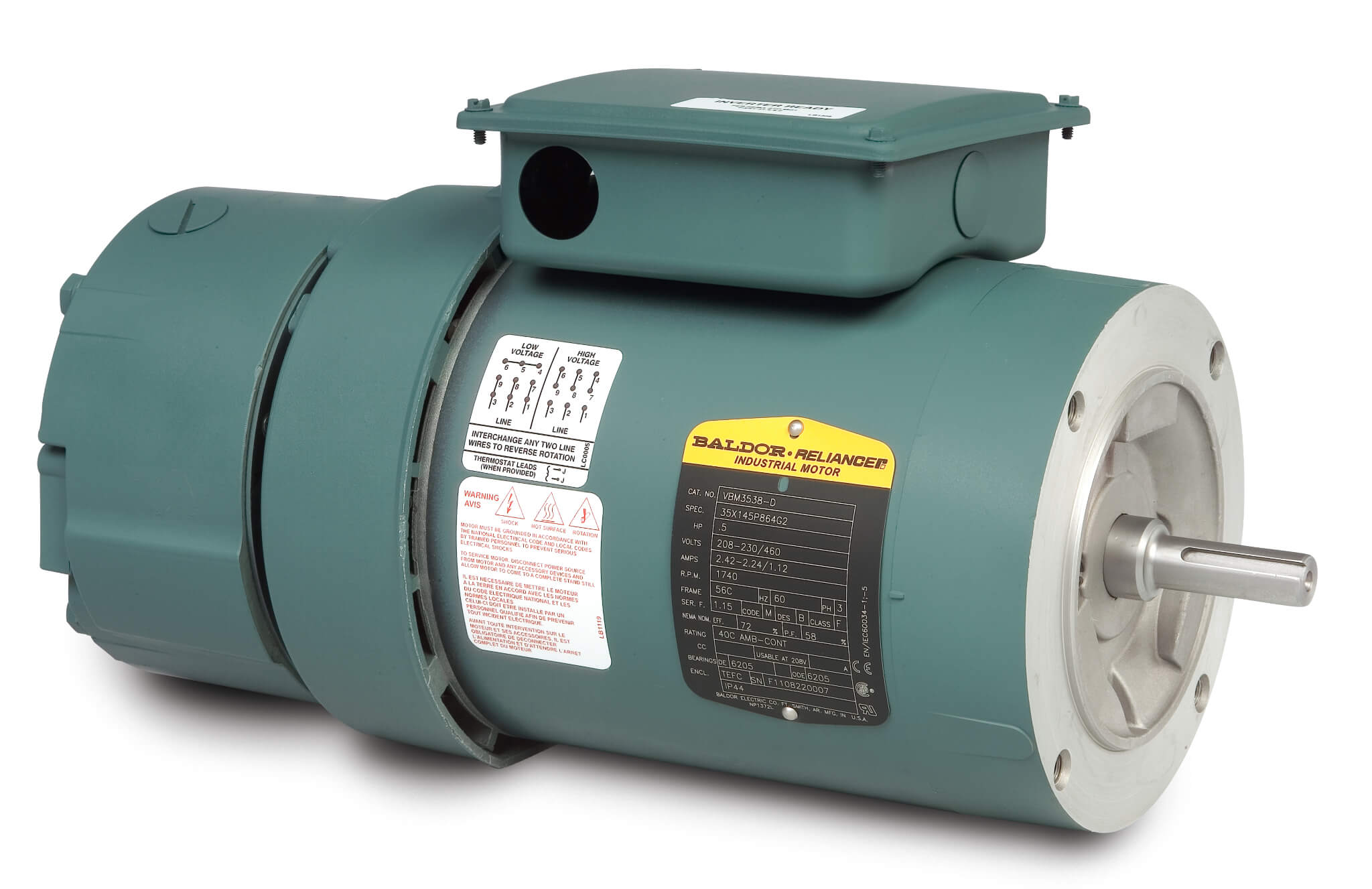

VBM3538-D | 208-230/460V | 1/2 hp | 1740 RPM | 56C | - | - | Class F | 63 | €1,935.86 | |
|
VBM3542-D | 208-230/460V | 3/4 hp | 1750 RPM | 56C | - | - | Class F | 74 | €2,009.69 | |
 |

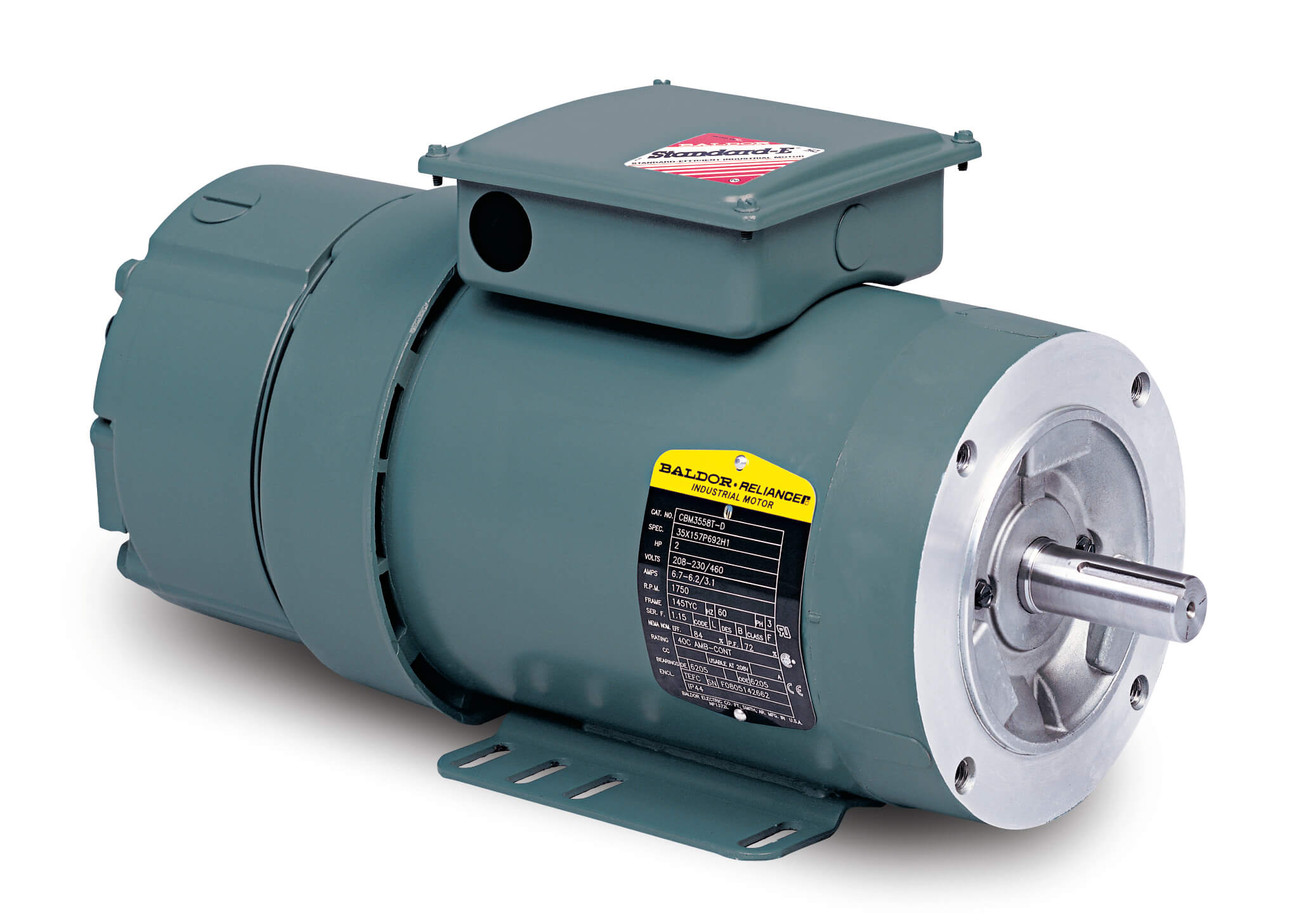

VBNM3538-D | 208-230/460-480V | 1/2 hp | 1800 RPM | 56C | 1700-1800 RPM | - | Class F | 63 | €1,916.31 | |
|
VBNM3542-D | 208-230/460V | 3/4 hp | 1750 RPM | 56C | - | - | Class F | 74 | €2,056.07 | |
|
VEBM3542-D | 208-230/460V | 3/4 hp | 1765 RPM | 56C | 1700-1800 RPM | - | Class F | 74 | €2,205.65 | |
|
VEBM3546-D | 208-230/460V | 1 hp | 1760 RPM | 56C | - | - | Class F | 69 | €2,294.62 | |
|
VEBM3546T-D | 208-230/460V | 1 hp | 1760 RPM | 143TC | 1701-1800 RPM | - | Class F | 69 | €3,889.08 |
