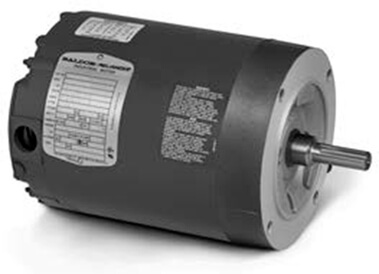

BALDOR MOTOR VAOM3560 Yoke/pedestal Fan Motor, 208-230/460V, 900 RPM, 60 Hz, 0.5 hp, TEAO, 56C Frame
Get it by Friday, Dec 19
€1,048.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps @ Voltage | 1.6A @ 460V, 3.2A @ 230V, 3.4A @ 208V |
| Amps @ Volts | 3.4A @ 208V, 3.2A @ 230V, 1.6A @ 460V |
| Auxillary Box | No Auxillary Box |
| Base Type | Not Applicable |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Bearing Type | Ball |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Efficiency @ 100% Load | 64% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | TEAO |
| Feedback Device | NO FEEDBACK |
| Frame | 56C |
| Frame Material | Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Front Face Code | Terminal Panel |
| Full Load Amps | 3.4A @ 208V, 3.2A @ 230V, 1.6A @ 460V |
| Grease Type | Polyrex EM |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 1.6A |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Inverter Code | Not Inverter |
| Kva Code | M |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Terminal Panel |
| Motor Lead Quantity/wire Size | 9 @ 18 AWG |
| Motor Lead Termination | Flying Leads |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | 3528M |
| Mounting Type | C Face, Footless |
| Nema/iec | NEMA |
| No. Of Poles | 8 |
| No. Of Speeds | 1 |
| Output @ Frequency | 1/2 hp @ 60 Hz |
| Overall Length | 12.68" |
| Phase | 3 |
| Power Factor | 57 |
| Product Datasheet | baldor-motor-vaom3560.pdf |
| Product Family | General Purpose |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | C Face |
| Pulley Shaft Indicator | Standard |
| Rpm | 850 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed Type | 1 |
| Starting Method | Direct On Line |
| Synchronous Rpm | 900 RPM |
| Synchronous Rpm @ Frequency | 900 RPM @ 60 Hz |
| Synchronous Speed | 900 RPM |
| Thermal Protection | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 208-230/460V |
| Voltage @ Frequency | 208V @ 60 Hz, 230V @ 60 Hz, 460V @ 60 Hz |
| Xp Division | Not Applicable |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 64.00%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Not inverter
- KVA Code: M
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: Terminal Panel
- Motor Lead Quantity/Wire Size: 9 @ 18 AWG
- Product Family: General Purpose
- Pulley End Bearing Type: Sealed Bearing
- Pulley Face Code: C-Face
- Pulley Shaft Indicator: Standard
- Shaft Diameter: 0.625 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
Documentation:
Product Variants
| Product | Model | Hp | Motor Type | Insulation Class | Overall Length | Power Factor | Kva Code | Voltage | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
VAOM3527 | 1 hp | 3546M | Class F | 14.93" | 55 | G | 208-230/460V | 3 | €1,243.87 |
