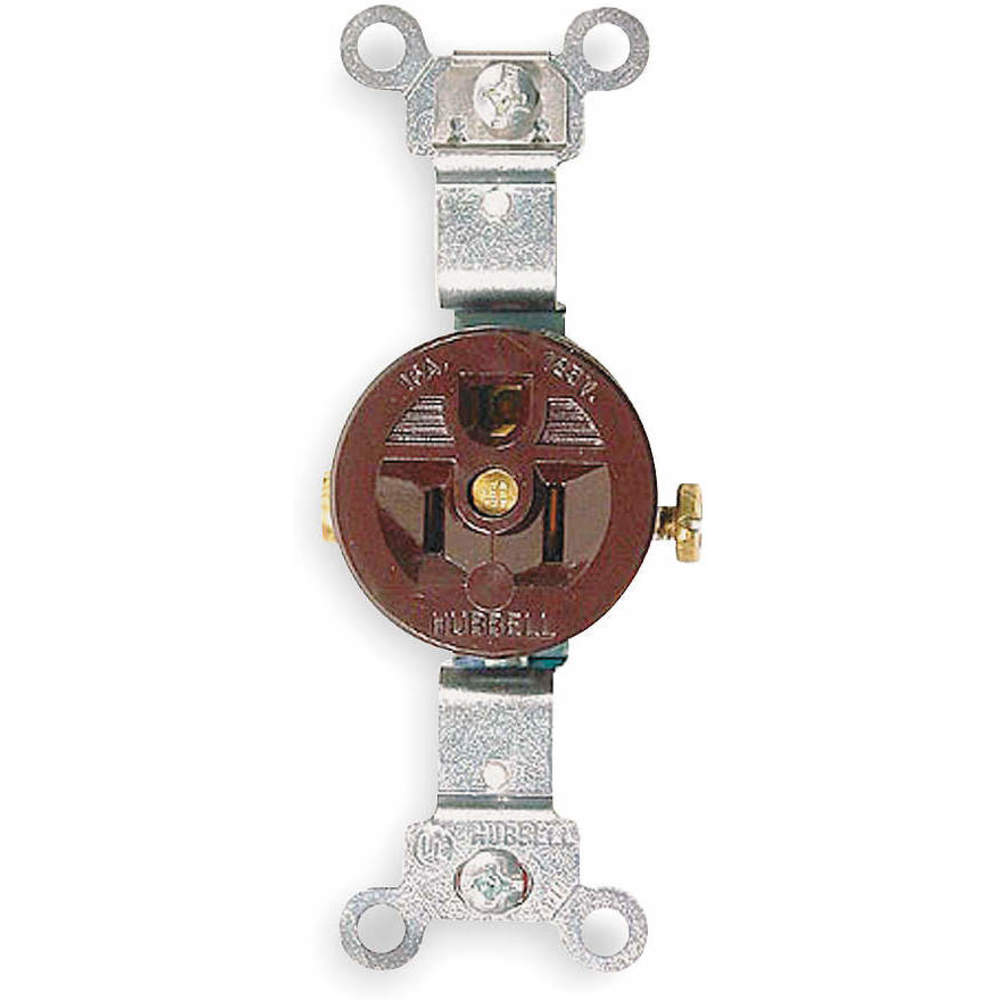

HUBBELL WIRING DEVICE-KELLEMS HBL5251 Straight Receptacle, 15A 125V, 5-15R, Brown
Item: AE3CEYModel: HBL5251Cross Ref: 5C799
7 In Stock
Ships within 2 days via
10.00% off
€31.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Application Environment | Industrial Environments |
| Color | Brown |
| Connection Orientation | Straight |
| Connectivity | Side Wired |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Extra Heavy |
| Face Diameter | 1.4" |
| Gfci | No |
| Grounding | Grounded |
| Height | 1.13" |
| Horsepower Rating | 1/2 hp |
| Housing Color | Brown |
| Housing Material | PBT |
| Includes | Grounding Clip, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Length | 3 7/25" |
| Material | Composite, Thermoplastic |
| Max. Hp | 1/2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Single |
| Overall Depth | 1.1" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Prod. Description | Back And Side Wired |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5251.pdf |
| Receptacle Type | Single |
| Signal & Power Protection | Standard Protection |
| Standards | Csa Certified C22.2 No. 42, Federal Specification W-C-596, Nema Wd-6, Ul E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Weather Resistant | No |
| Width | 1.39" |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Side |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.87 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 3.53 |
| HS code | 8536490080 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Housing Color | Color | Wire Size | Nema Rating | Material | Height | Amps | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

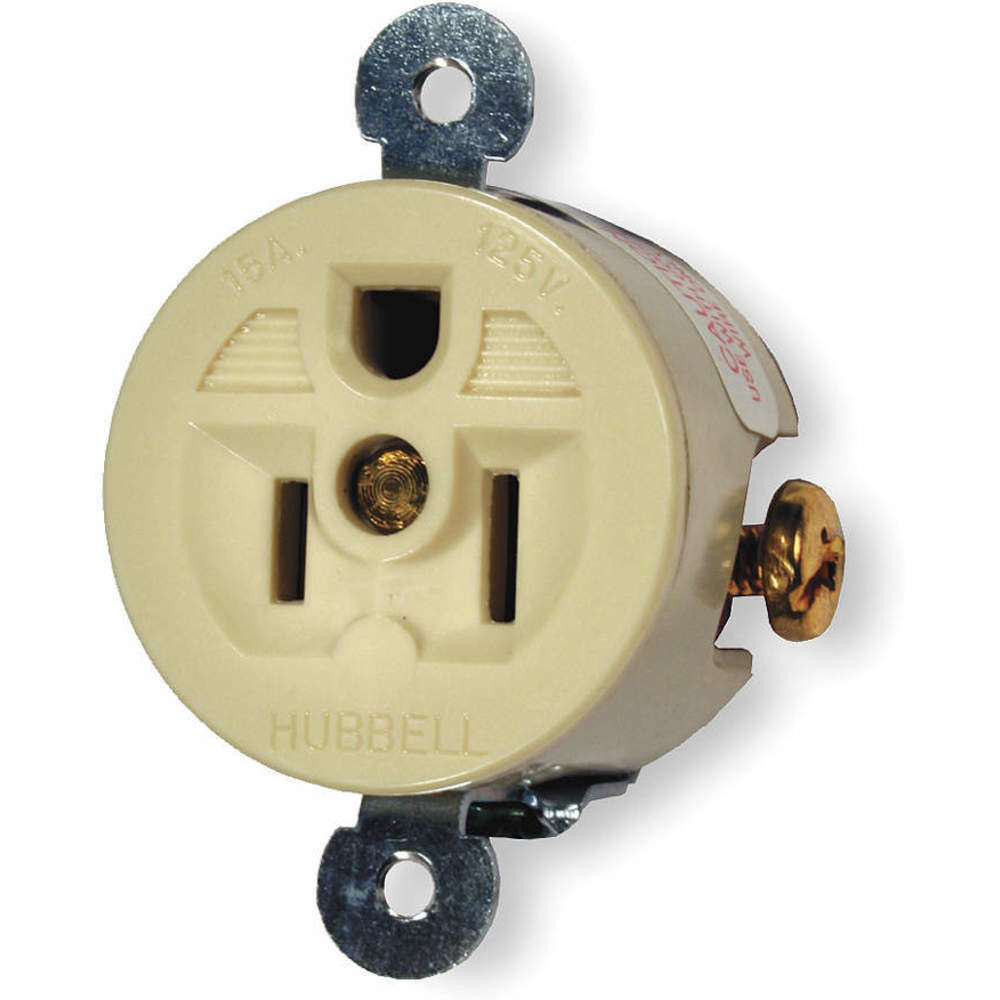

HBL5258I | Ivory | Ivory | 14 AWG to 10 AWG | NEMA 5-15R | Melamine, Nylon | 1 3/25" | 15A | PBT | €36.36 | |
 |

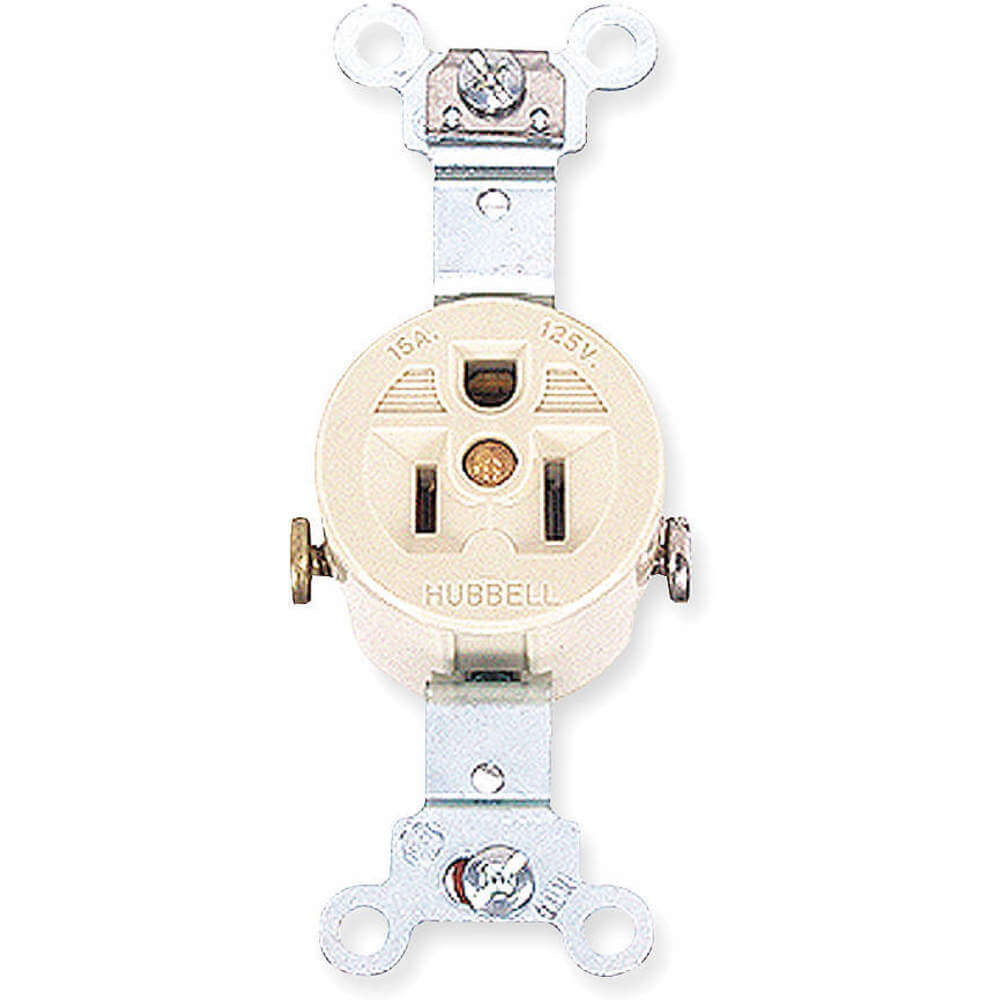

HBL5251I | Ivory | Ivory | - | - | Nylon | - | - | Thermoplastic | €33.23 | |
 |

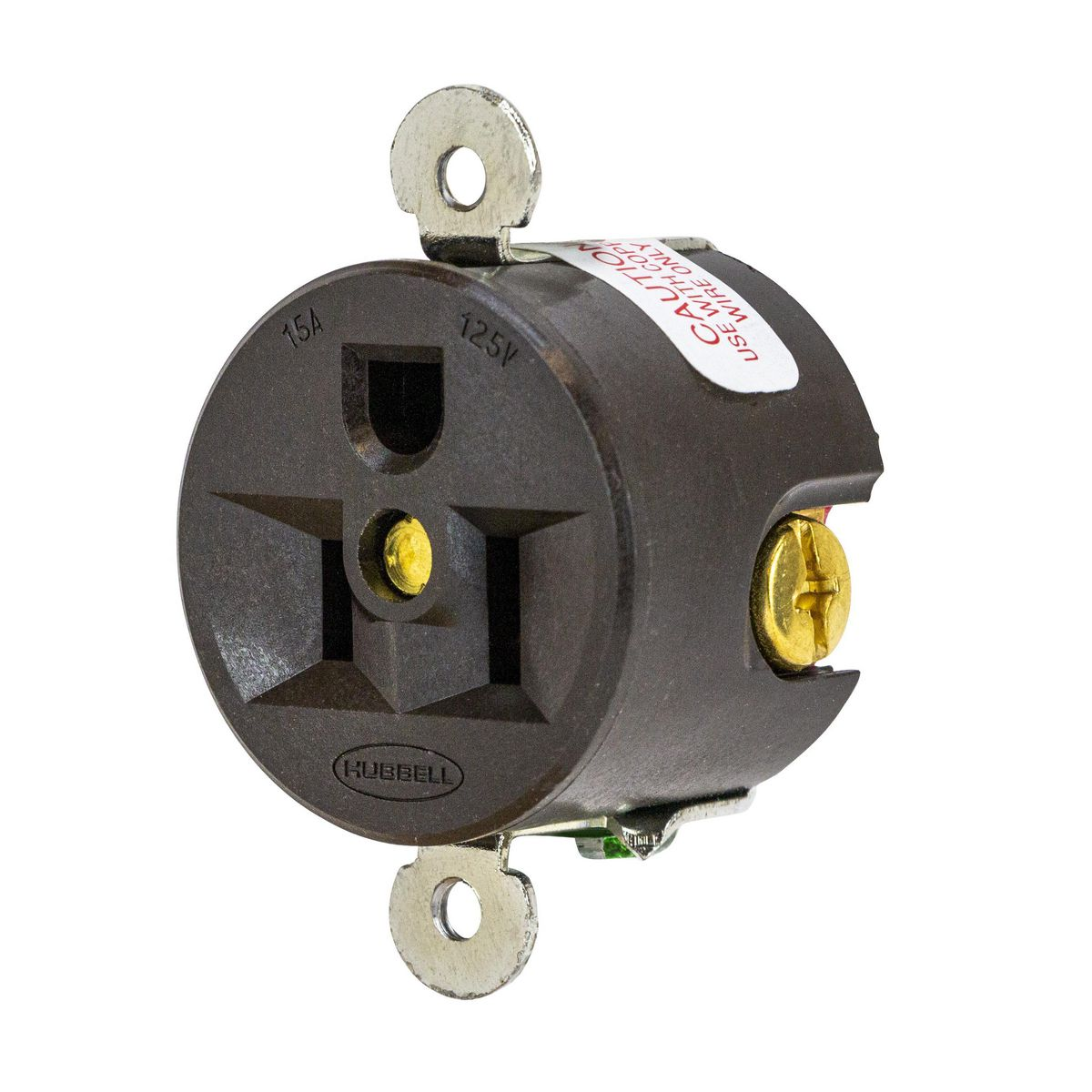

HBL5258 | - | Brown | 14 AWG to 10 AWG | NEMA 5-15R | - | 1 3/25" | 15A | - | €29.21 | |
 |

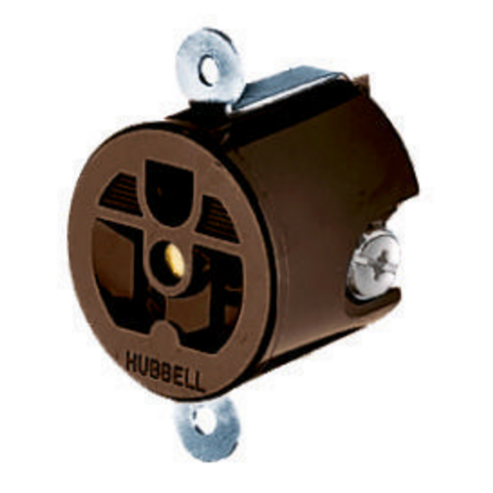

HBL5358 | - | Brown | 12 AWG to 10 AWG | NEMA 5-20R | Thermoplastic | 1 3/25" | 20A | - | €37.49 |
